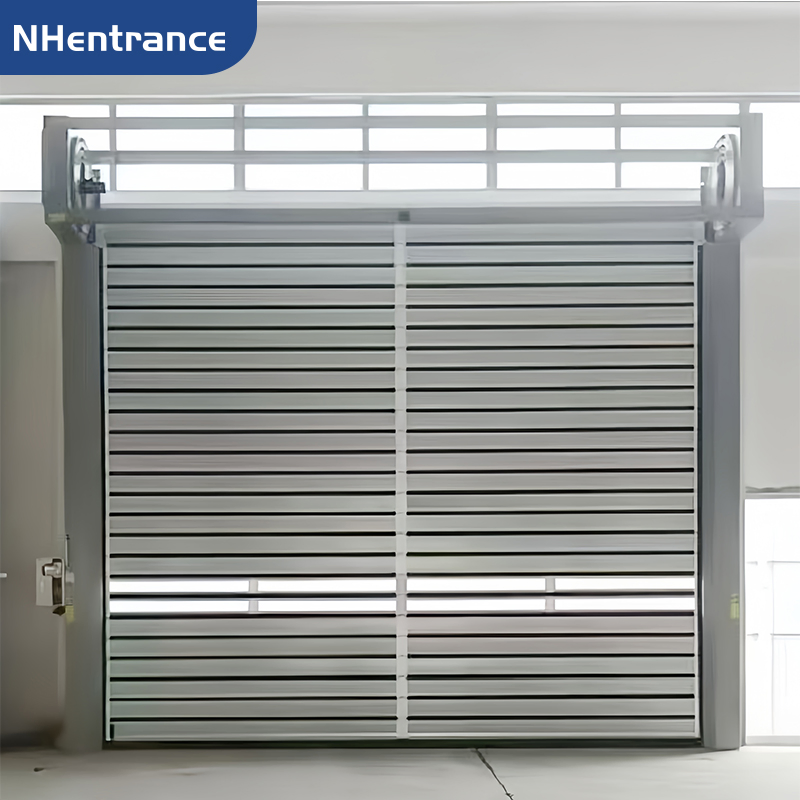

Armor Door
Armor Door
| Model NO. | High Speed Spiral Door |
| Material | Aluminum Alloy |
| Type | Rolling |
| Open Style | Rolling |

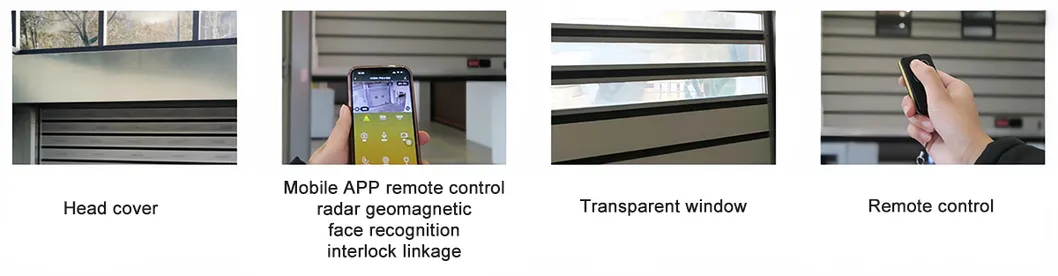

| Opening Type | With Remote Control |
| Special Function | Security |

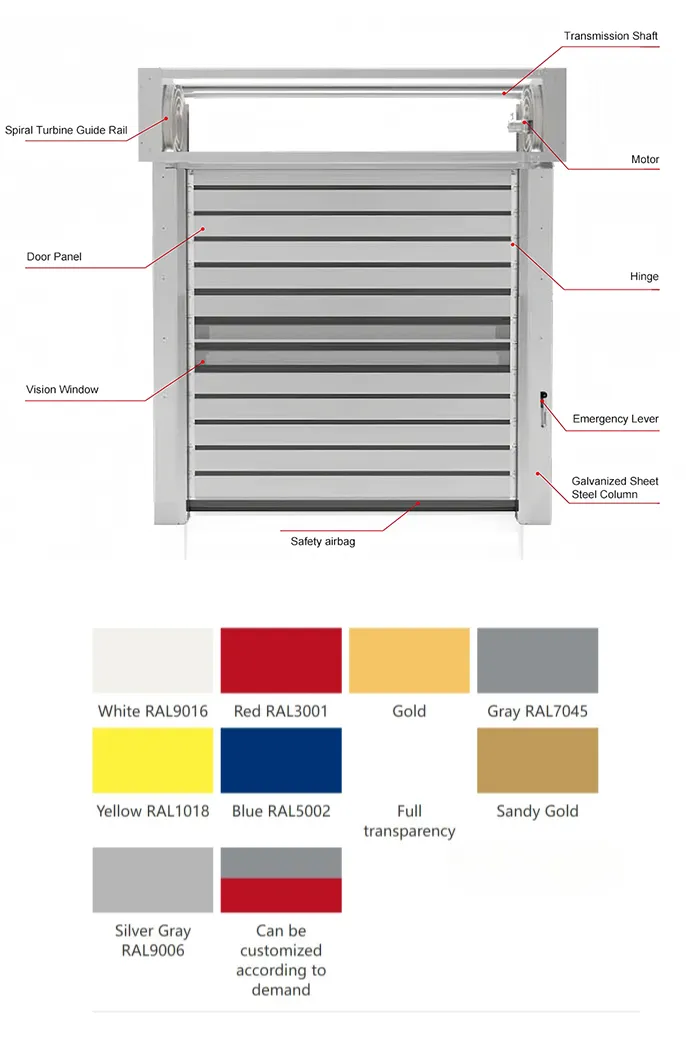

| Color | White, Silver, Blue, Red, Yellow, Coffee |
| Certification | ISO9001, CE |
| Opening Speed | up to 2.5m/S |
| Wind Resistance | 12 Wind (Refer to The Size of The Door) |
| Maximum Size | 8000mm X 9000mm |
| Production Capacity | 2000 Sets/Month |
Set fast, energy-saving, sealed, wind-resistant, environmentally friendly in one of the new metal industrial doors, has a high degree of reliability and practicality, its operating speed is more than 6 times that of the industrial sliding door, by virtue of the efficiency of the work, the high speed spiral door is gradually replacing the industrial sliding door.

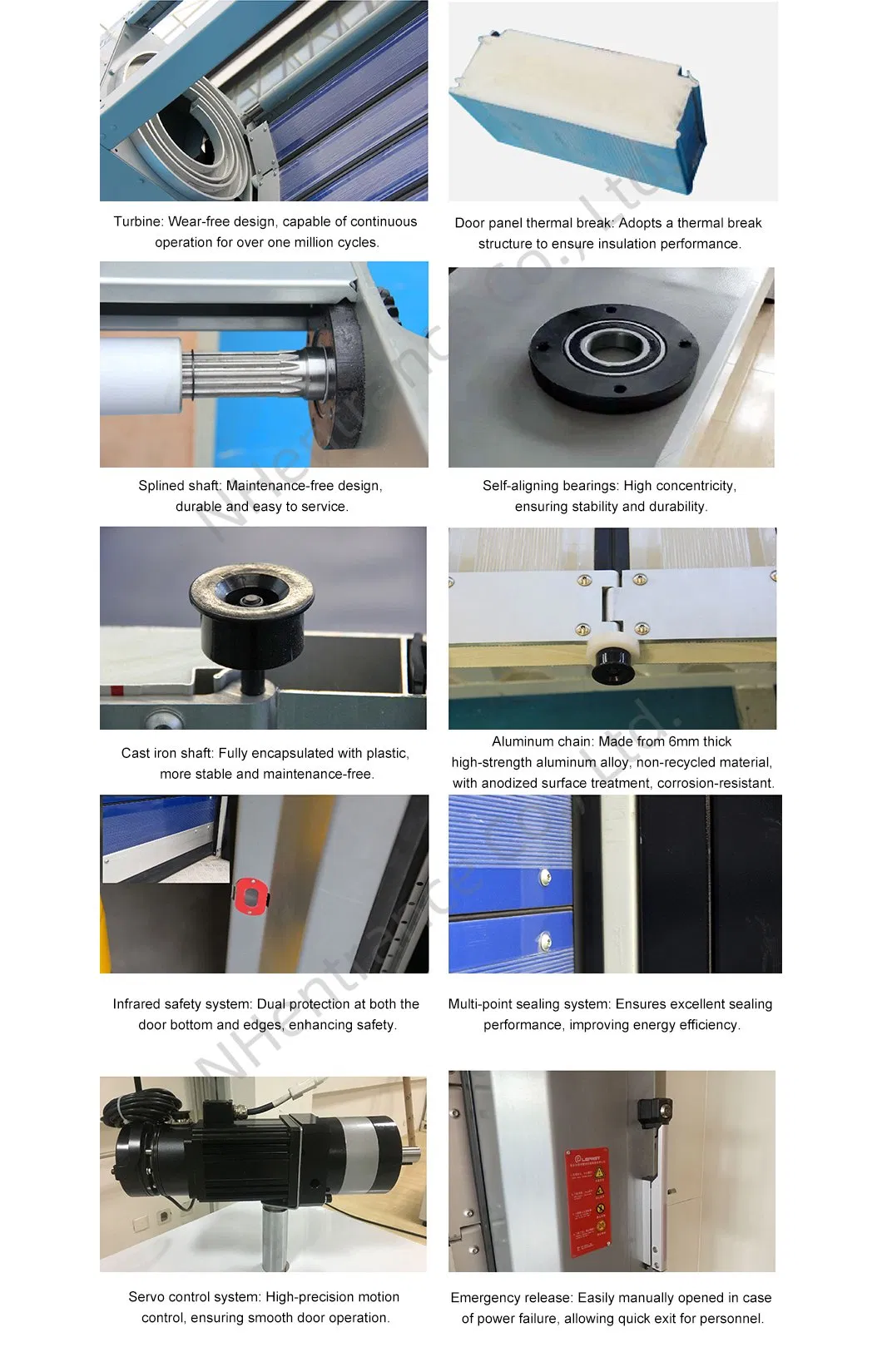

The door plate is produced by a large-scale assembly line, filled with polyurethane industrial heat preservation material inside the door plate, and the bridge-breaking design can isolate the indoor and outdoor temperature loss, which can effectively save energy. The two ends are connected by hinges, and the door panels are connected by double side sealing strips, which ensures the sealing and also effectively fights against the strong convection wind pressure.
Turbo high speed spiral door can prevent the intrusion of outsiders and at the same time can withstand weather changes, can isolate the indoor and outdoor air convection, is used in frequent access, and is the ideal choice for industrial energy saving and reduced consumption.
| Speed | Up to 2.5m/s (98.43 inches/second) with servo drive. Maximum speed depends on door size. |
| Size | Min: 1000mm x 1000mm; Max: 8000mm x 9000mm |
| Panel Material | 0.7mm thick aluminum plate; Foaming density 45kg/m3; Thickness 43mm or 80mm; Height 220mm per panel. |

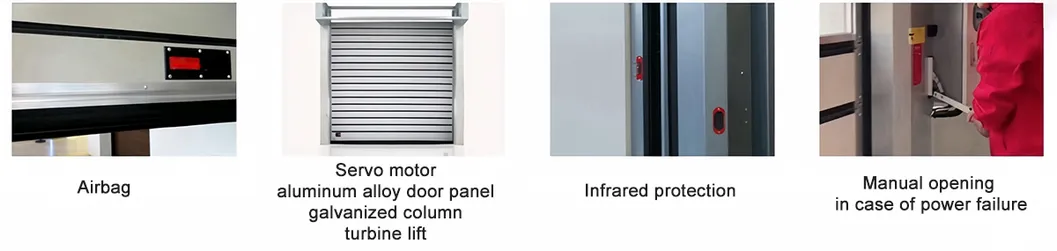

| Drive System | Servo-motor (0.75KW, 1.5KW, 2.2KW) with gearbox and brake. |
| Electrical Requirements | Standard: 220V/1PH/50/60Hz; Oversize: 380V/3PH/50/60Hz |

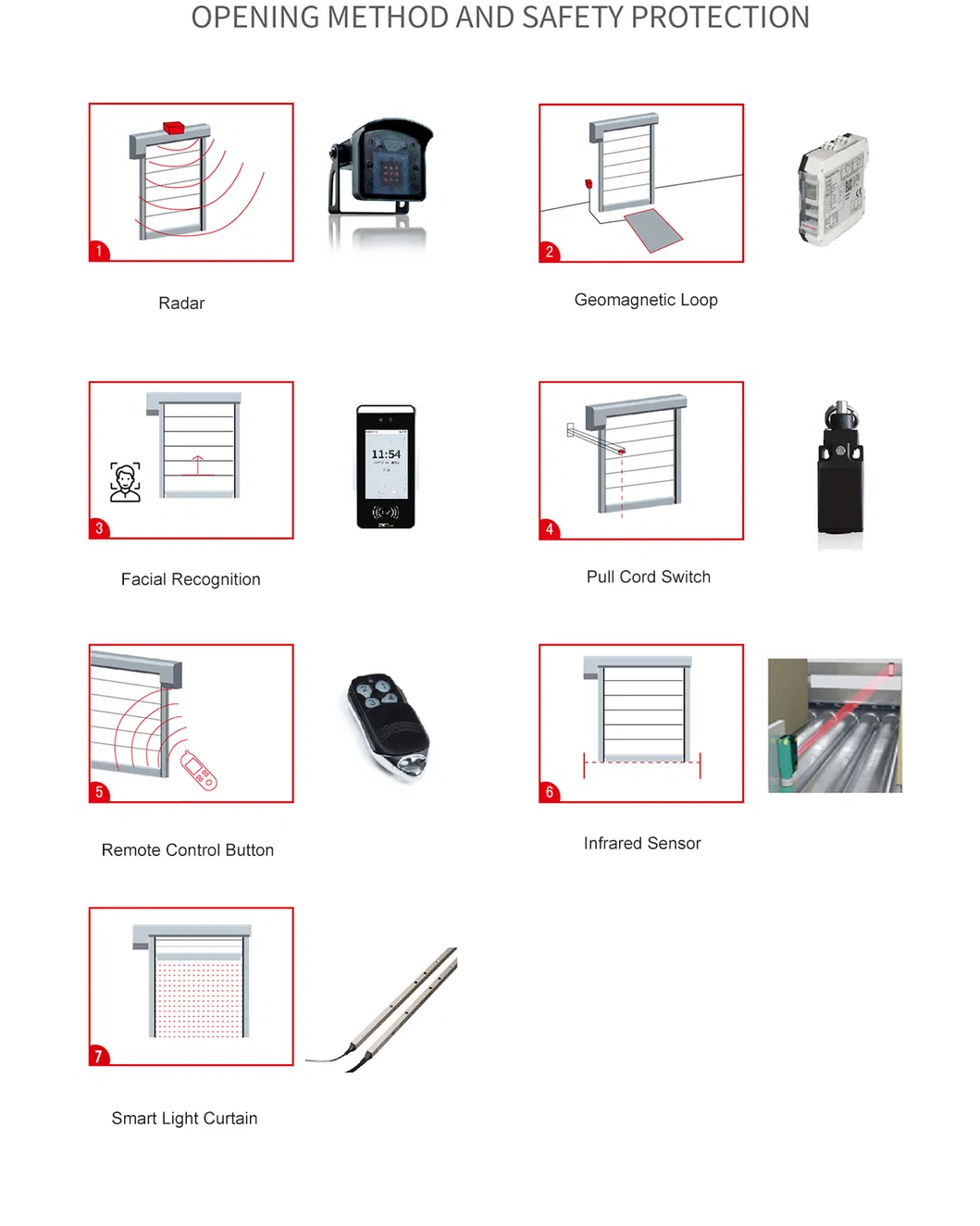

| Safety Features | Photoelectric sensors, wireless airbags, and optional light curtain. |

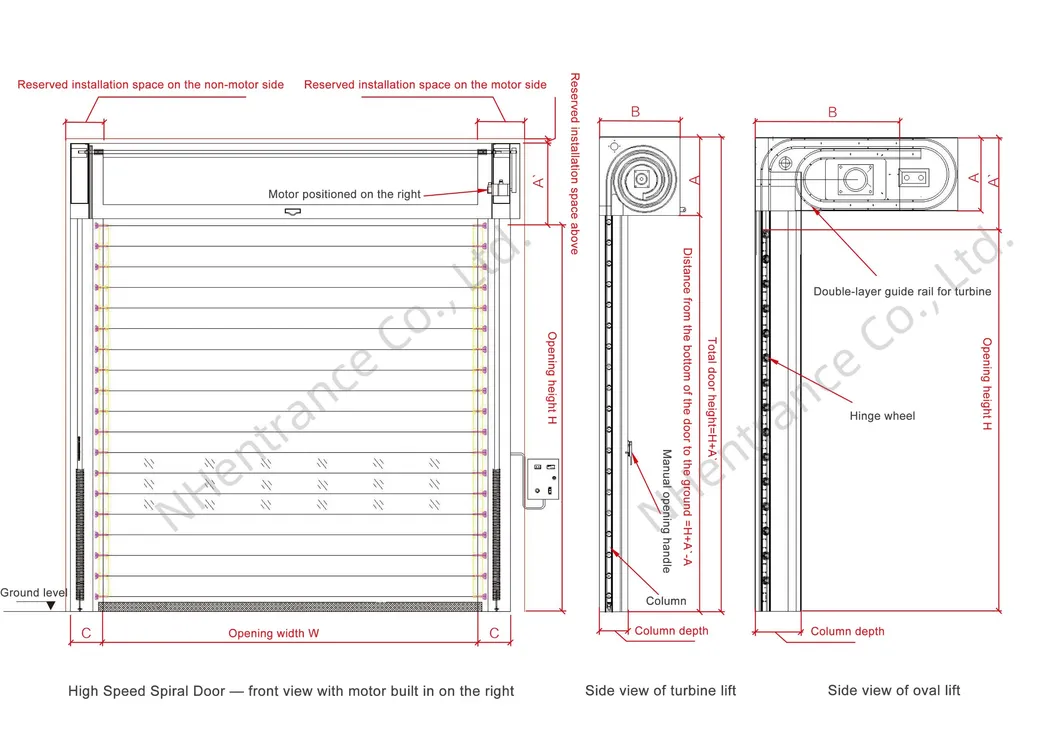

| Lift Style | Round Spiral, Oval Spiral |
The company specializes in high-performance industrial doors, garage doors, and loading dock systems. With over two decades of expertise, we operate advanced production facilities ensuring large-scale output and meeting the demands of global markets.
Our products adhere to stringent European industry standards and have earned prestigious certifications, including the EU CE mark, international SGS, and ISO9001 Quality Management System certification. Our commitment to quality and innovation has exported products to over 30 countries and regions, including the European Union, the United States, Canada, Australia, and India.
Serving industries such as manufacturing, logistics, electronics, and food processing, we deliver tailored solutions designed to meet the diverse needs of international clients. With a dedicated R&D team, we prioritize advanced engineering, durability, and operational efficiency.
