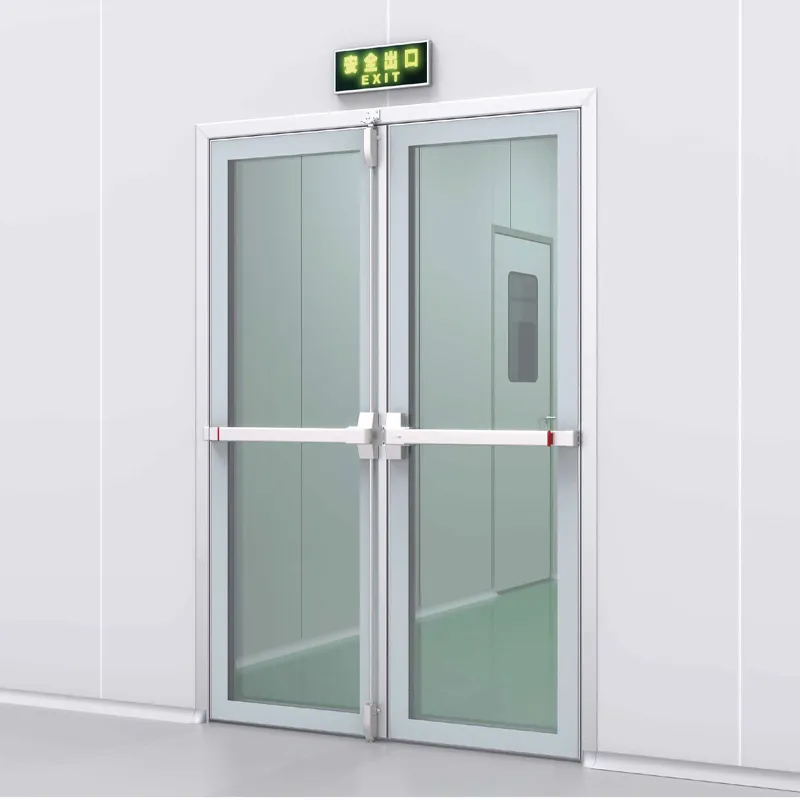

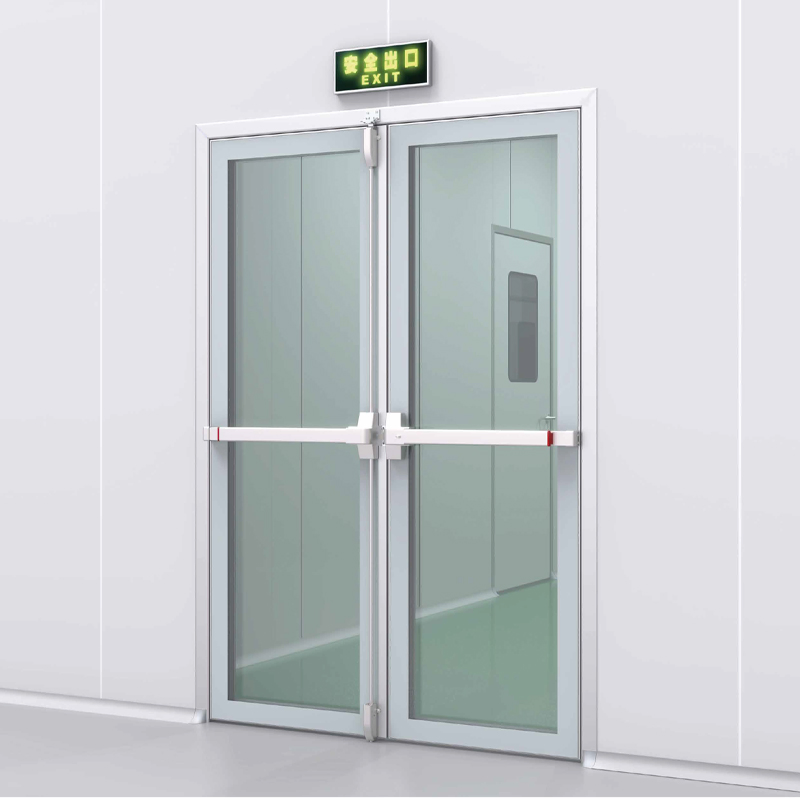

Emergency Escape Panic Device Steel Metal Glass Door Fire Rated Door

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
FRD-008
Material
Aluminum Alloy
Style
Modern
Open Style
Swing
Sound Insulation
45 dB
Screen Netting
Fiberglass
Veneer Wood
Sabelli
Position
Interior
Security Rating
B
Surface Finishing
Finished
Function
Security
Regular Size
1600*2000mm & 1800*2000mm
Assembly Required
Yes
Door Type
Double Door
Origin
China
Production Capacity
10,000 Sets Per Month
📦

Packaging & Delivery

Package Size
2200.00cm * 1200.00cm * 70.00cm
Gross Weight
100.000kg
Packing Method
Pallet Box Packing

Product Description

Core Features

  • Safety Tempered Glass: Utilizes tempered glass designed to shatter into small, obtuse-angled particles upon impact, significantly reducing the risk of injury.
  • Arc Design Corners: The entire door frame features an arc design for anti-collision protection and enhanced user safety.
  • Easy Installation: Designed for straightforward assembly with customizable sizes to meet specific project requirements.

Technical Reference

Specifications Sandwich Panel Handicraft Panel
Width of Door Hole (mm) Single: 900 | Double: 1200, 1500 Single: 900 | Double: 1200, 1500
Height of Door Hole (mm) 2100 2100
Opening Angle 0 - 170 Degrees

Type Options

Parameters Sandwich Panel Handicraft Panel
Wall Thickness (mm) 50 / 100 50
Panel Type Tempered glass (silk screen) -
Door Leaf Thickness (mm) 50 50

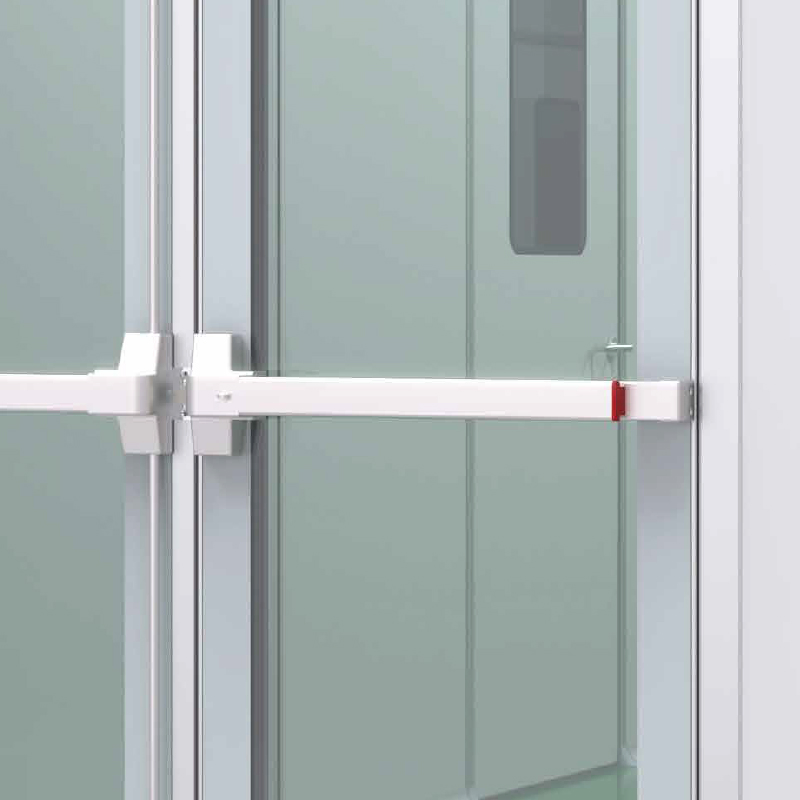

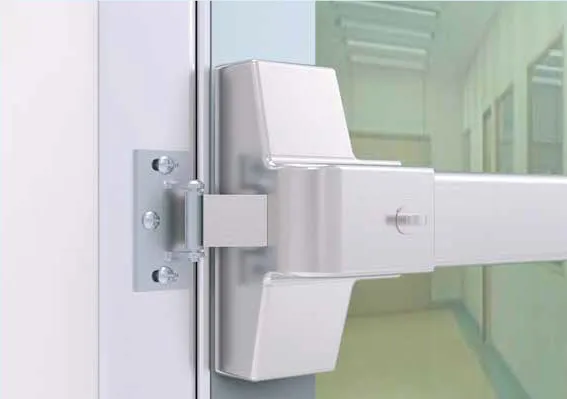

Lock Types Handle lock, Split lock, Panic bar, SUS handle -
Access Control Door closers, Interlocking, Electric swing -

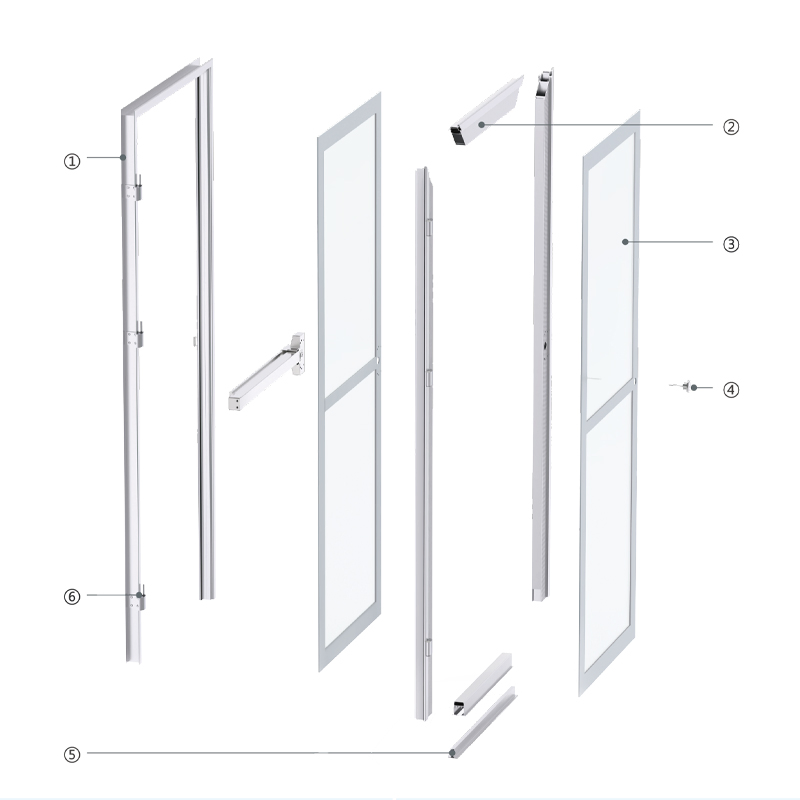

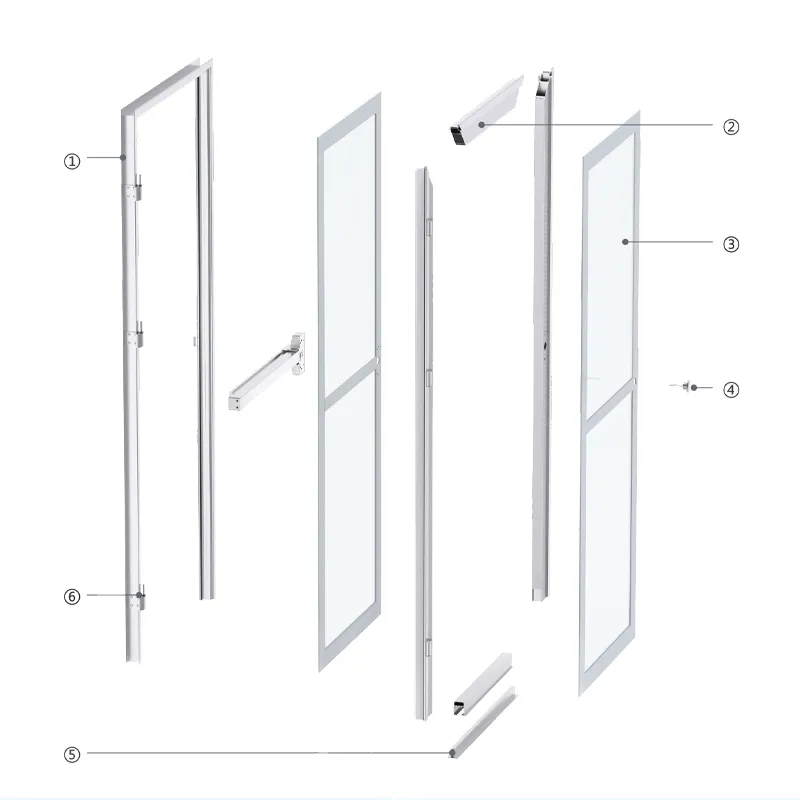

Component Details

System Specifications

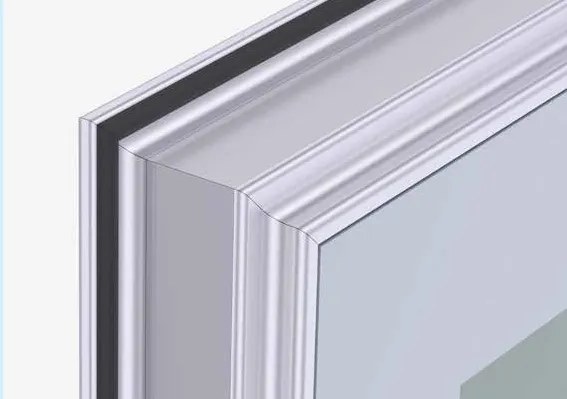

1. Frame Profile
Smooth transition aluminum alloy, anti-collision and easy to clean.
2. Leaf Profile
Flat surface aluminum alloy frame for a modern look.
3. Glass Panel
Safety tempered glass with honeycomb shatter pattern.
4. Integrated Window
Double-layer tempered glass, integrated with leaf, anti-fogging.
5. Drop Seal Set
Unique double-shrapnel design for silent operation and airtightness.
6. Hinges
Wear-resistant, no metal powder production, quiet and firm.
📷

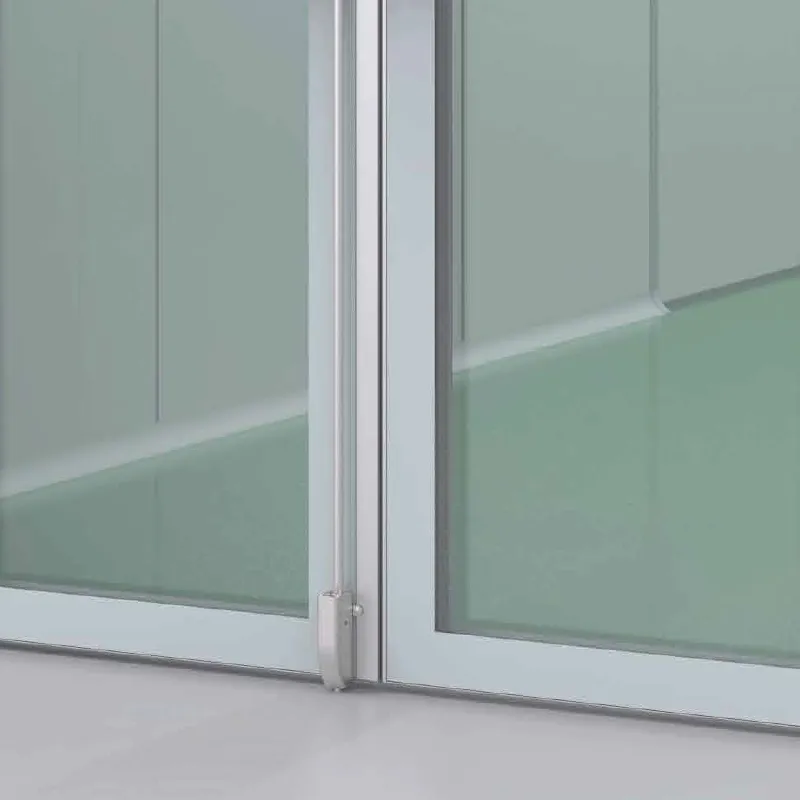

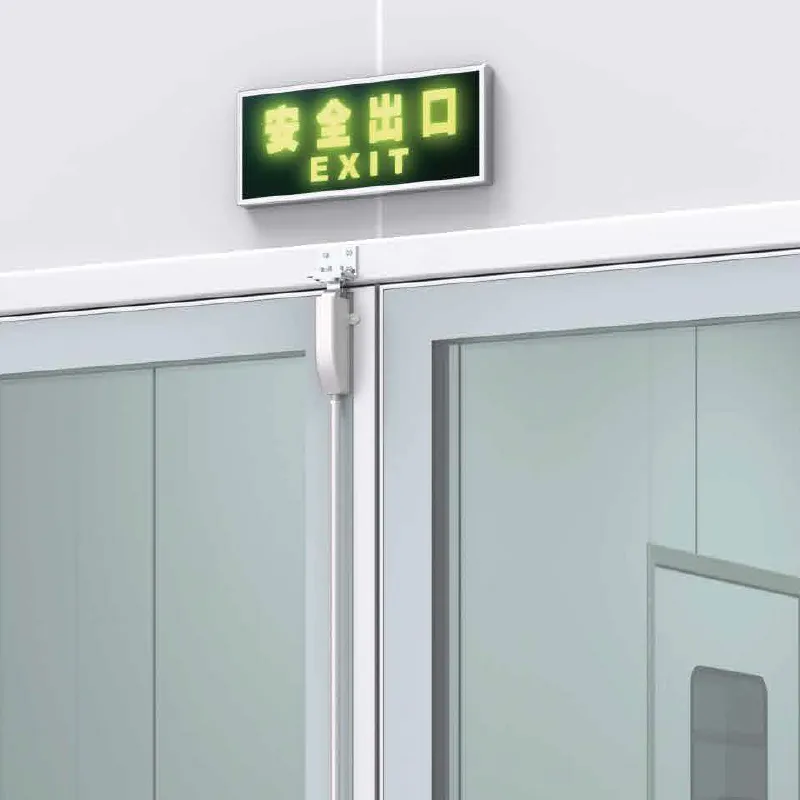

Detailed Photos

🏗

Application Projects

Frequently Asked Questions

Q1: What materials are used in the door construction? A: The doors are constructed using high-quality aluminum alloy for the frames and tempered safety glass for the panels.
Q2: Is the glass safe for high-traffic interior areas? A: Yes, it uses tempered glass that forms small, blunt particles if broken, minimizing the risk of injury. The arc design corners also provide anti-collision protection.
Q3: Can the door size be customized? A: Yes, the door size is customizable to meet various architectural requirements beyond the standard 1600*2000mm and 1800*2000mm sizes.
Q4: What is the sound insulation performance? A: These doors offer a sound insulation rating of 45 dB, making them ideal for interior environments requiring noise control.
Q5: What types of locking mechanisms are supported? A: The system supports various options including handle locks, split locks, panic bars, and SUS handles.
Q6: Does the door feature airtight sealing? A: Yes, it is equipped with a unique double-shrapnel drop seal set that provides excellent airtightness and silent operation.
