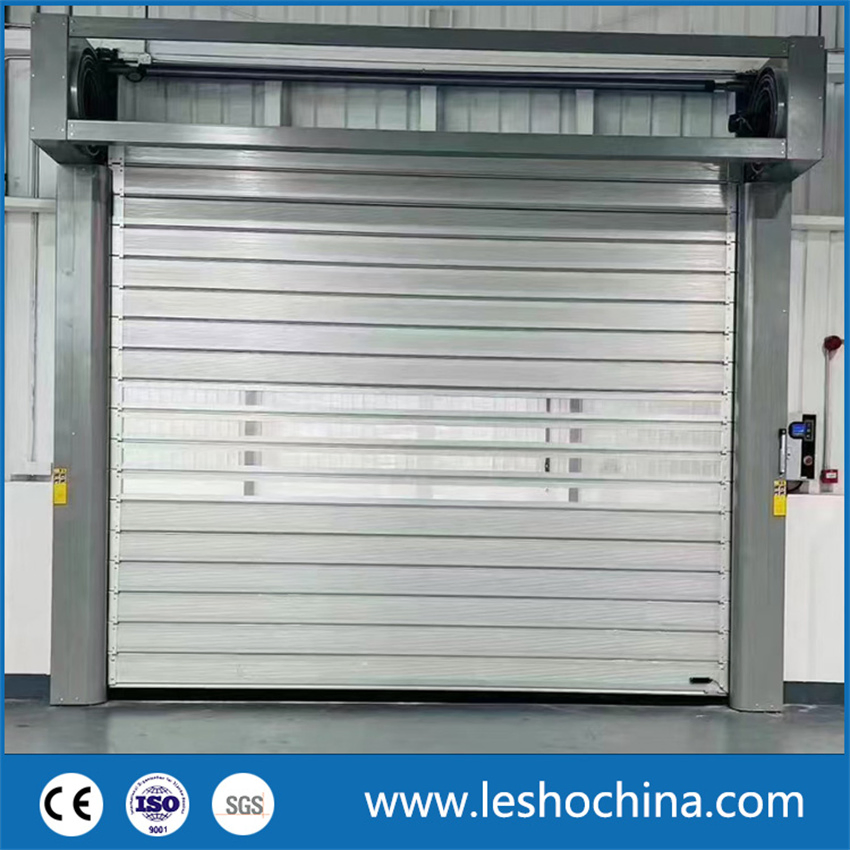

Armor Door
Armor Door

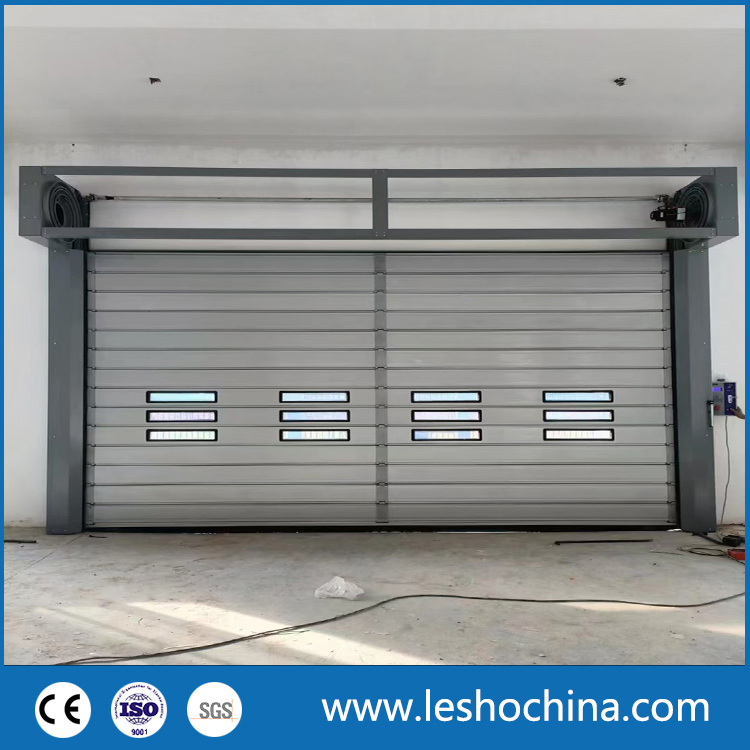

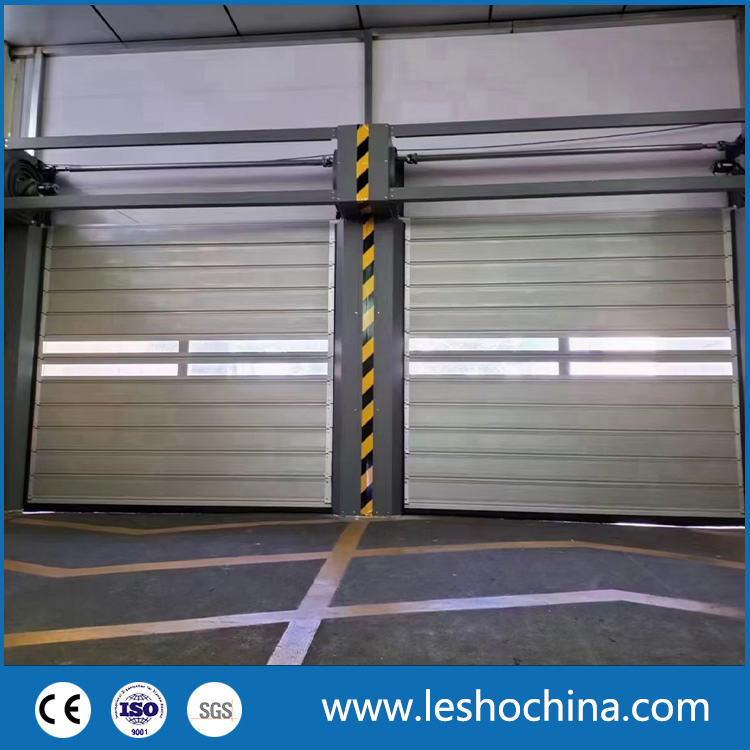

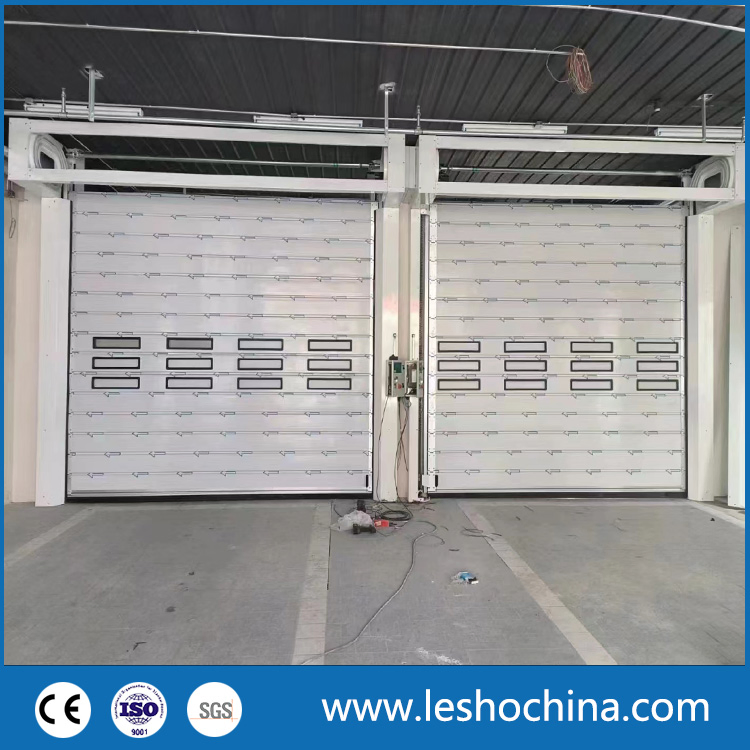

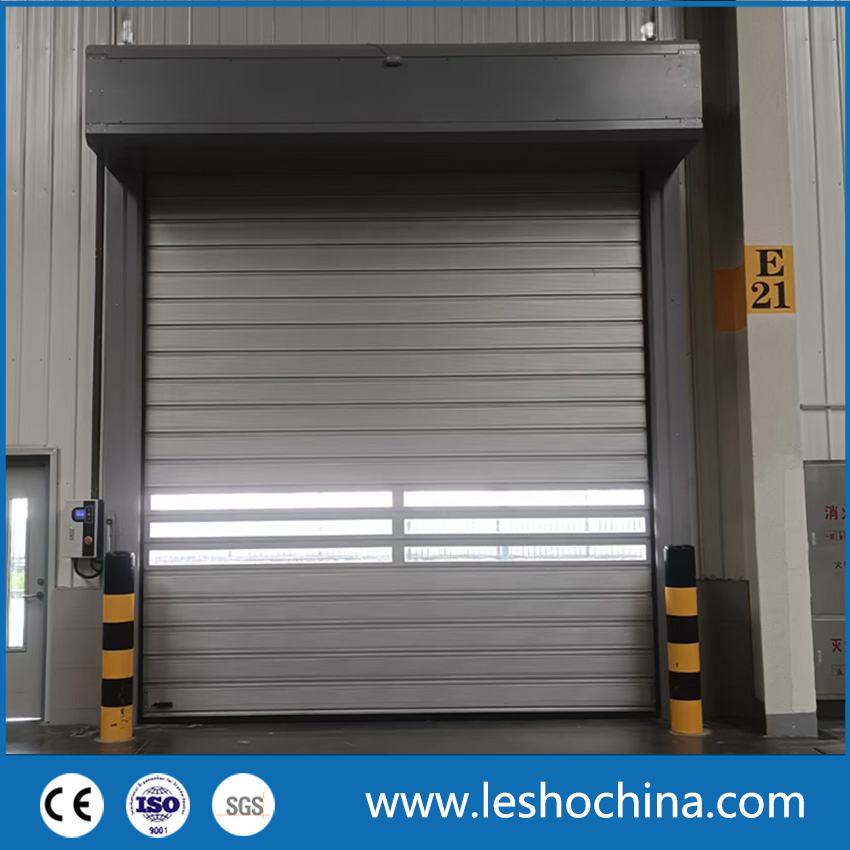

A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model. It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed.
| Max dimension | 8000mm wide * 8000mm high |
| Wind resistance | beaufort scale 12 (35m/s) |
| Max opening speed | 2.0m/s |
| Max closing speed | 1.0m/s |
| Sound insulation factor | R=25dB |
| Design Service Life | 20 years |
| Available colors | Grey, Blue, White, Aluminum, Golden |

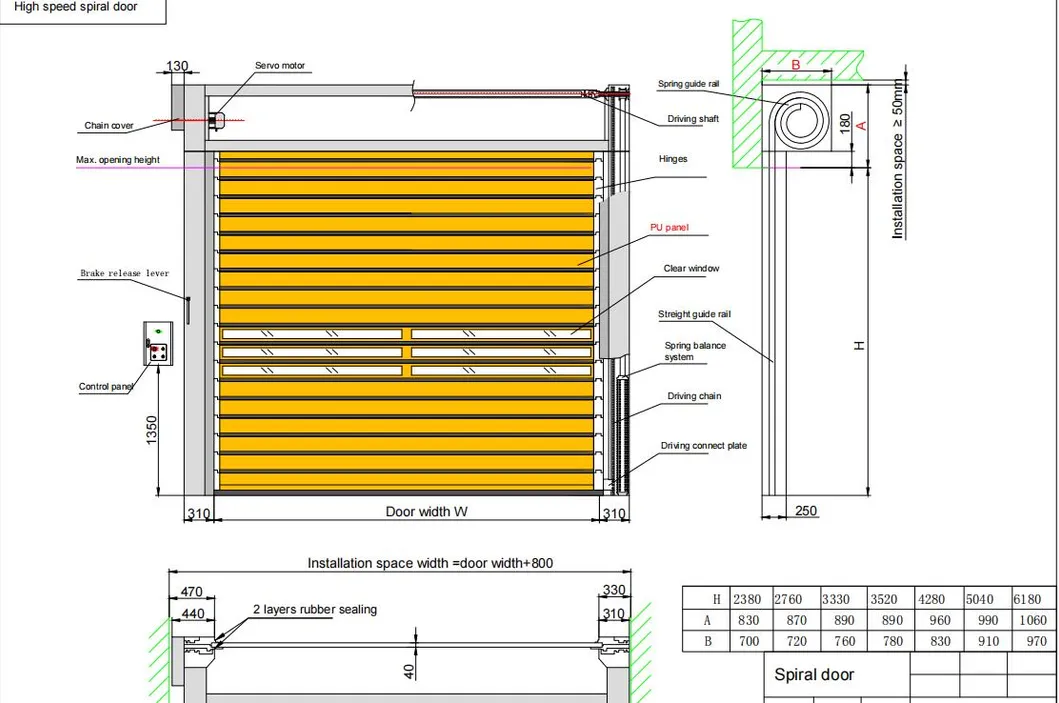

Accurate shop drawing to show the door dimension clearly, making sure there is no misunderstanding of the door size.

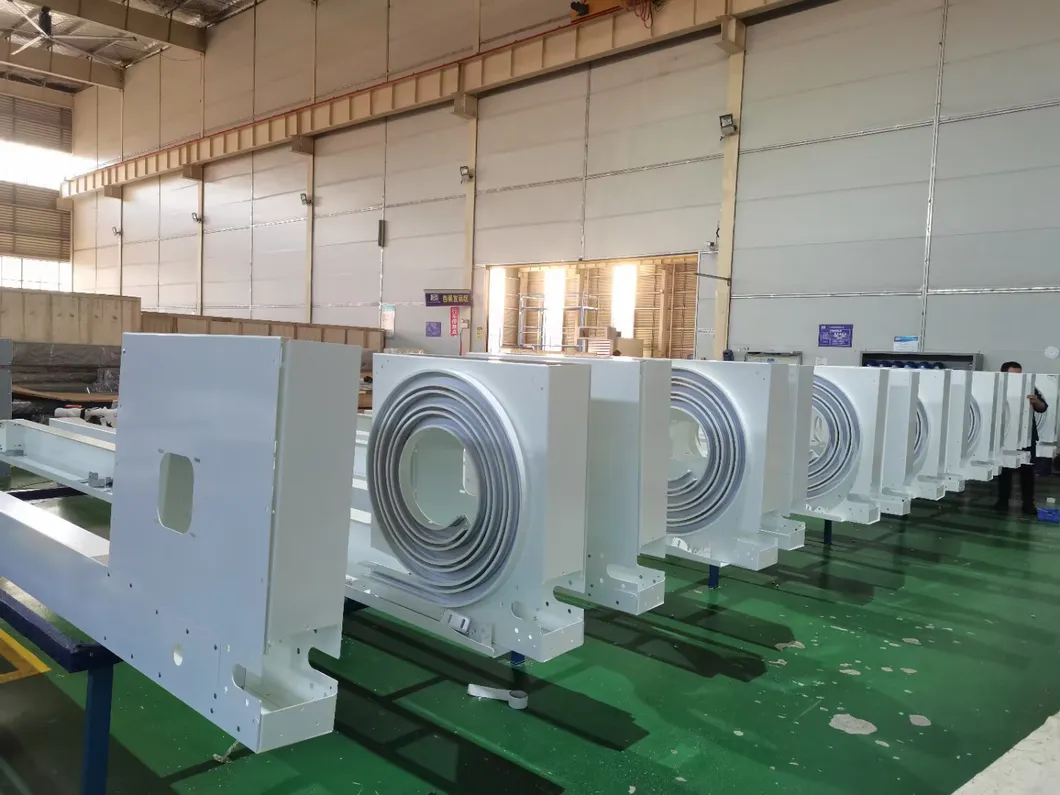

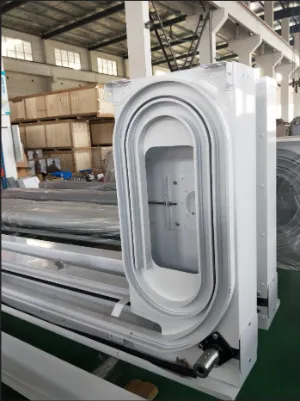

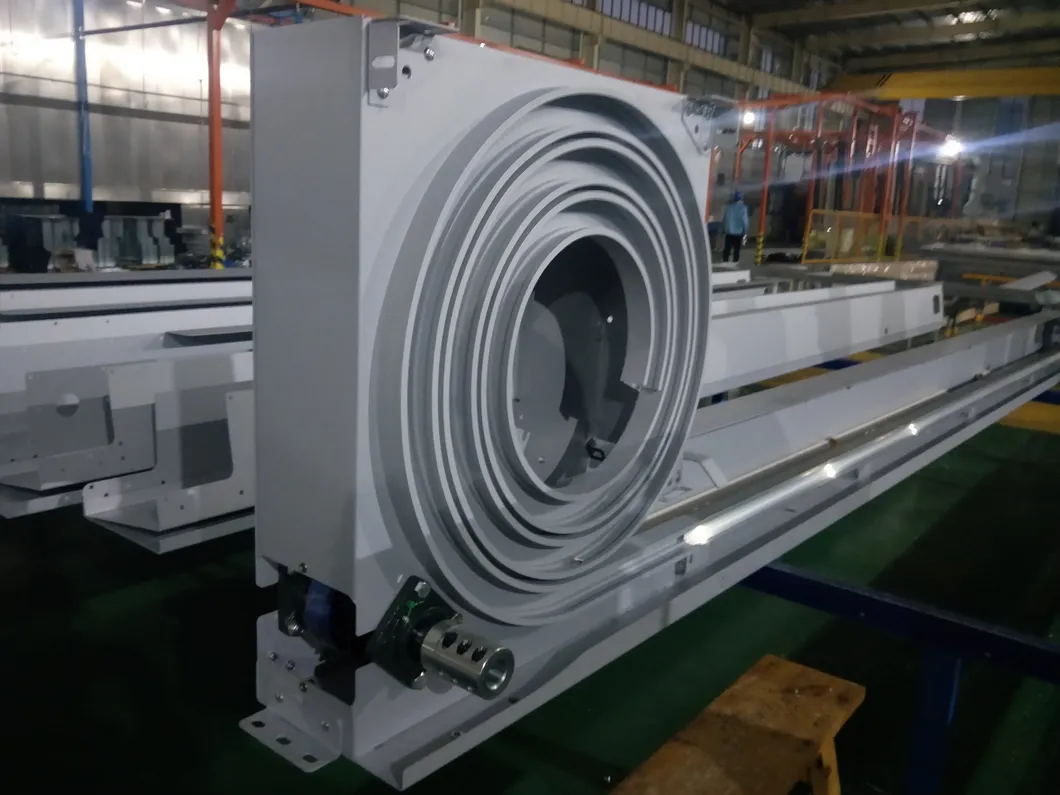

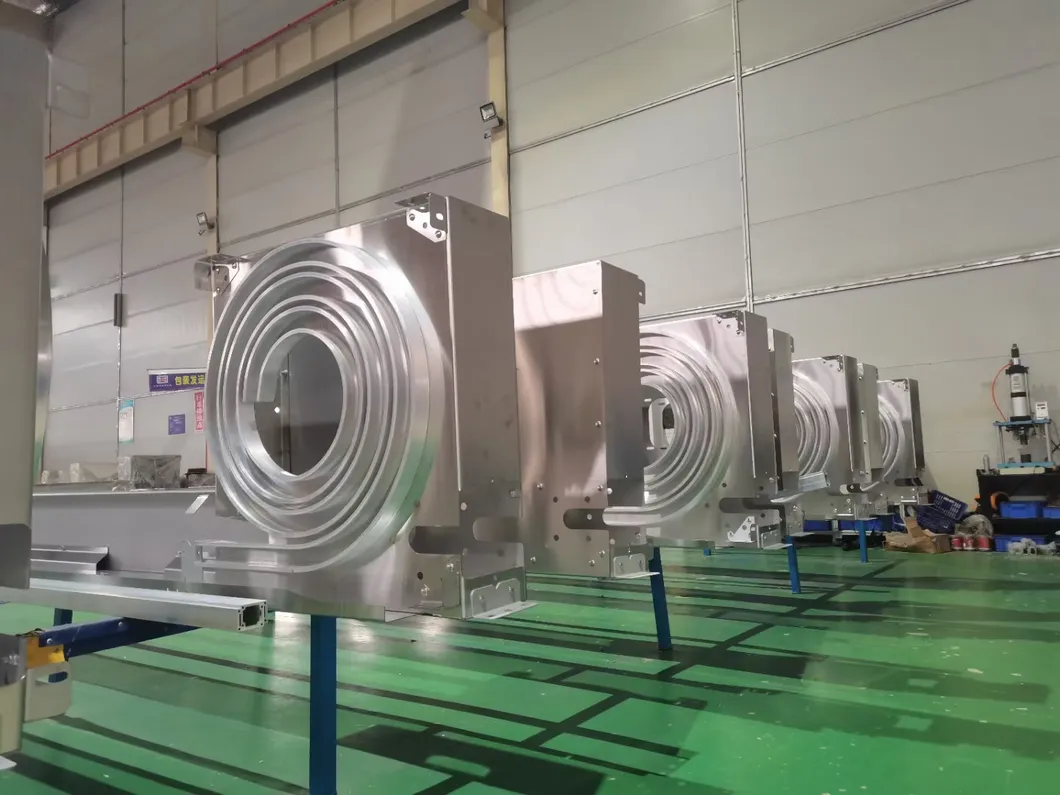

Aluminum alloy profile rail with smooth anodized surface. The door panel runs in guide rail by separate wheel without touching, avoiding friction for high speed and long life.

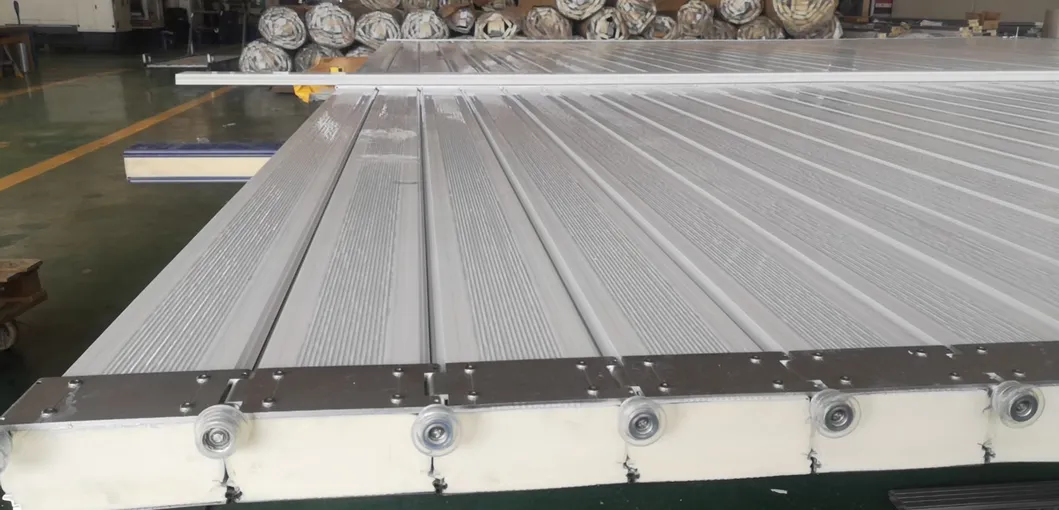

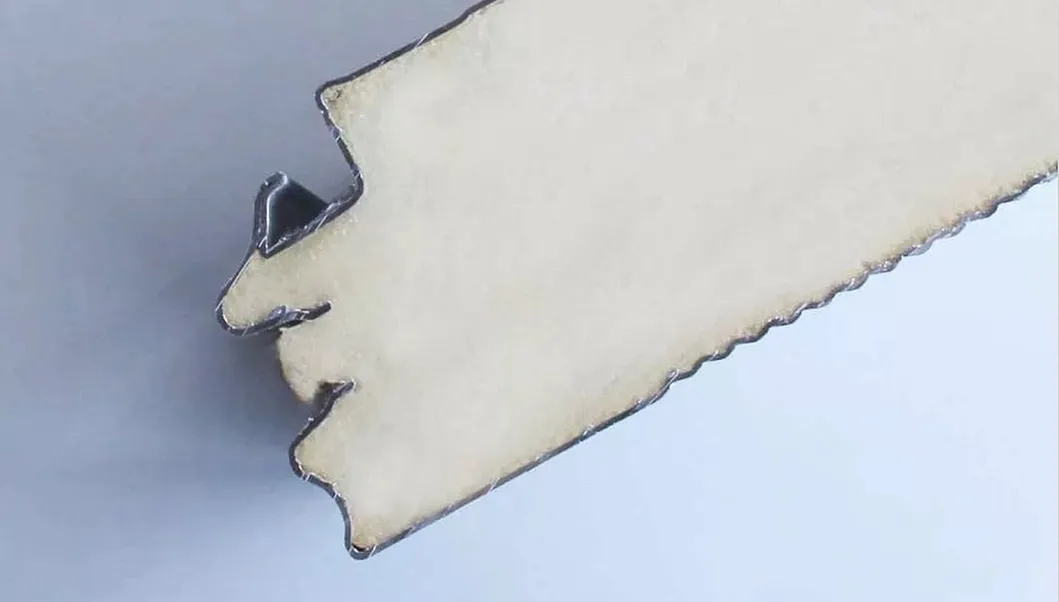

Double layer aluminum panel filled with polyurethane foam. Broken bridge design prevents temperature loss and saves energy. Surface has 5 layers of coloring for corrosion resistance.

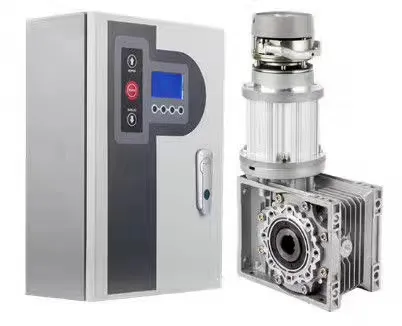

Equipped with advanced AC Servo control systems featuring:

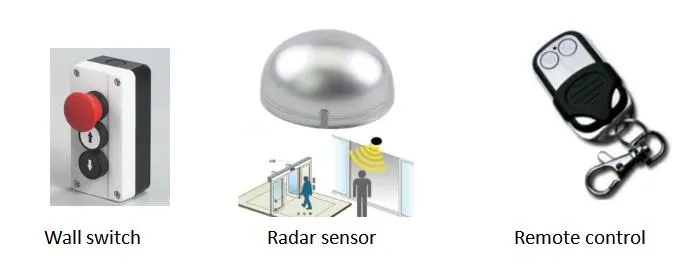

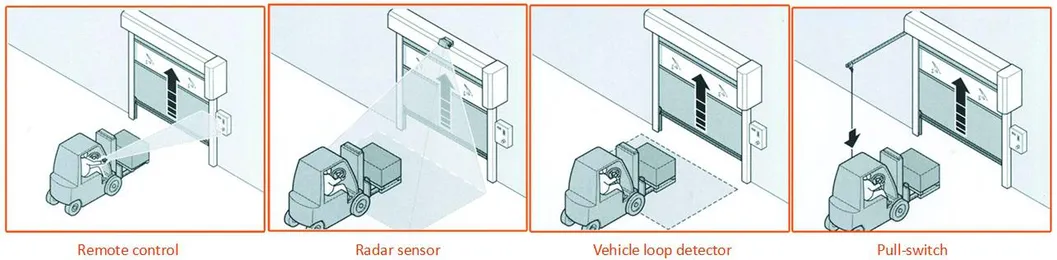

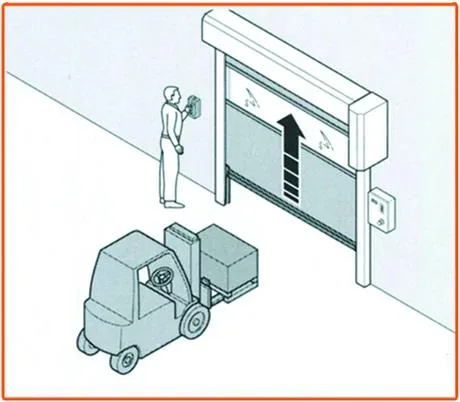

Standard buttons, Remote control, Radar sensor, Vehicle loop detector, and Pull switches are available.
✅ Improve Transport Efficiency: Reduces forklift waiting time significantly.
✅ High Level Cleanness: Complies with GMP standards, perfect for pharmaceutical and food industries.
✅ Effective Insulation: Super seal keeps indoor energy and cold air contained.
✅ Intelligent Automation: Can be connected to production lines and conveyor belts.
✅ User Safety: Features soft bottom safety edges and photo sensors as standard.
