Model NO.YO-Aluminum
MaterialPVC Fabric
TypeRolling
Open StyleRolling
Opening TypeInduced
Special FunctionThermal Insulated
ColorVarious Color
PositionIndustrial
Surface FinishingFinished
Power Supply1-Phase 220V, or 3-Phase 380V
Steel StructurePowder Coated Gi and Aluminum Alloy
Slat Thickness40mm
Installation AreaExterior or Interior
Wind Resistance35m/S
Working Temp-35 to 65 Celsius Degree
Max Size6m * 6m
Package Size300.00cm * 80.00cm * 80.00cm
Gross Weight500.000kg
Transport PackageExport Wooden Box

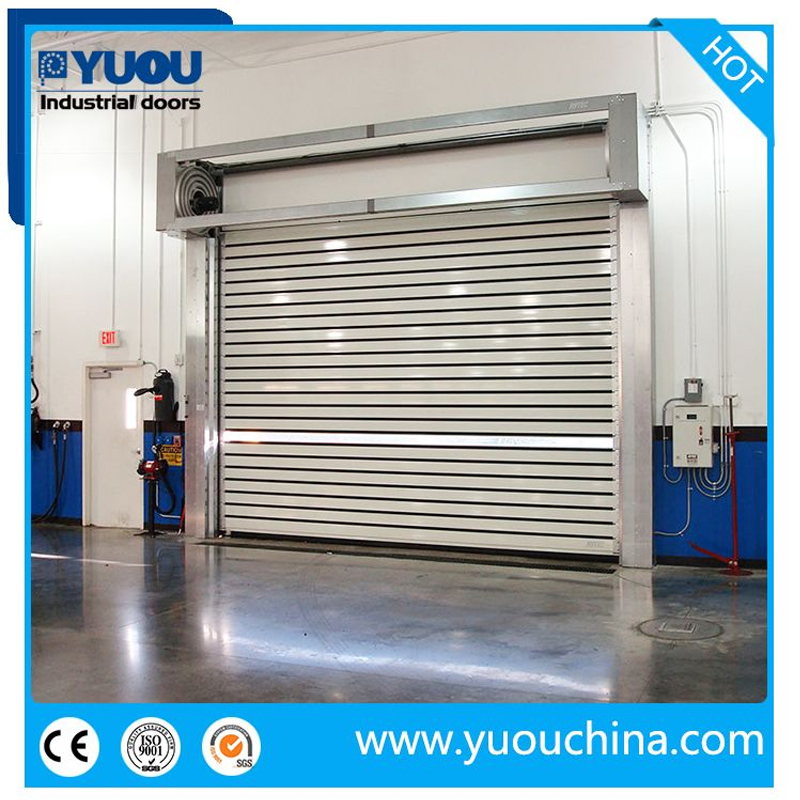

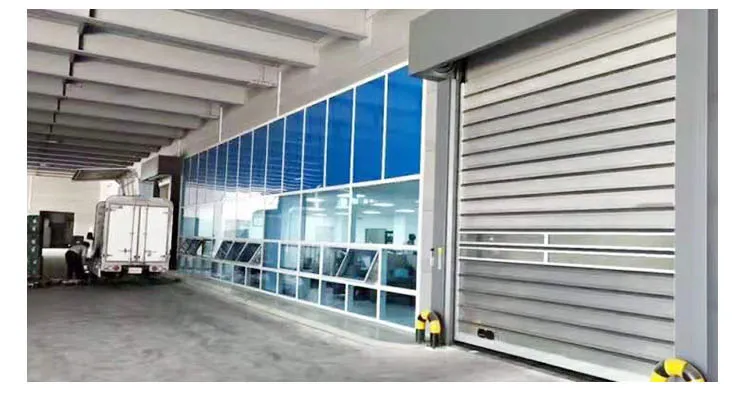

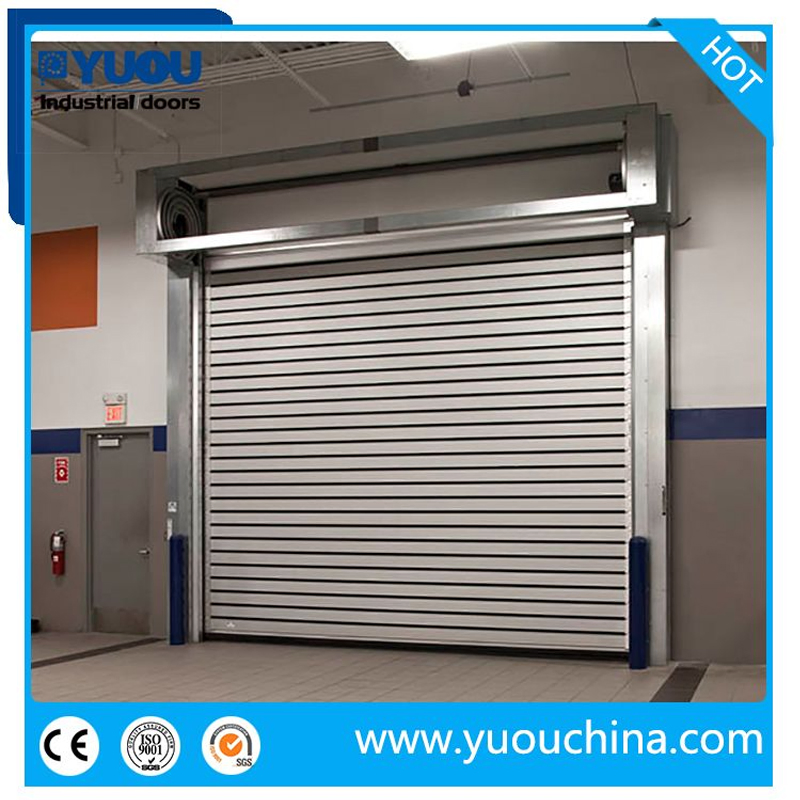

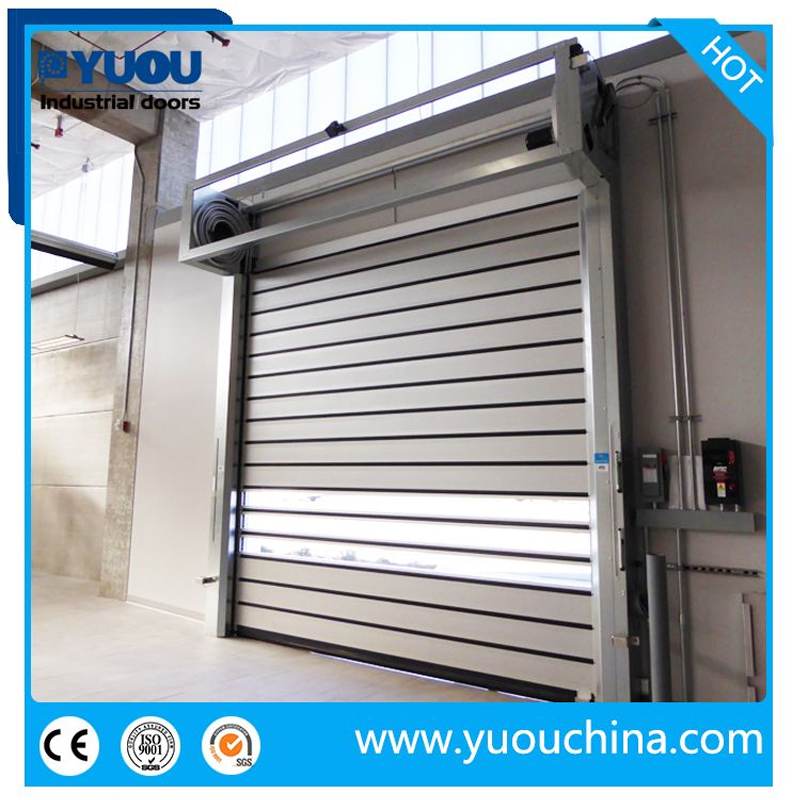

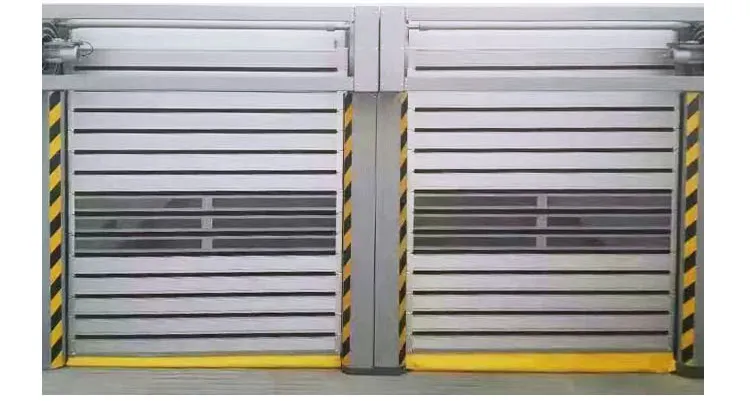

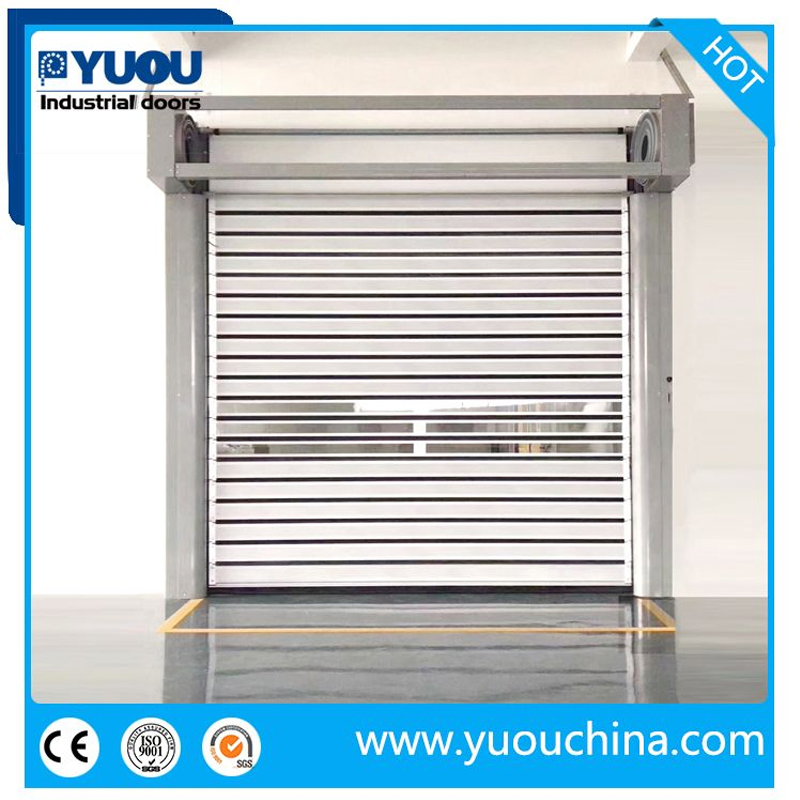

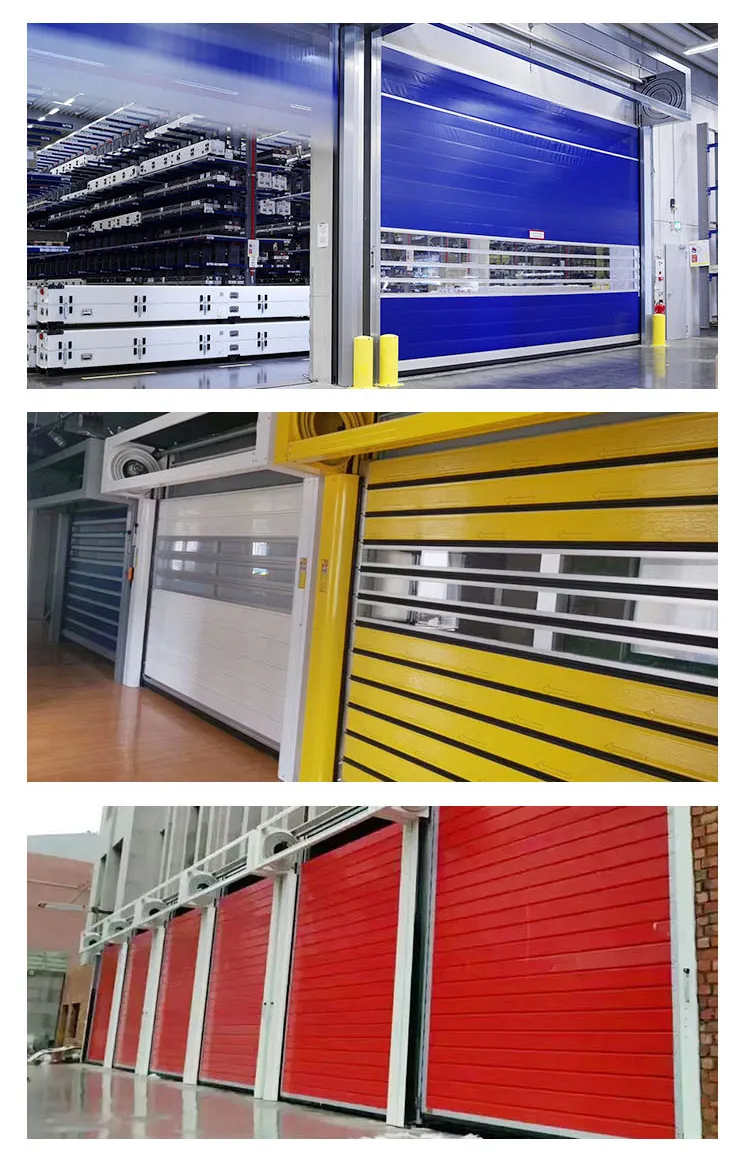

Aluminum alloy high speed doors are applied for areas with high demand of both security, high-strength, thermal insulation and high running speed. Widely used in underground garages, factory exterior, warehouse exterior.

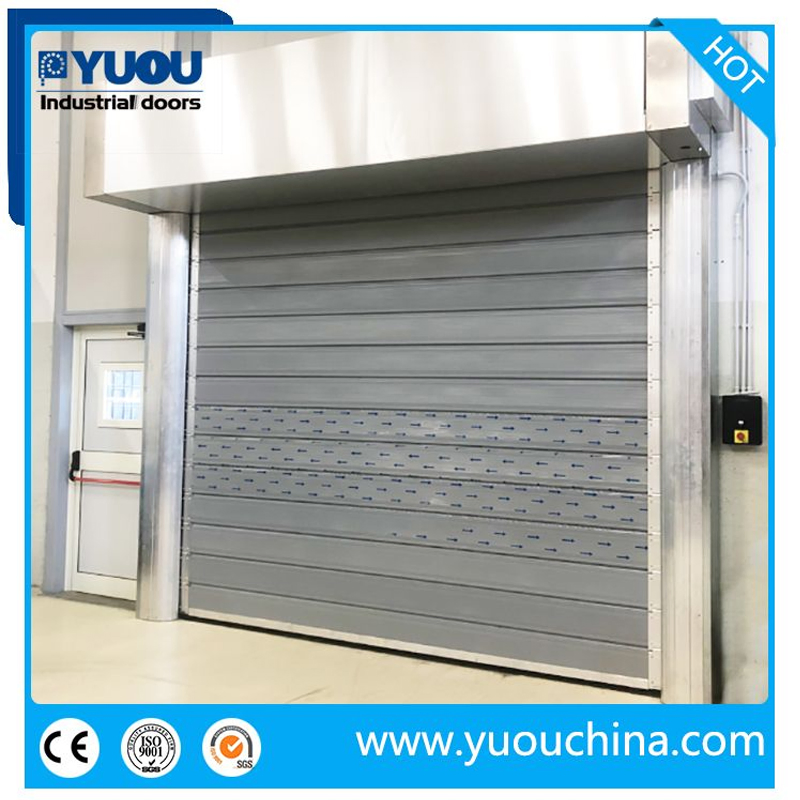

| Hard Material High Speed Insulated Aluminum Alloy Spiral Door |
| Max dimension | width * height 8000mm*8000mm |
| Power supply | 220±10%V, or 380V, 50/60Hz, IP55 |
| Max. opening speed | 2.0m/s |
| Max. closing speed | 1.0m/s |
| Wind resistance | 35m/s (Class 12) |
| Sound insulation level | 25DB |
| Water tightness | 30Pa |
| K Value | 0.4W/m².K |
| Thermal Conductivity | 1.9W/m2.K |

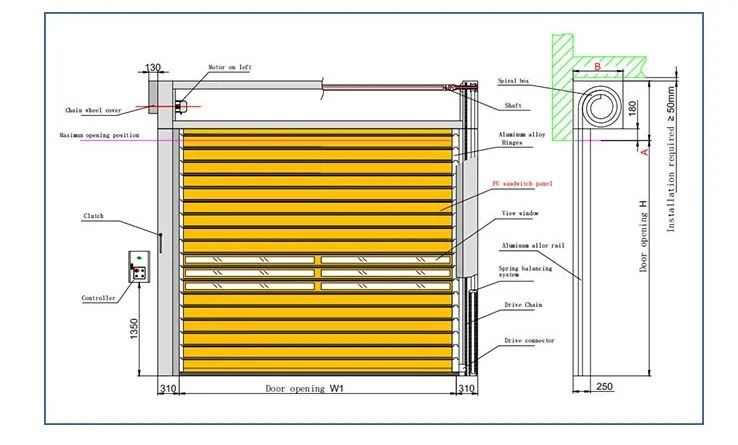

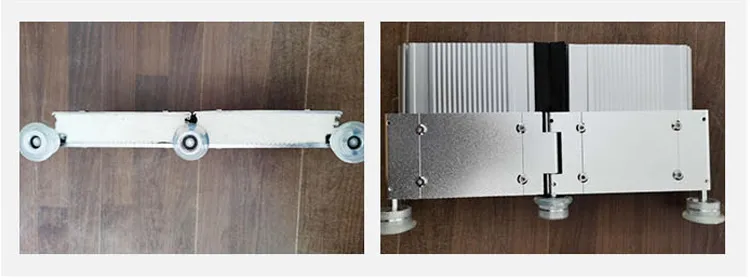

1. Door panel: Thermal insulated & Wind resistant
43mm double layer (0.7mm/layer) aluminum alloy sandwich panel, foaming density 40kg/m3, high quality nylon wheels and 2.5mm thickness aluminum alloy hinges.

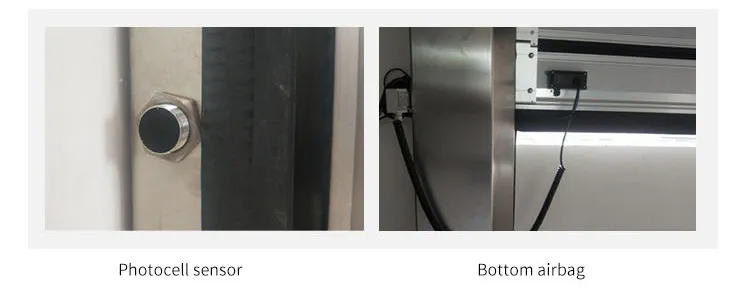

4. Safety Devices
Photocell sensor and bottom airbag

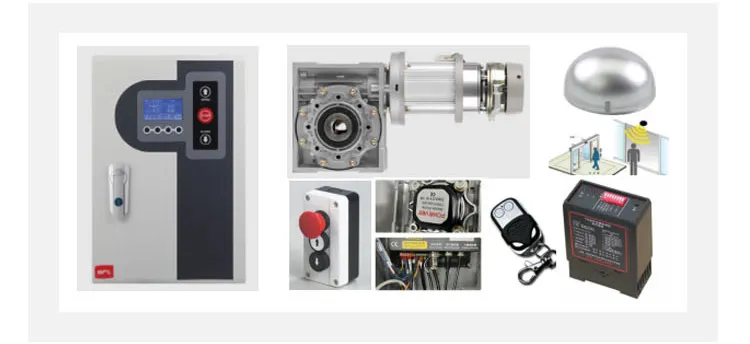

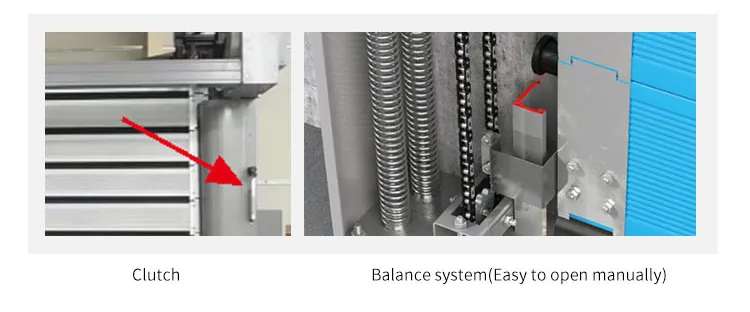

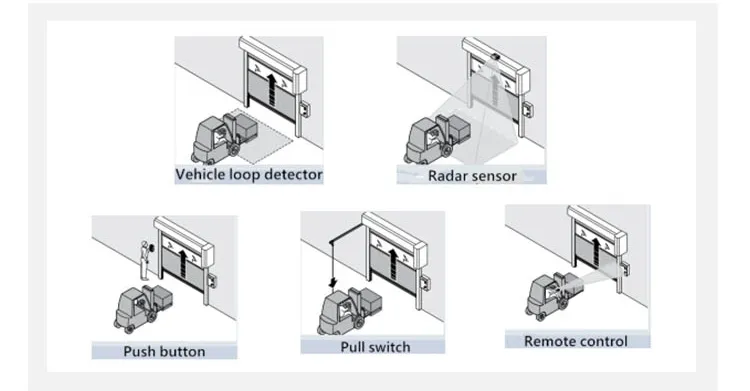

5. Emergency Device & 6. Operation Methods
Frequently Asked Questions
1. What are the payment terms?
We require a deposit before production begins, with the balance payment due prior to shipment.
2. What is the standard delivery time?
The typical delivery timeframe is between 7 to 15 days depending on the order specifications.
3. What warranty is provided for the doors?
We provide a comprehensive 12-month warranty covering all doors and accessories against quality issues.
4. Do you offer OEM and ODM services?
Yes, both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services are available to meet your specific requirements.
5. What is the Minimum Order Quantity (MOQ)?
We accept orders starting from 1 set as a sample, though we offer better discounts for larger quantity orders.
6. What kind of after-sales support do you provide?
We provide a full set of English documentation and technical guides. Our team offers remote installation assistance and daily usage guidance via internet or phone.
