Armor Door
Armor Door

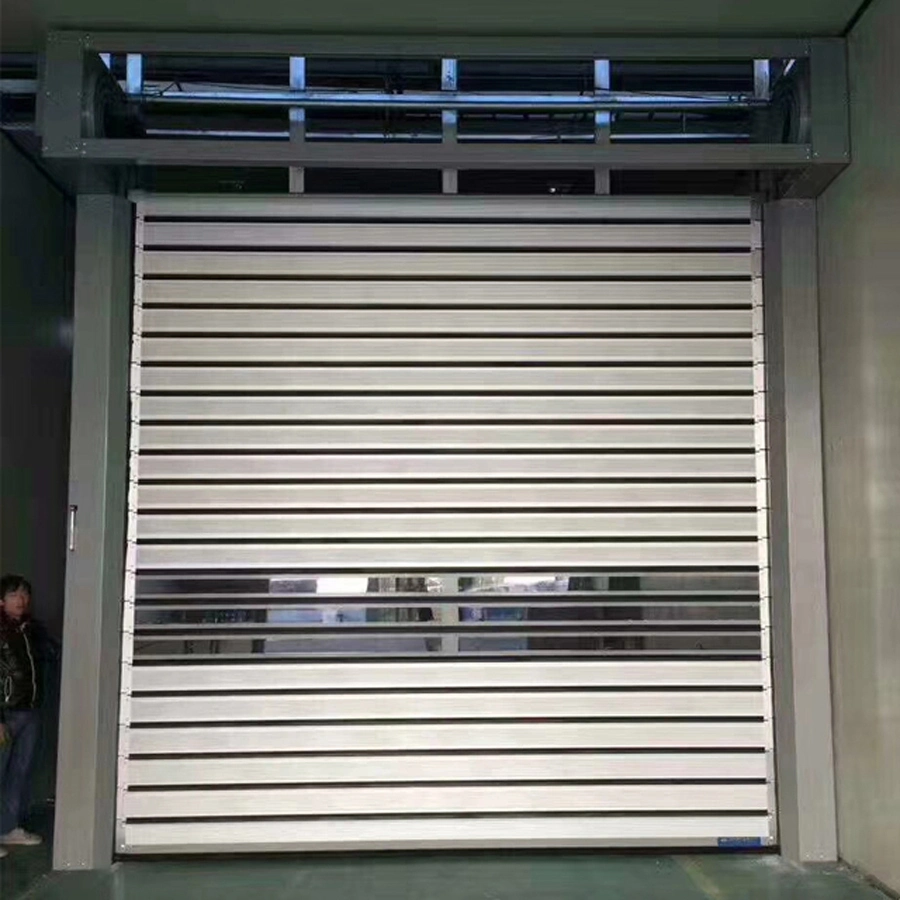

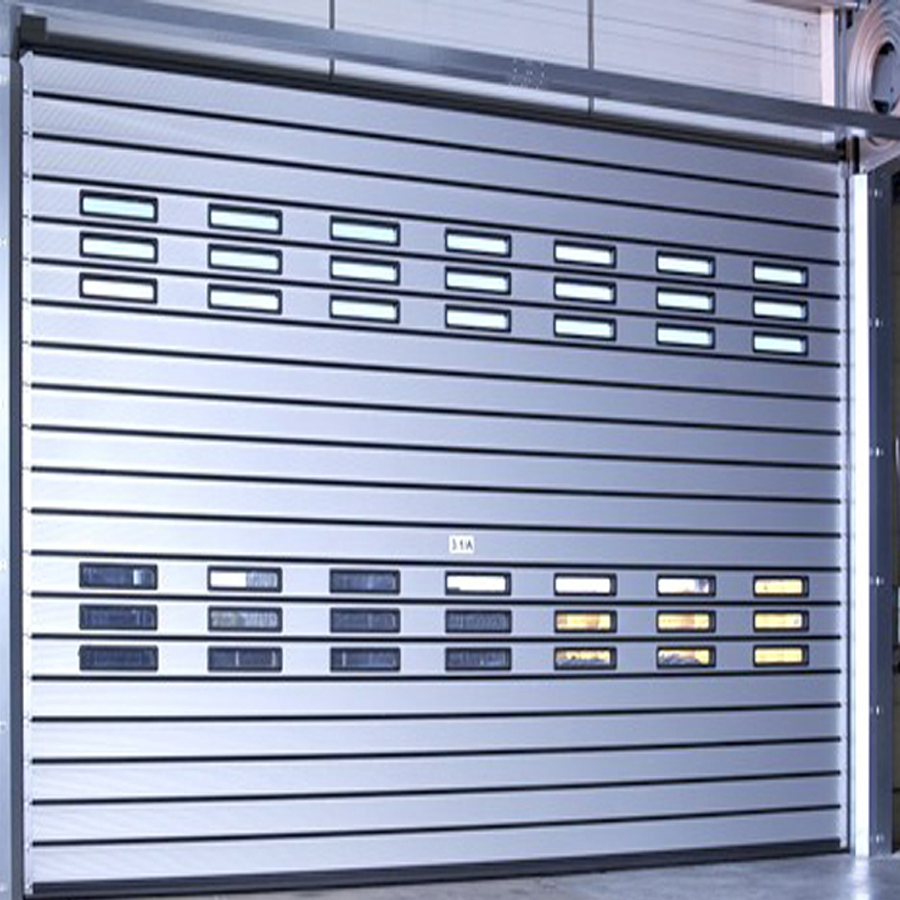

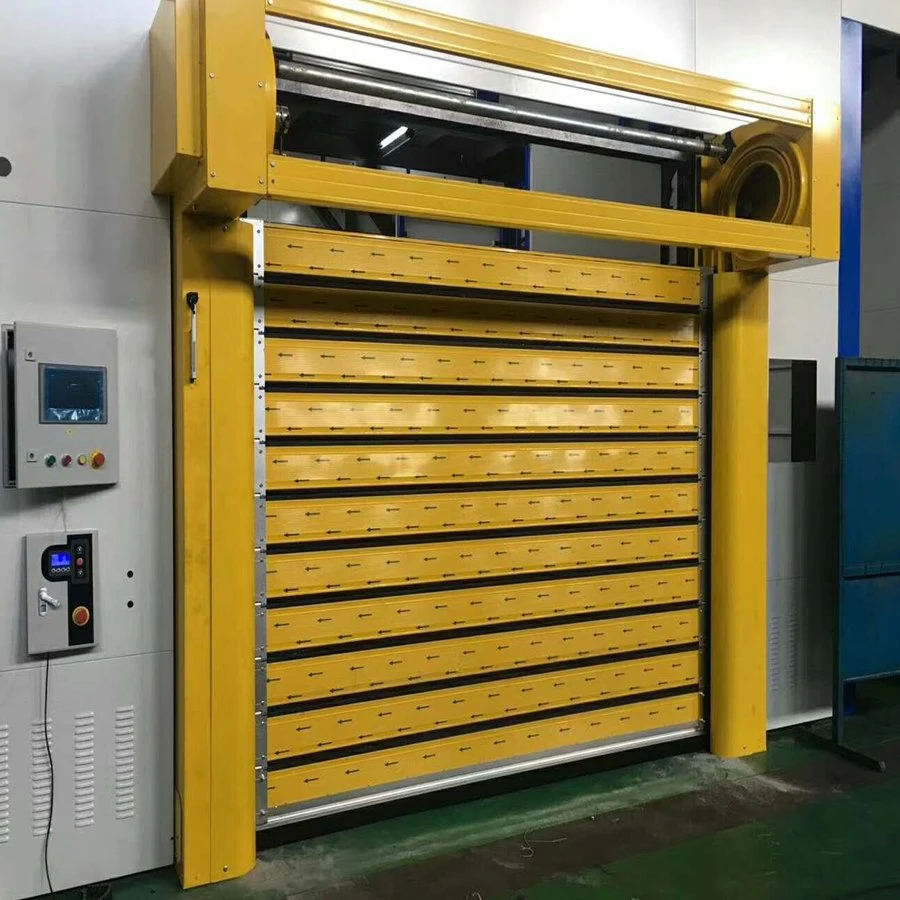

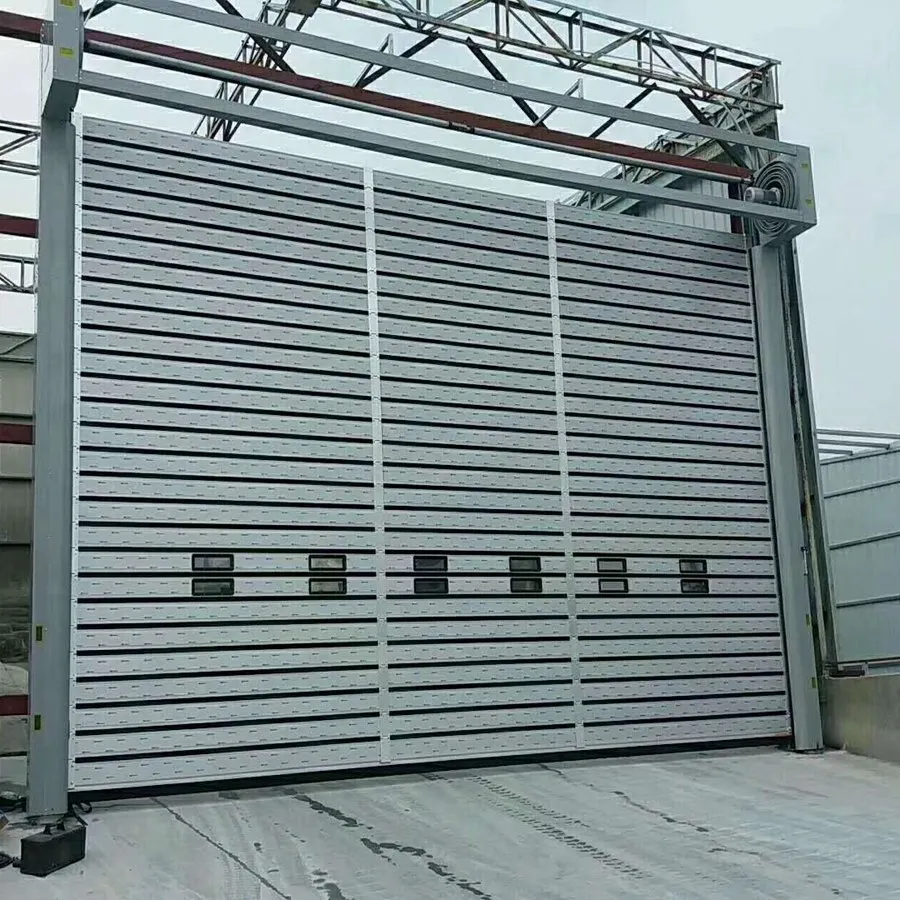

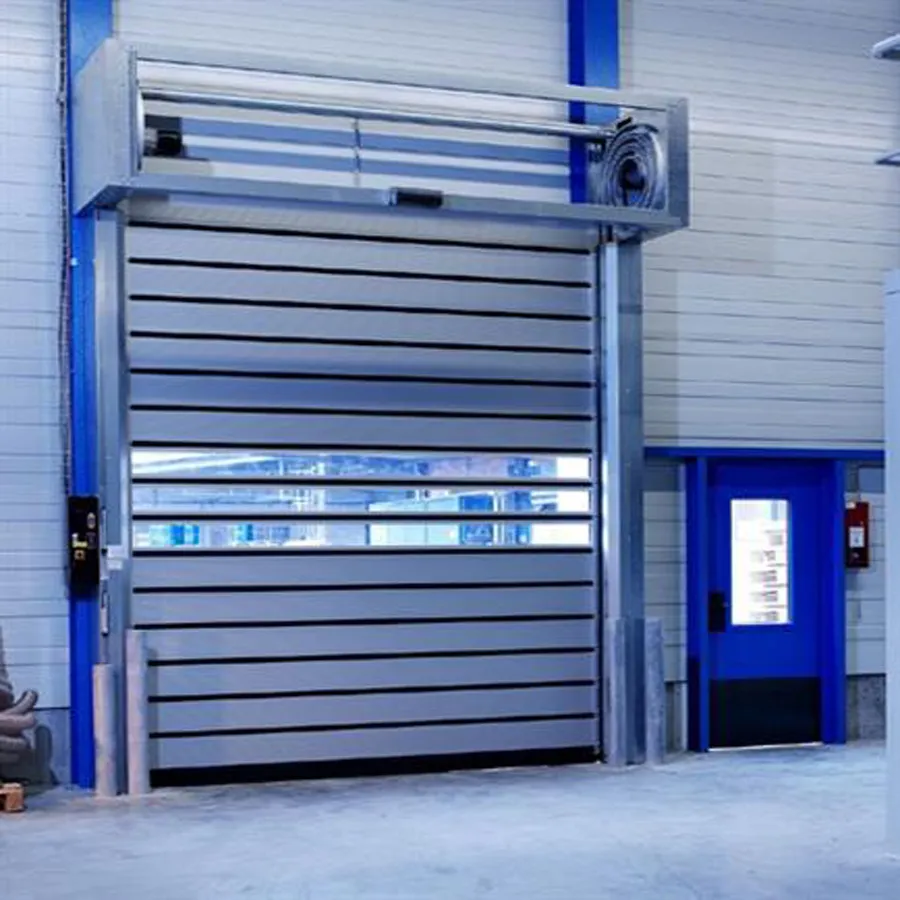

Aluminum Spiral Fast Rolling Security Door
The running track can be single spiral, double spiral, elliptical, smooth, straight, and special-shaped series. The track can be designed according to the size of your door opening space. The motor can be built-in coaxial and side-mounted.

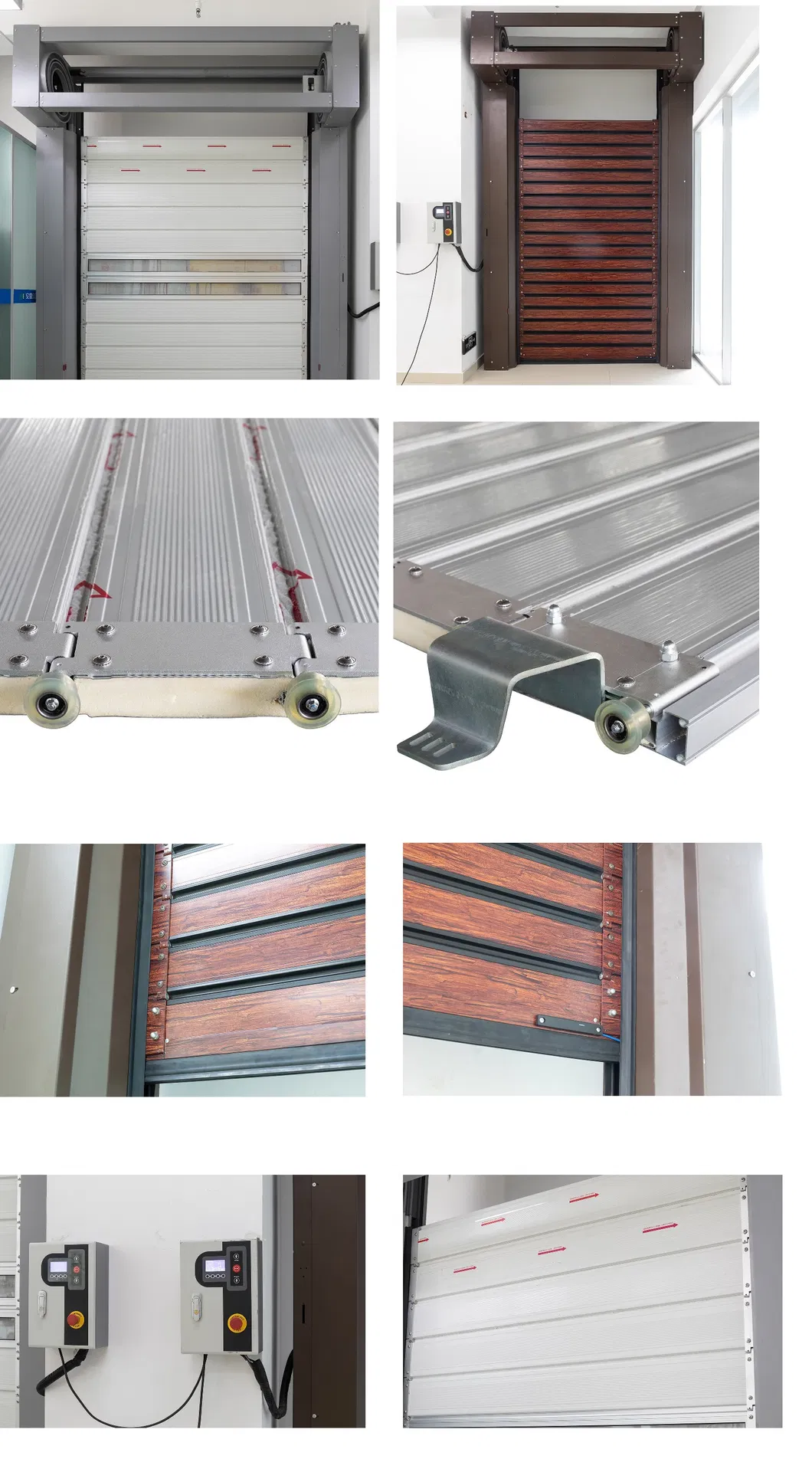

The traditional door panel encounters debris or hail will be caught in the link gap, resulting in door panel damage and deformation. The new anti-pinch broken bridge foam door is the best solution for high cold environments or large indoor/outdoor temperature differences, greatly improving the overall life of the door.
| Application | External door / Internal door |
| Max. Width | 10000mm |
| Max. Height | 7500mm |
| Max. Opening Speed | 2.5m/sec |
| Max. Closing Speed | 0.8m/sec |
| Door Leaf Material | 0.8mm aluminum alloy with PU-foamed |
| Resistance to Wind Load | Class 4 (130km/h) |
| Acoustic Insulation | R=22 dB |
| Thermal Insulation | UD=1.95W/(M²K) |

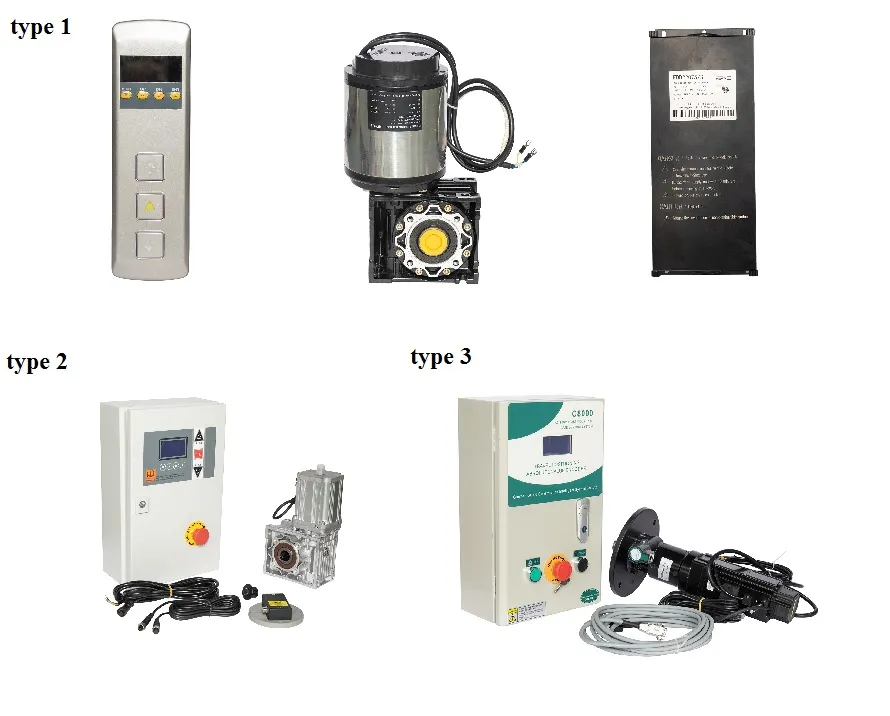

Equipped with servo motors or three-phase asynchronous motors to meet different operational requirements.
1. PE film packaging for long panels (Full container orders).
2. Wood box packaging for complete sets (LCL or standard orders).
