Armor Door
Armor Door
Cold storage rapid door widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.

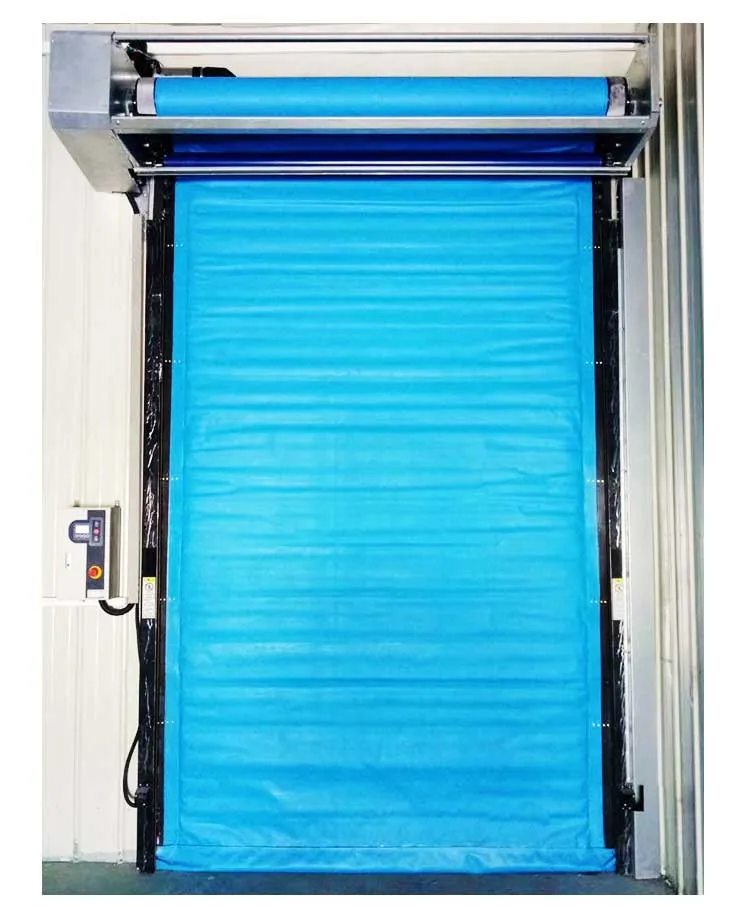

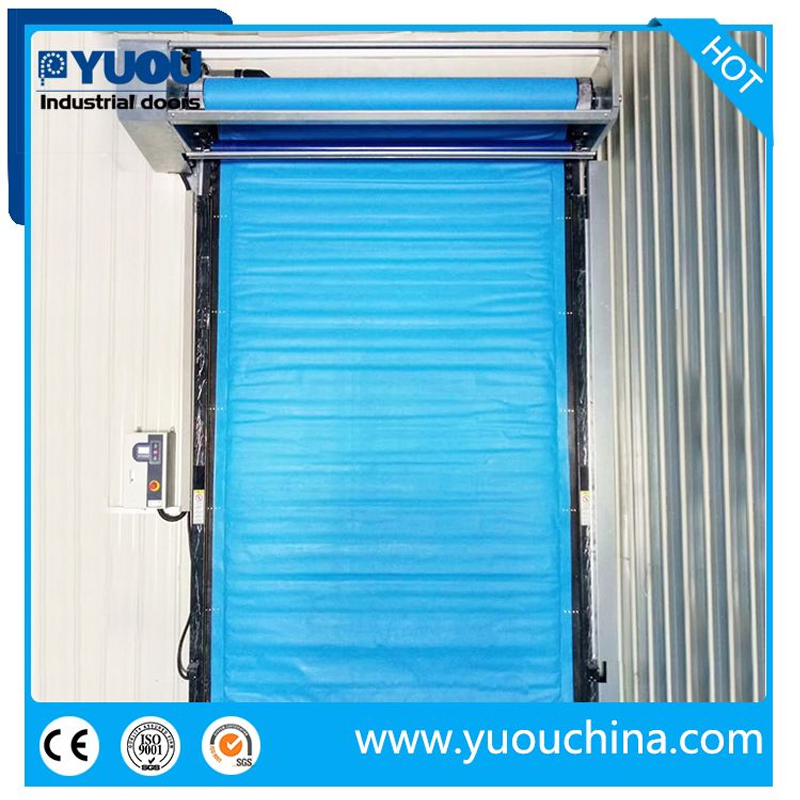

| 220 V Freezer Room Insulated Temperature Control Door | |
| Max dimension | width * height 3500mm*4000mm |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Normal speed | Open 1.2m/s, Close 0.6m/s |
| Max speed | Open 2.0m/s, Close 1.0m/s |
| Opening frequency | 1000 times / day |
| Wind resistance | 28m/s (Class 10) |

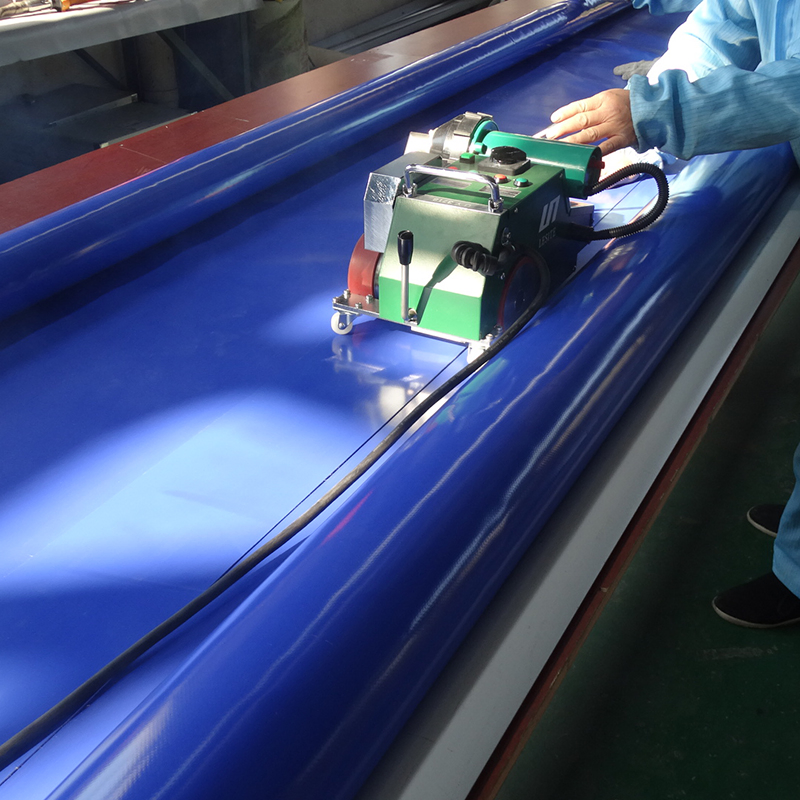

Insulated PVC sandwich fabric: double skin is 0.8mm PVC fabric, and inside is filled with high-density insulating rock wool, total thickness is 20mm.

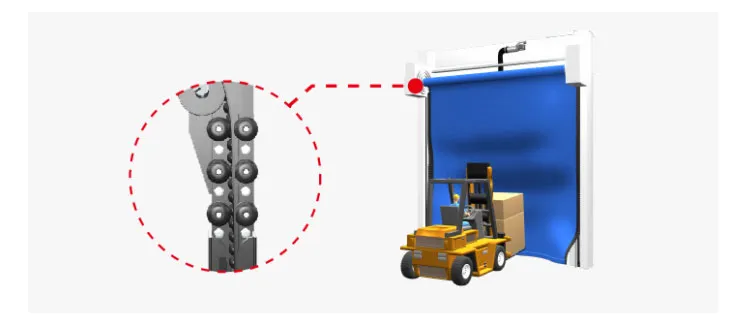

Use zipper to connect the fabric with frame side guide rail as a whole body, realizing better sealing performance and air-tightness. In case of accidental collision, the fabric can detach from guide rail and return automatically.

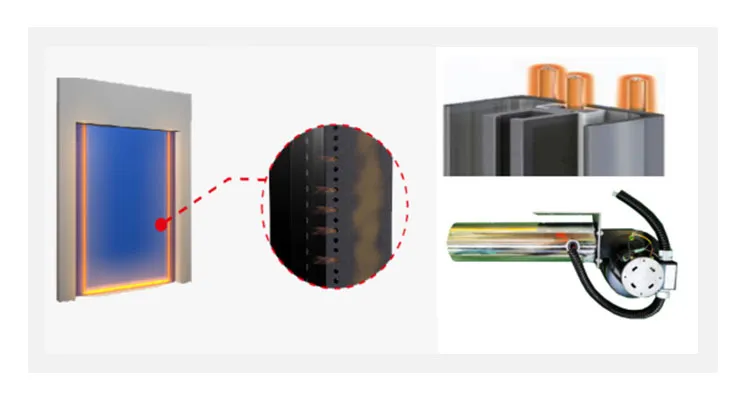

All-round heating wire belts are used to avoid freezing of door structure. This prevents damage to the fabric and driving system in low-temperature rooms.

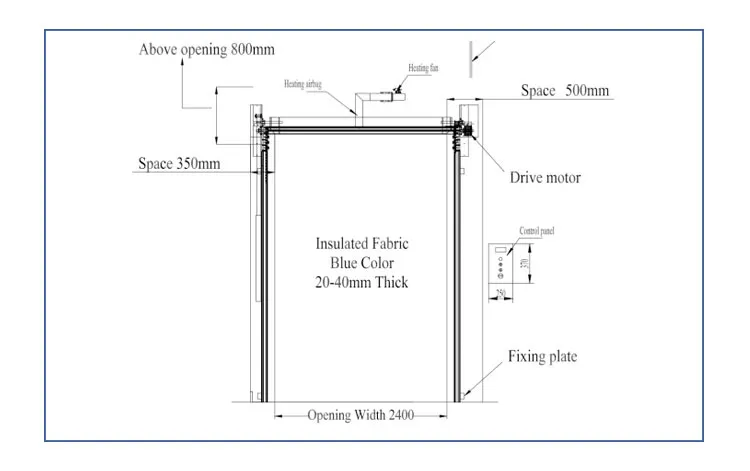

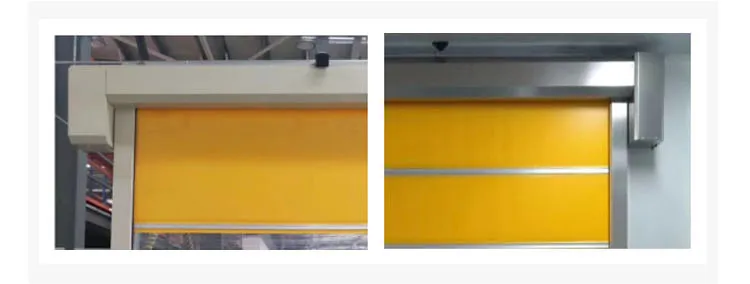

Two guide rails including top cover and motor cover. Thickness: 1.5mm for guide rail, 1.0mm for cover box. Material: Galvanized steel (painted), Optional 304 stainless steel or aluminum alloy.

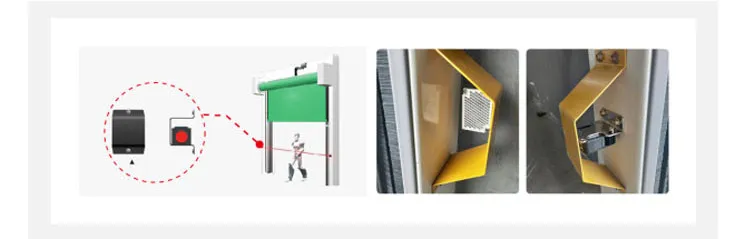

A. Safety photo cell sensor: Stops closing if an object is detected.

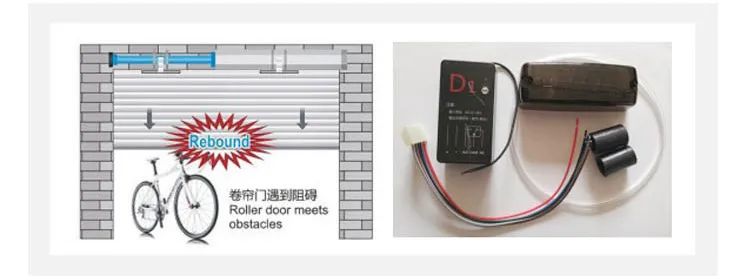

B. Safety bottom airbag sensor: Reverses immediately upon contact.

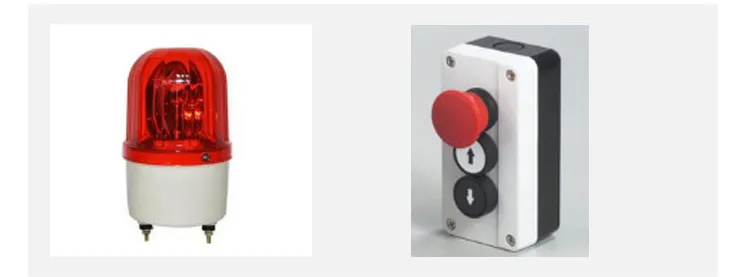

C. Alarm light and emergency buttons: Flashing warning and dual-side controls.

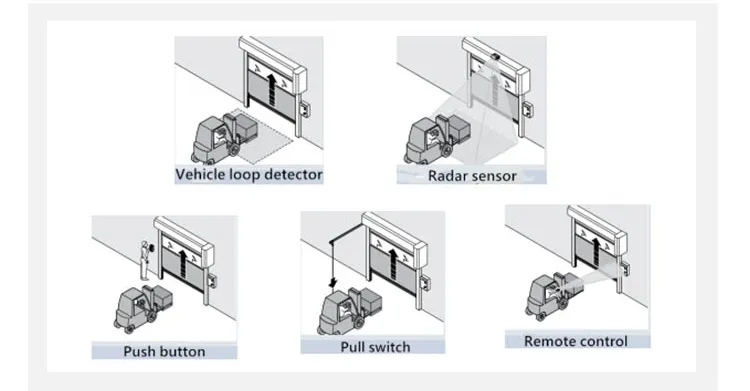

Vehicle loop detector, Radar sensor, Push button, Pull switch, Remote control.
