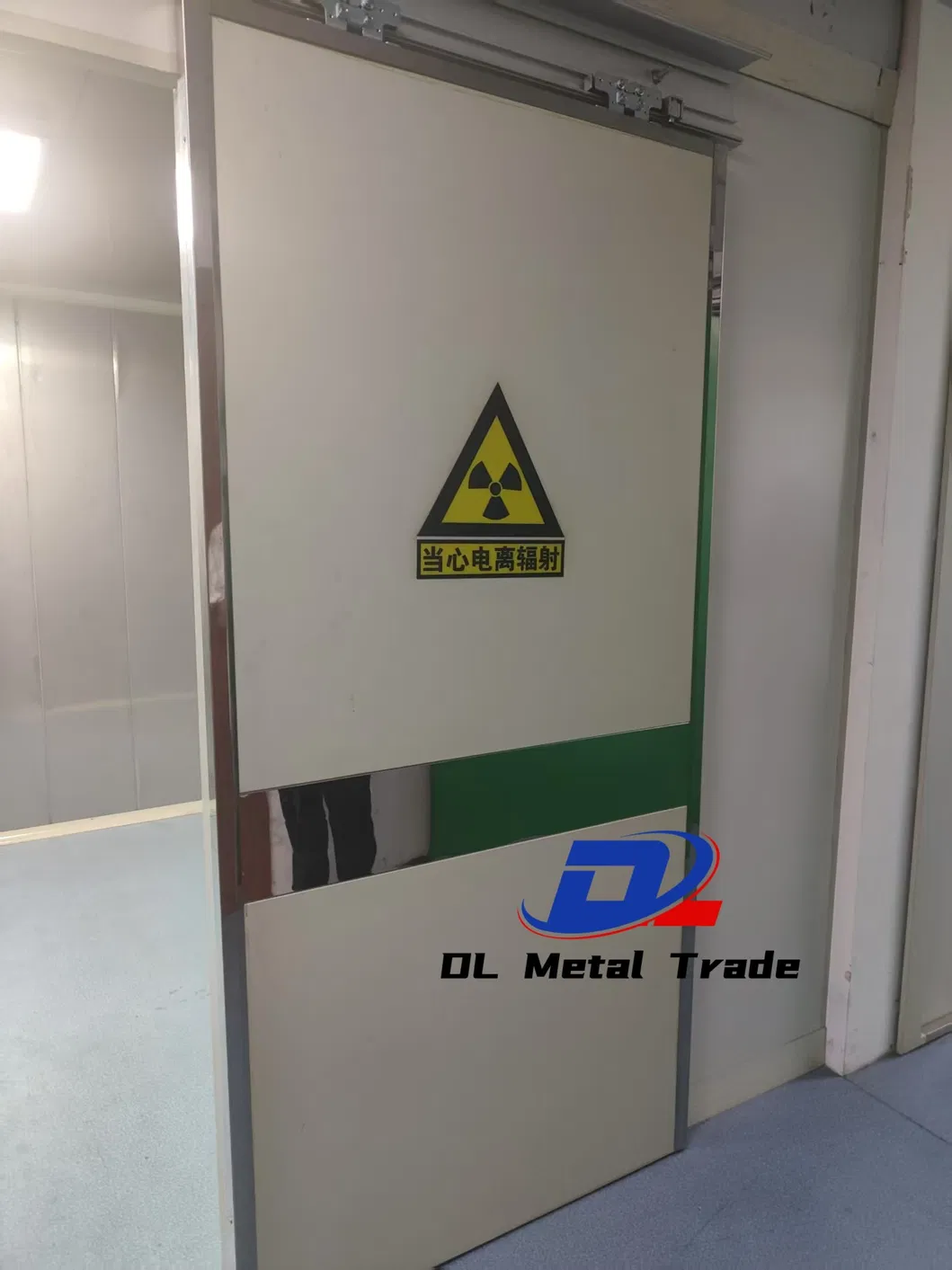

Armor Door
Armor Door

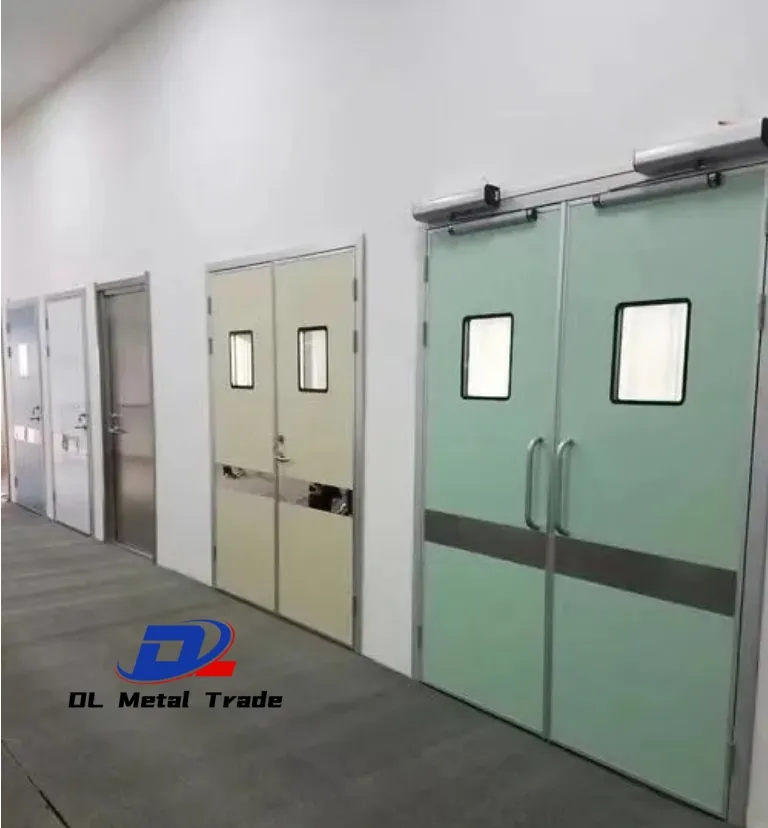

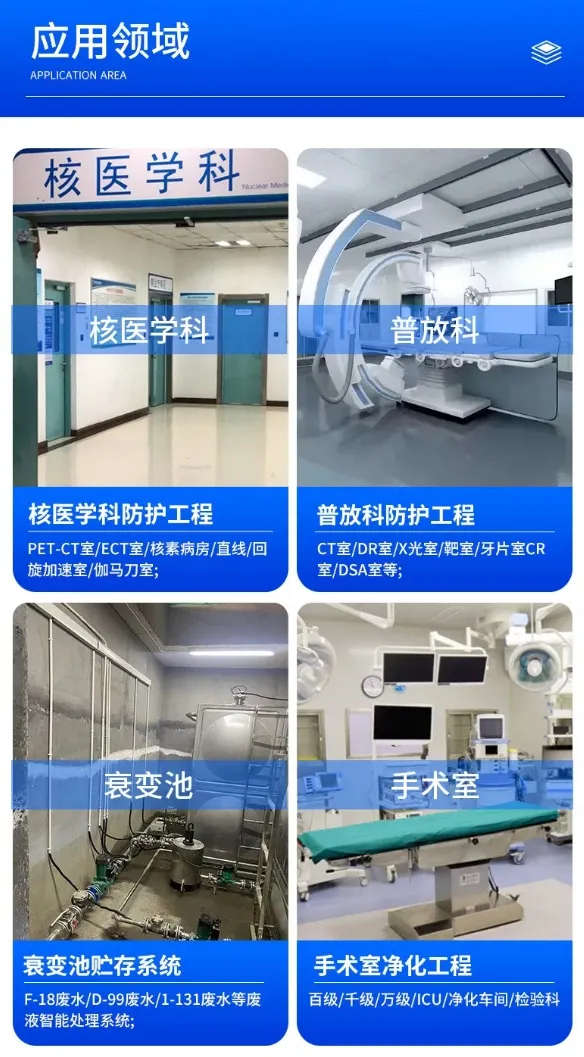

Working in the medical field, it's important to have lead doors to protect us from radiation. Lead doors also provide excellent protection for industrial and commercial applications where high levels of radiation are present. Lead lined hollow metal doors offer extended strength and durability for environments where radiation safety is a concern and a robust lead door is required. This includes hospitals, clinics, veterinary clinics, research laboratories, and spaces radiation protection.
Lead lined metal doors can be either solid or hollow. Hollow metal doors are the most common type of lead door, as they are more durable and offer better protection against forced entry, everyday wear and tear. Lead lined hollow metal doors are an important part of any radiation safety plan. When combined with other radiation safety measures, such as lead lined walls and lead lined windows, they provide a comprehensive solution for protecting people and equipment from the harmful effects of ionizing radiation.

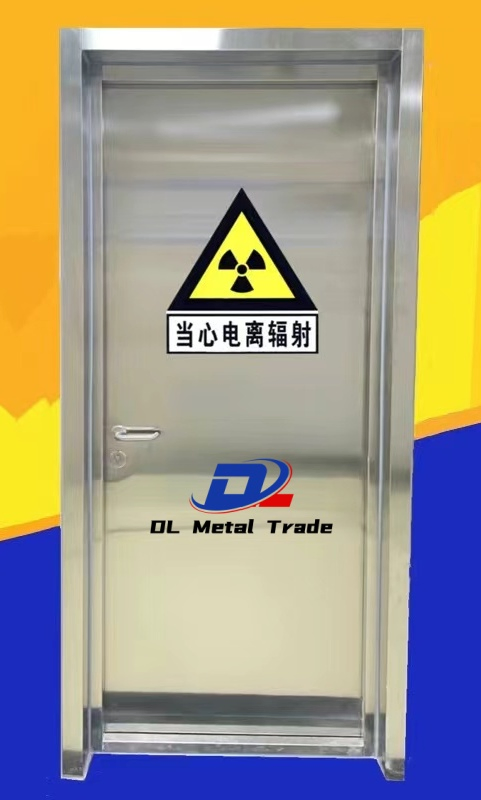

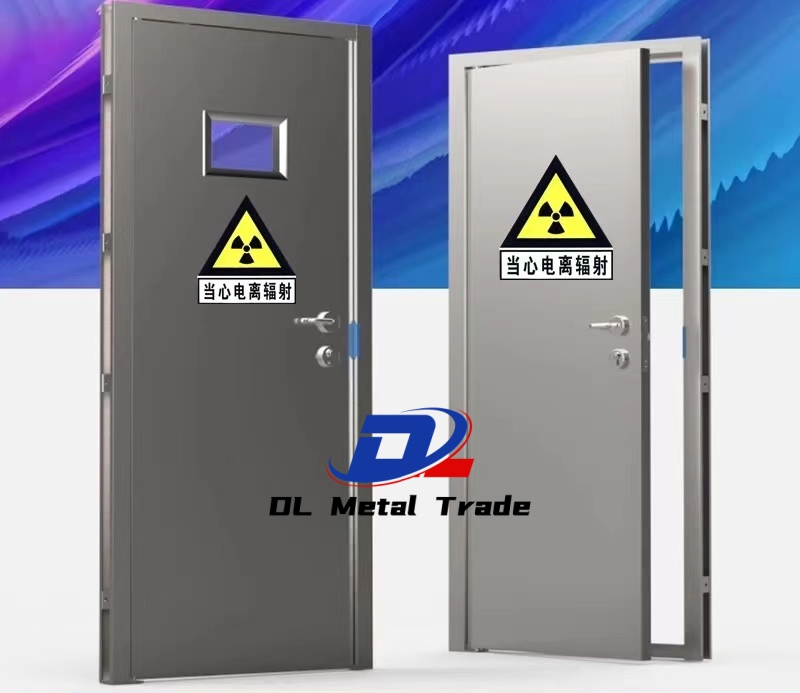

Lead lined steel metal doors assemble, install, and look like standard steel metal doors but with the added benefit of radiation protection. The exterior of lead lined steel metal doors come in cold rolled steel in a range of gauges. Reinforced hinging and hardware support the door's additional weight.
The pure lead sheeting spans the entire height of the door and extends to the edges for effective shielding. Lead thickness determines the shielding level, which is determined based on the door's proximity to the radiation-producing equipment. A licensed medical physicist can help you calculate the lead thickness required for your application.
| Product Name | CT Room X-ray Protection Lead Lined Door/Lead Airtight Door | |
| Lead Sheet Thickness | 1mm, 2mm, 3mm, 4mm, 6mm | |
| Lead Glass (Optional) | 8mm, 12mm, 15mm, 18mm, 20mm, 25mm | |
| Frame Materials | Stainless Steel | |
| Surface Materials | Stainless Steel, Color-coated Steel, Aluminum Sheet, etc. | |
| Swing Door Size | Single Width | 700mm-1000mm |
| Double Width | 1400mm-1800mm | |
| Height | 1900mm-3000mm | |

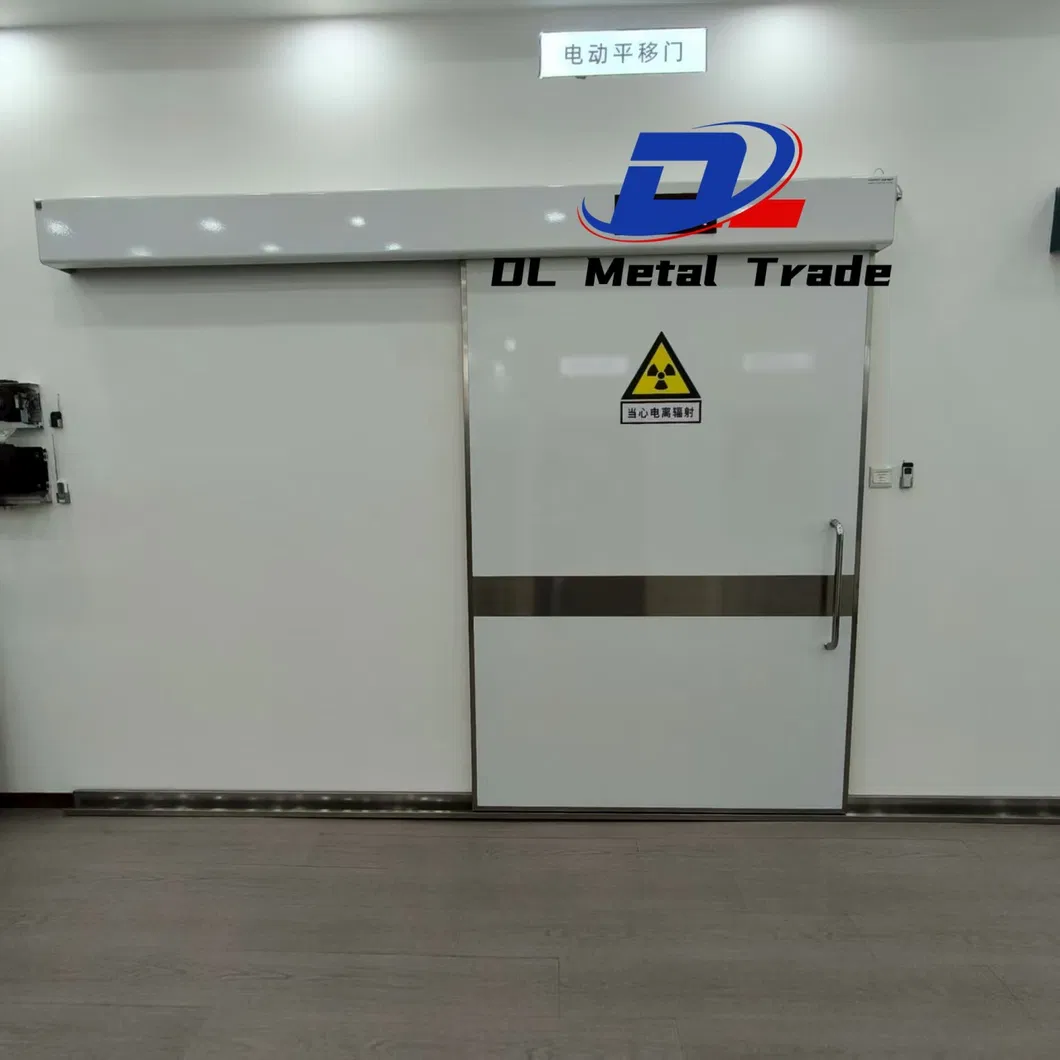

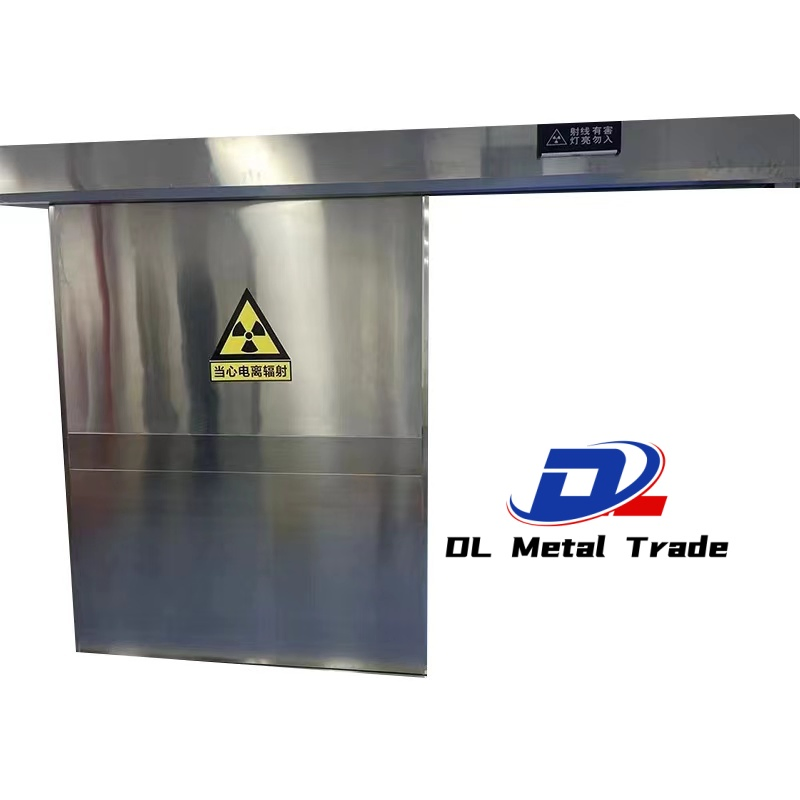

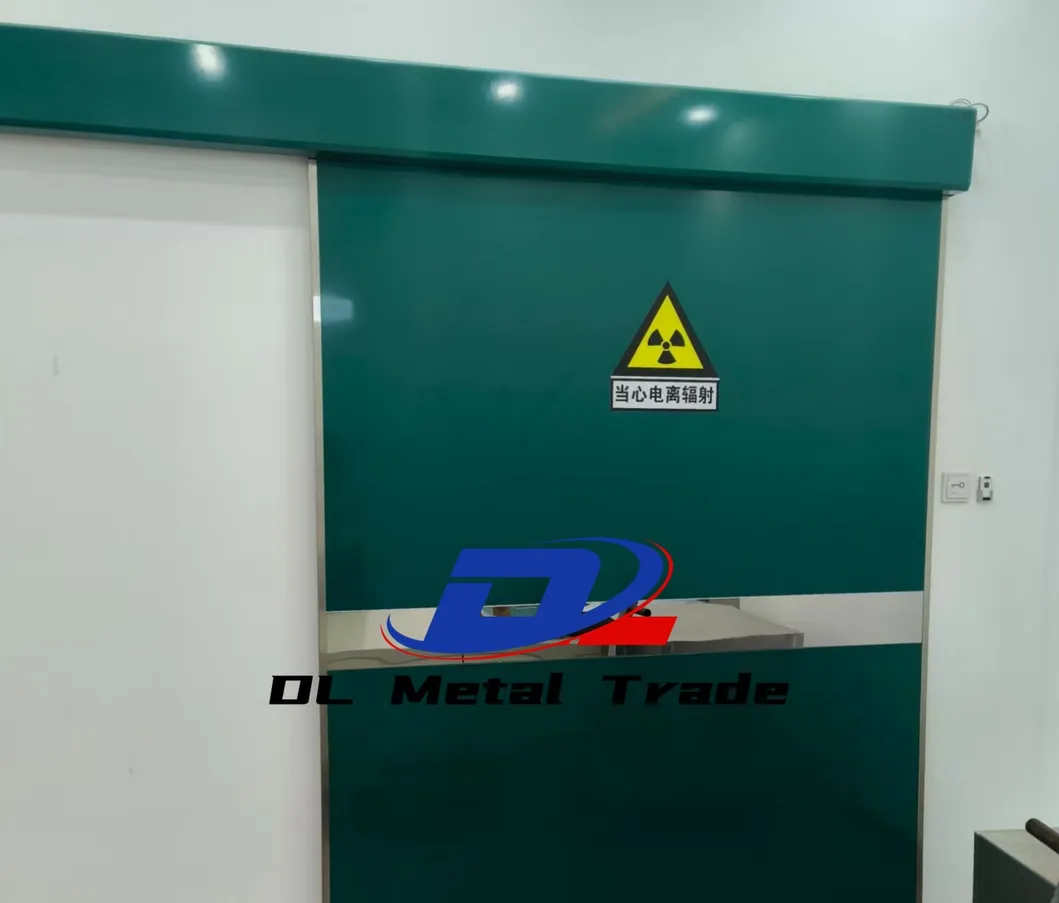

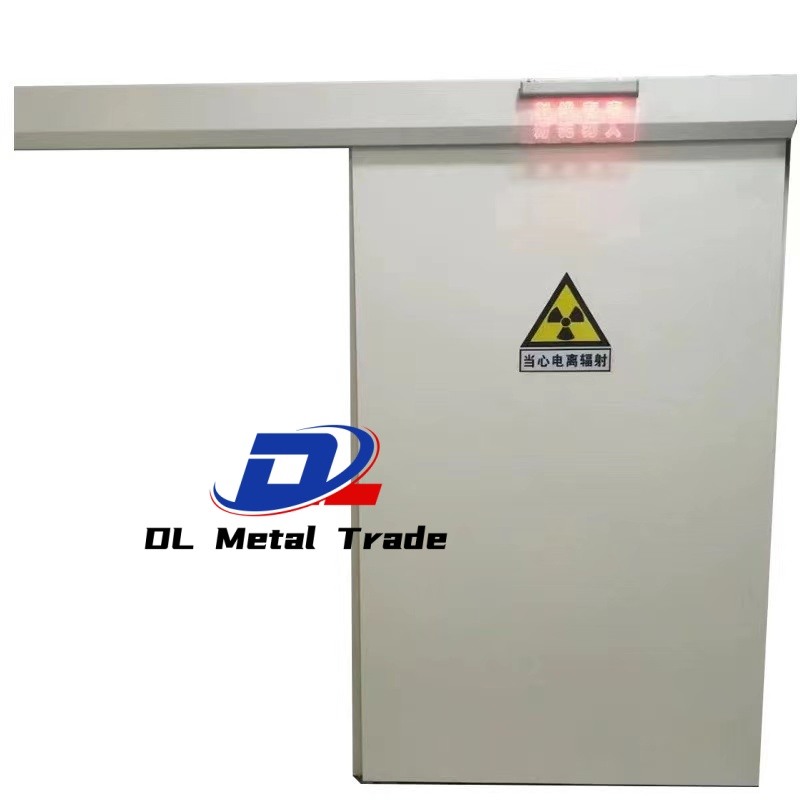

| Sliding Door Size | Single Width | 1000mm-2200mm |
| Double Width | 1500mm-3000mm | |
| Height | 1900mm-3100mm | |
| Automatic System | Hand sensor switch, Feet sensor switch, Press switch | |

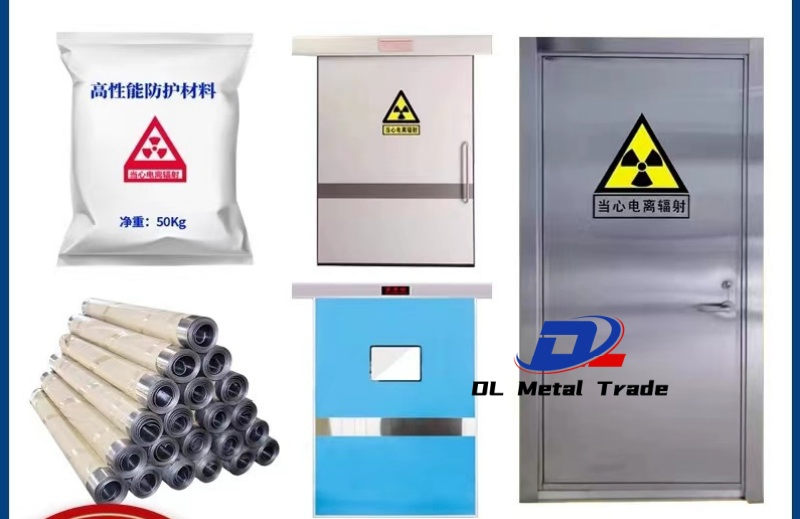

We are a leader in radiation shielding products, including lead lined hollow metal doors. We offer a variety of sizes and lead thicknesses to meet your application needs, as well as hardware, including hinges, locks, and latches. In addition to lead lined hollow metal doors, we provide lead-lined door frames and window frames to fit your design requirements.
Fire ratings for lead lined steel metal doors vary. Please specify any requirements in your quote request. Note: The wall thickness and lockset prep height is required at time of order. Detailed drawings are available for standard lead lined hollow metal doors.
