Sealed Sliding Lead Lined Metal Door 2mm 3mm X-ray Shielding Lead Lined Door for Hospital Door

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Information
Model NO.
lead door
Material
Steel
Door Core Material
Lead
Veneer Material
Stainless Steel
Open Style
Sliding or Swing
Function
Radiation Shield Door
Position
Interior
Thickness
Lead Sheet: 1-6mm Lead Glass: 8-25mm
Purity
>98%
Pb Equivalent
1-12mmpb, or Customized
Production Capacity
50000/Month
Product Description

Sealed Sliding Lead Lined Metal Door 2mm 3mm X-ray Shielding Lead Lined Door for Hospital Door

Working in the medical field, it's important to have lead doors to protect us from radiation. Lead doors also provide excellent protection for industrial and commercial applications where high levels of radiation are present. Lead lined hollow metal doors offer extended strength and durability for environments where radiation safety is a concern and a robust lead door is required. This includes hospitals, clinics, veterinary clinics, research laboratories, and spaces radiation protection.

Lead doors are constructed with a lead-lined inner core that is sandwiched between two layers of metal. The lead-lined core provides the door with its radiation shielding properties. While lead doors can be made with materials, such as aluminum, steel is often used for the outer layers of the door, as it is robust and has a high resistance to impact.

Lead lined metal doors can be either solid or hollow. Hollow metal doors are the most common type of lead door, as they are more durable and offer better protection against forced entry, everyday wear and tear. Lead lined hollow metal doors are an important part of any radiation safety plan. When combined with other radiation safety measures, such as lead lined walls and lead lined windows, they provide a comprehensive solution for protecting people and equipment from the harmful effects of ionizing radiation.

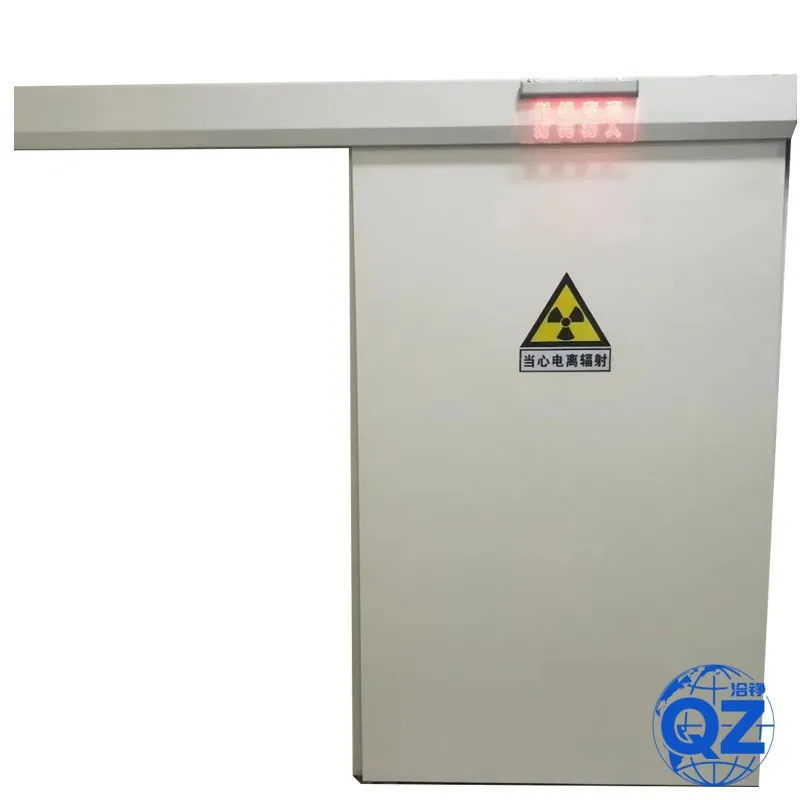

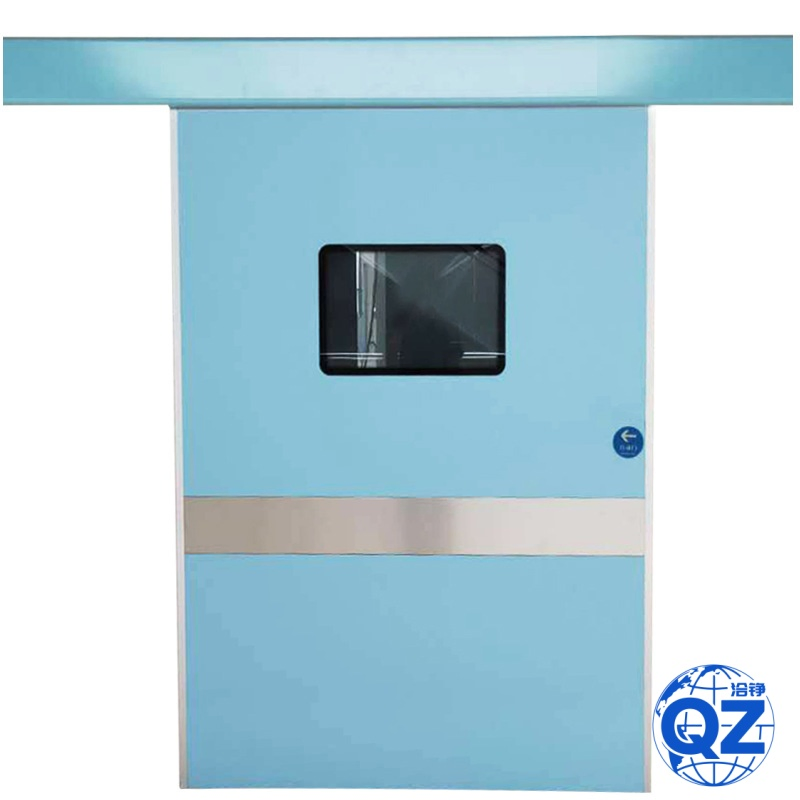

Lead Lined Door 1

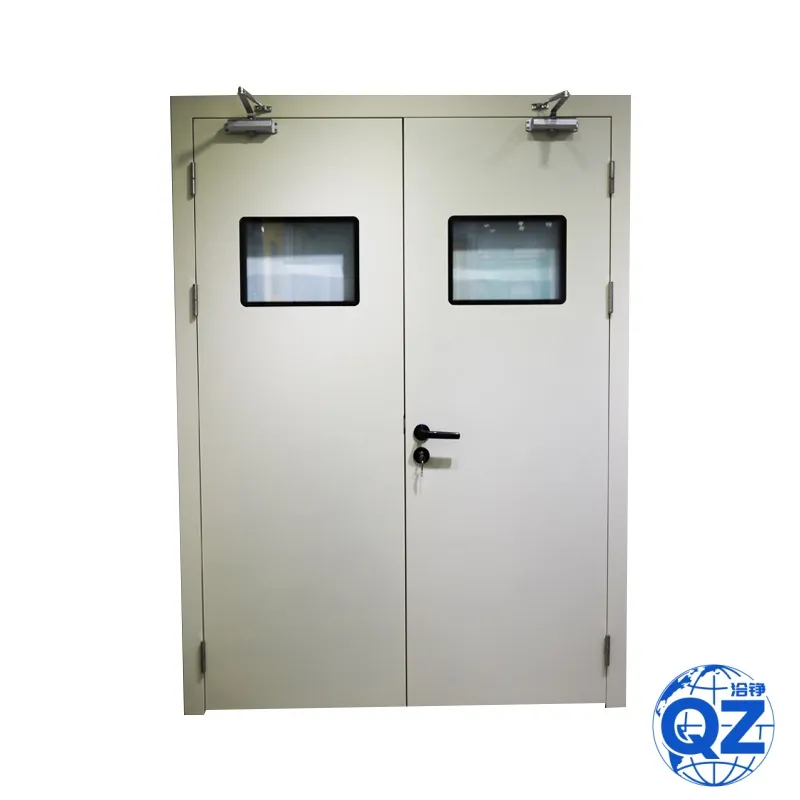

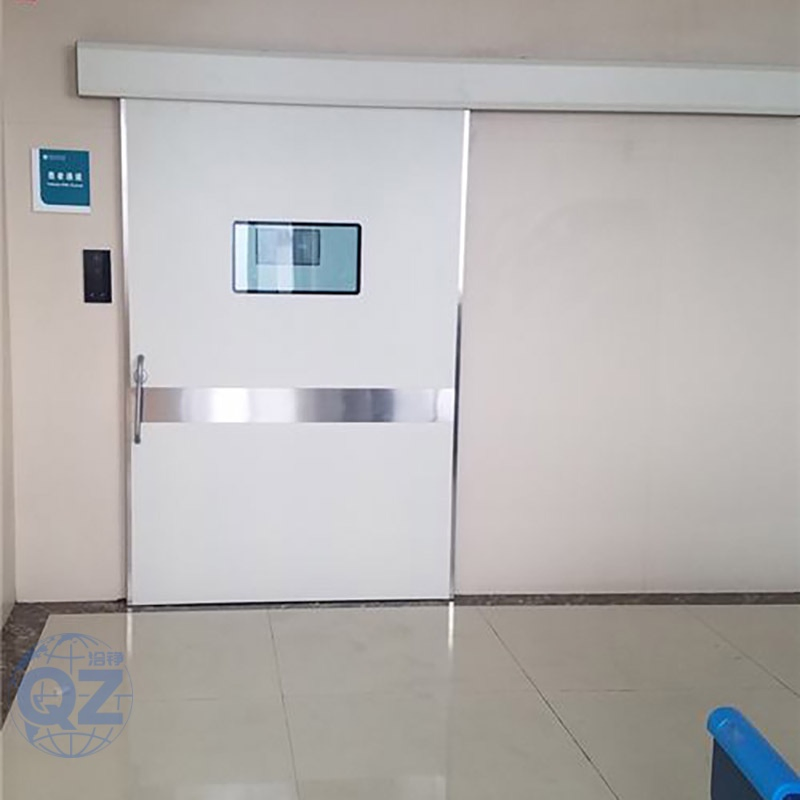

Lead Lined Door 2

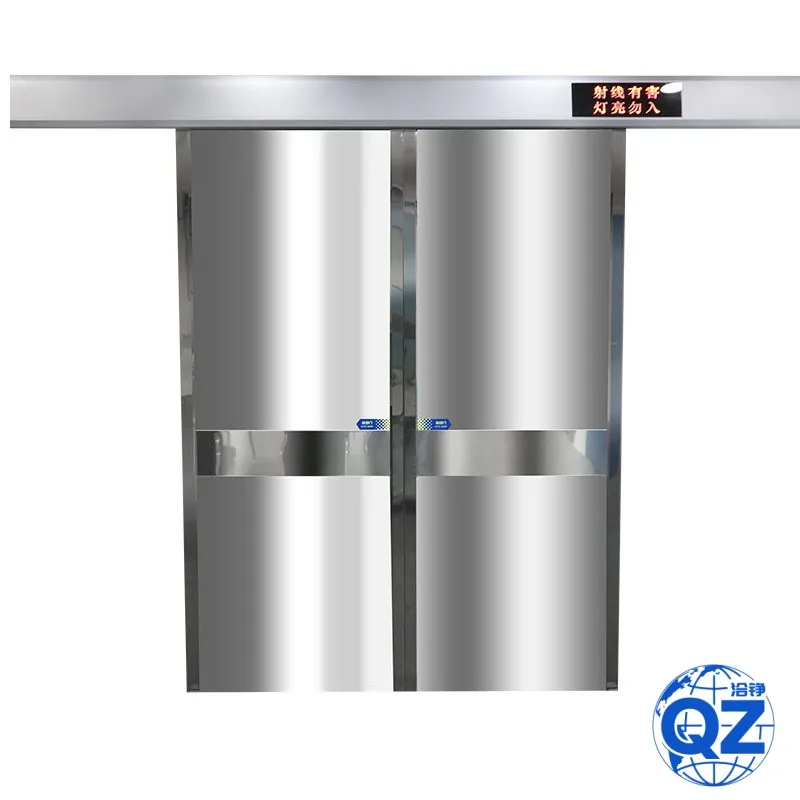

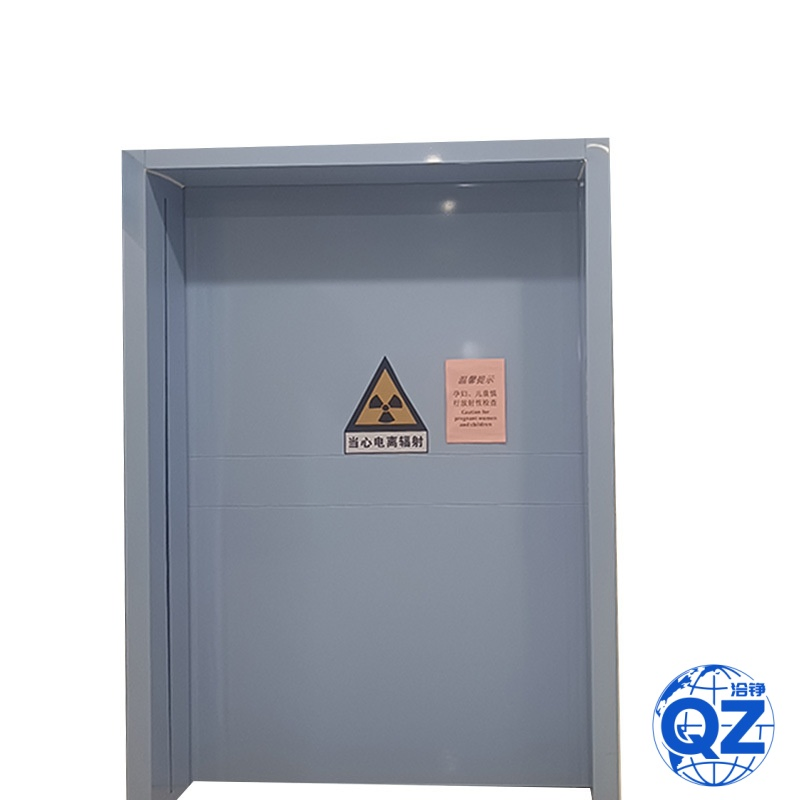

Lead Lined Door 3
Lead Lined Door 4
Technical Specification
Item Category Details & Parameters
Lead Sheet Thickness 1mm, 2mm, 3mm, 4mm, 6mm
Lead Glass Thickness (Optional) 8mm, 12mm, 15mm, 18mm, 20mm, 25mm
Lead Door Frame Materials Stainless Steel
Lead Surface Materials Stainless Steel, Color-coated Steel, Aluminum Sheet, etc
Swing Door Size Width: 700mm-1800mm Height: 1900mm-3000mm
Sliding Door Size Width: 1000mm-3000mm Height: 1900mm-3100mm
Automatic System Hand sensor switch, Feet sensor switch, Press switch
Packing & Delivery

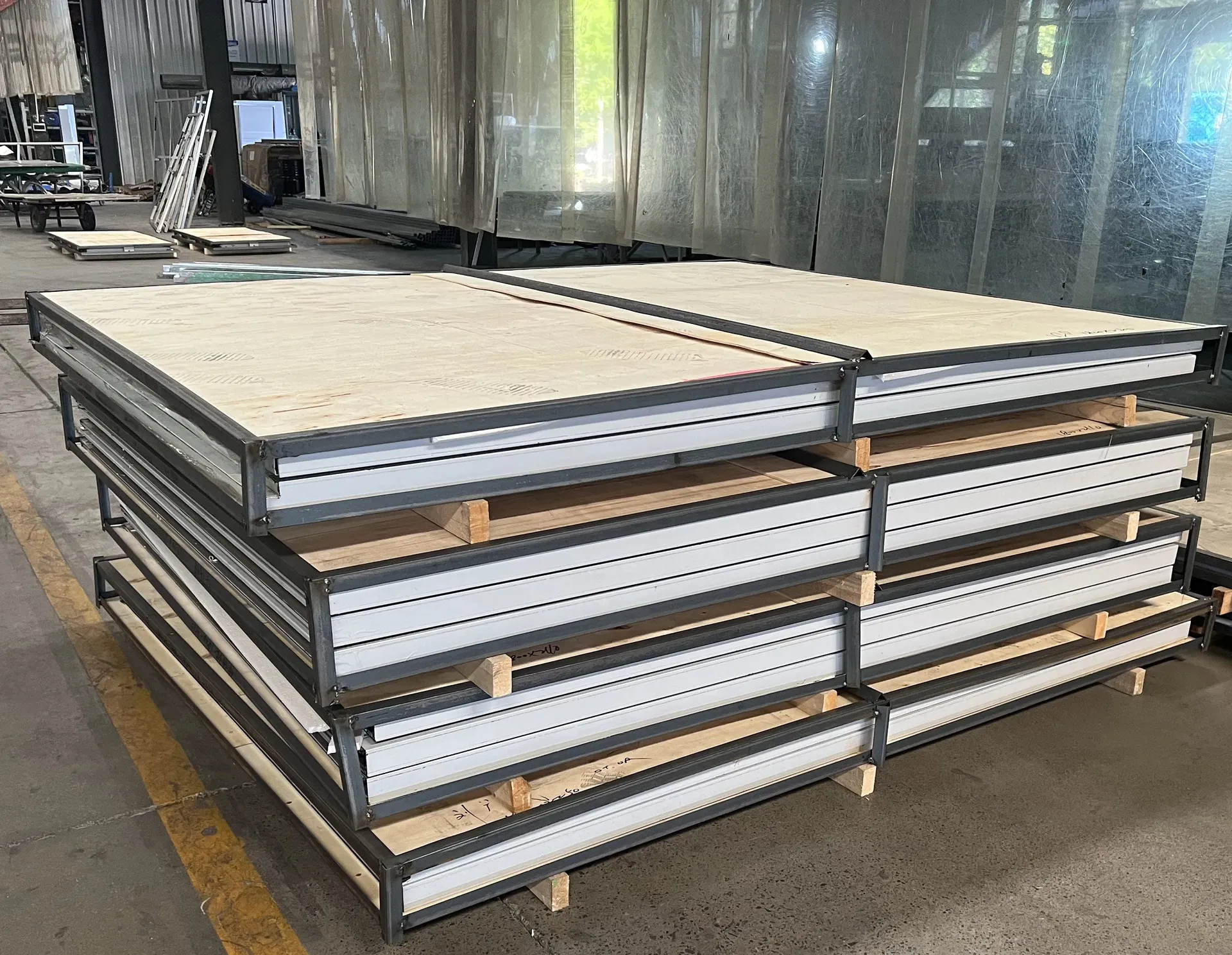

Packing
Professional Manufacturing

Our expertise lies in being a professional manufacturer, distributor, and trader of radiation shielding materials. The main product range includes high-quality lead sheets, lead glass, lead doors, lead rooms, and lead shutters. We are committed to providing excellent pricing and the best service to all our global partners and clients.

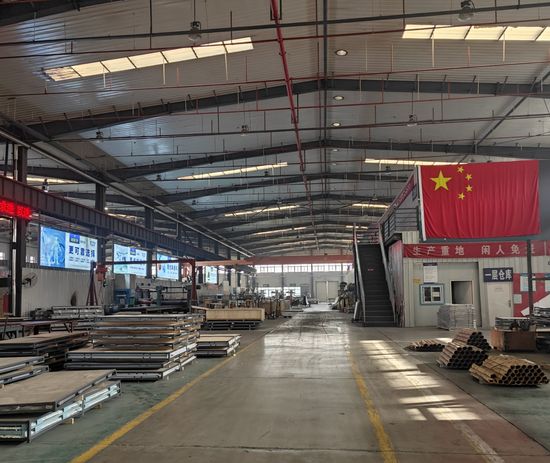

Video Placeholder

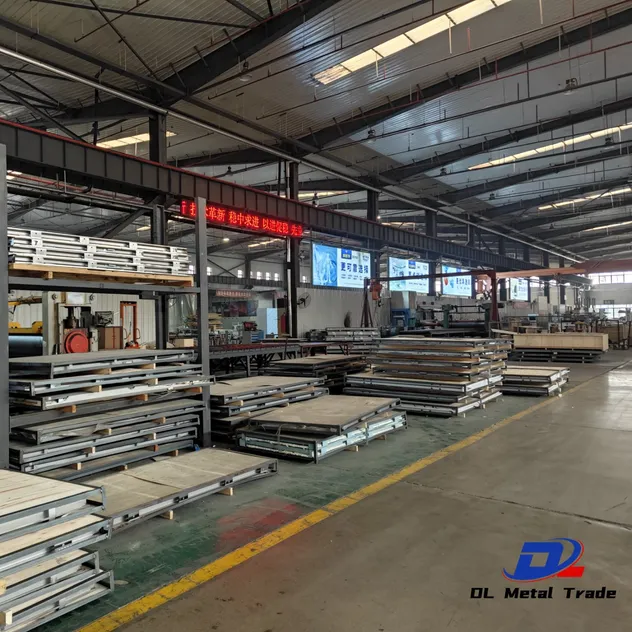

Factory Image 1

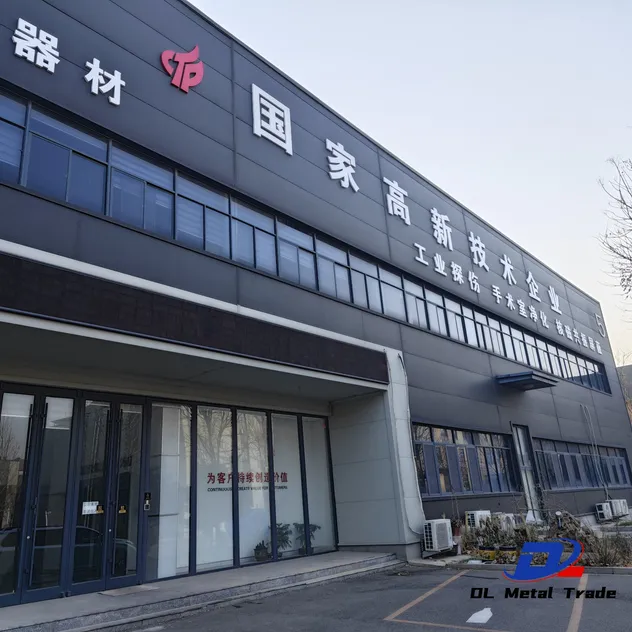

Factory Image 2

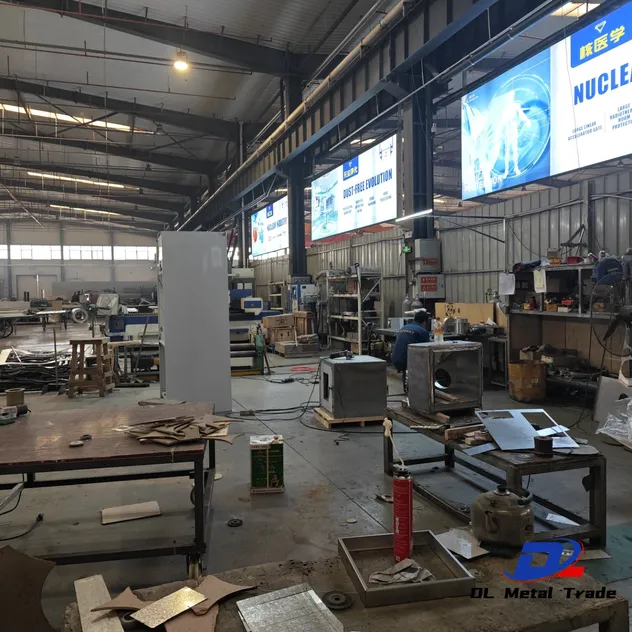

Factory Image 3
Frequently Asked Questions
What is the primary purpose of a lead-lined door?
The primary purpose is to provide radiation shielding in medical, industrial, and research environments, protecting personnel and patients from X-rays and other ionizing radiation.
What lead thicknesses are available for these doors?
Standard thicknesses range from 1mm to 6mm for lead sheets, but customized Pb equivalents up to 12mmpb can be manufactured based on specific medical physicist requirements.
Can I choose between sliding and swing opening styles?
Yes, we offer both sliding and swing configurations. Sliding doors are ideal for space-saving in hospital corridors, while swing doors are suitable for standard interior entries.
What surface materials are available for the door exterior?
The most common finishes are stainless steel, color-coated steel plates, and aluminum sheets, ensuring durability and easy cleaning in sterile environments.
Are the doors compatible with automatic sensor systems?
Absolutely. Our doors can be integrated with hand sensor switches, foot sensors, or press switches for hands-free operation in surgical and clinical settings.
Can lead glass viewing windows be added to the doors?
Yes, optional visual windows using specialized lead glass (8mm to 25mm thickness) can be installed to allow safe observation of the radiation area.
