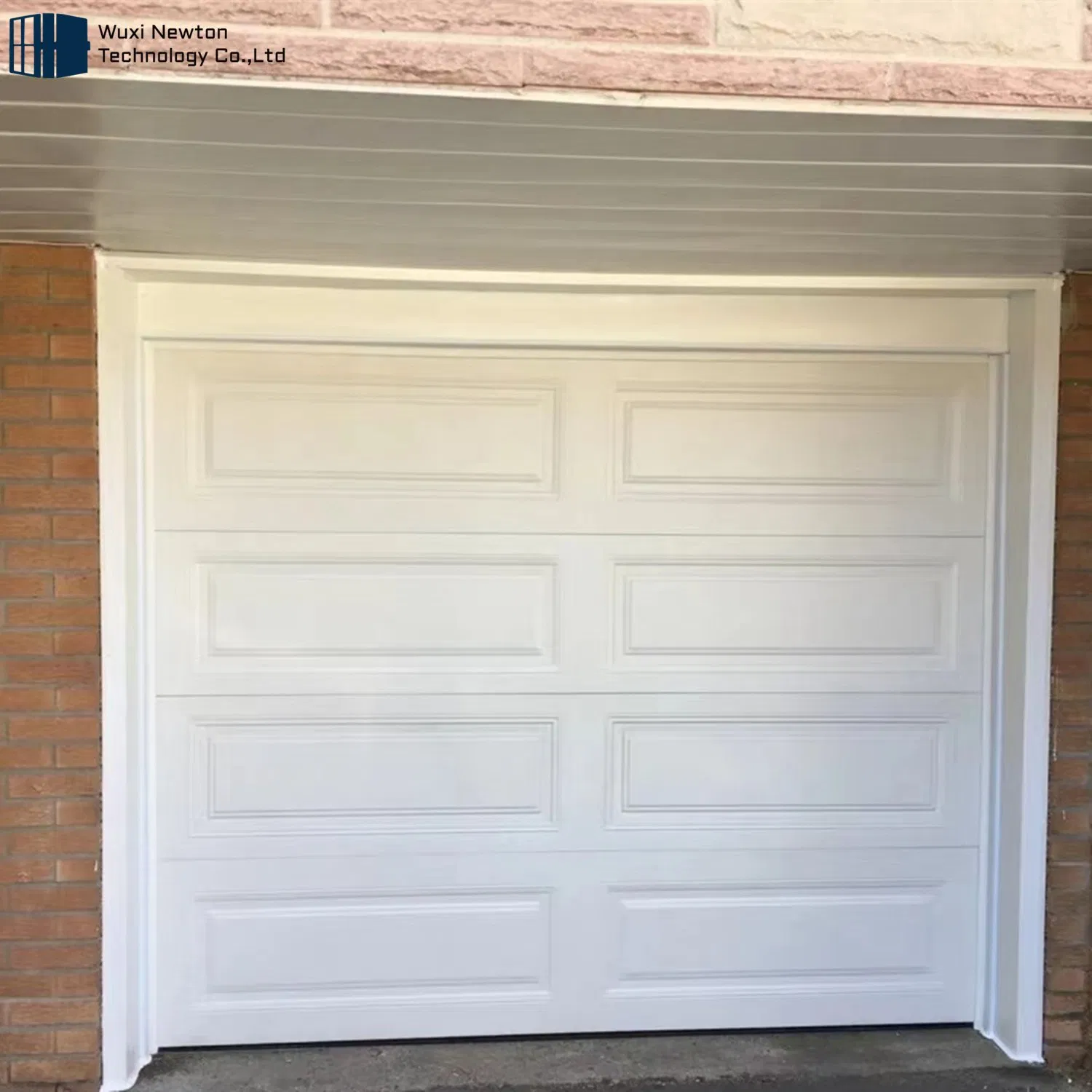

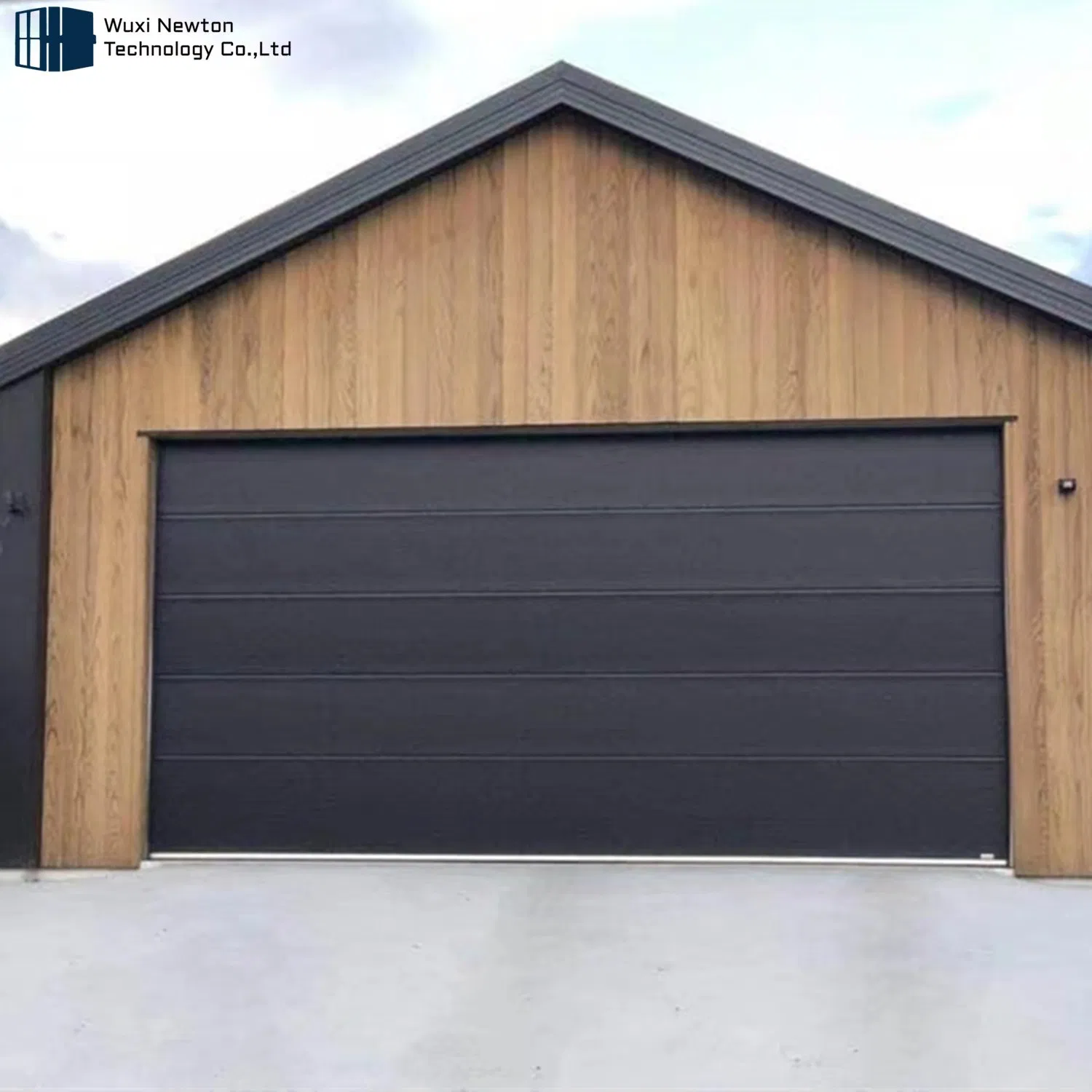

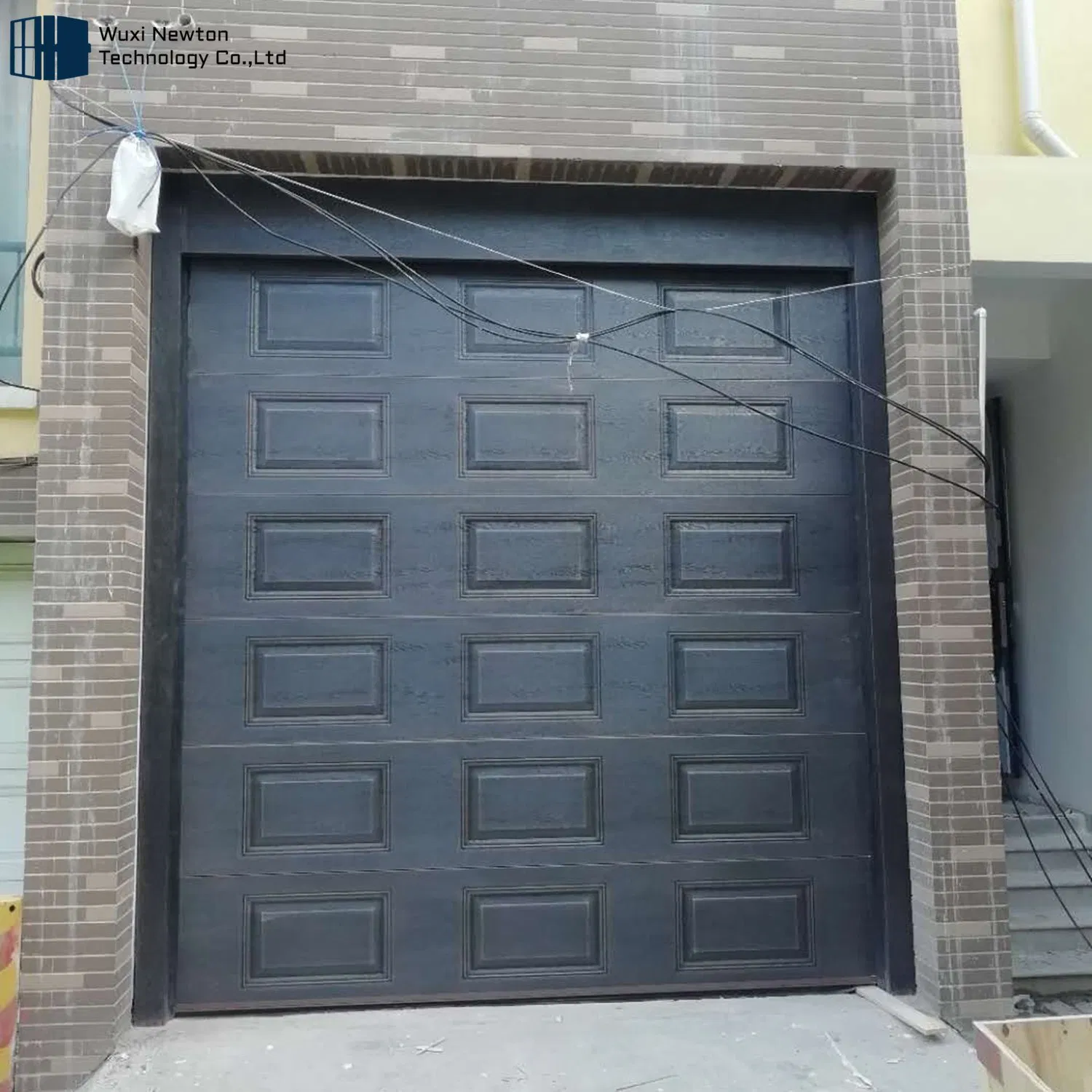

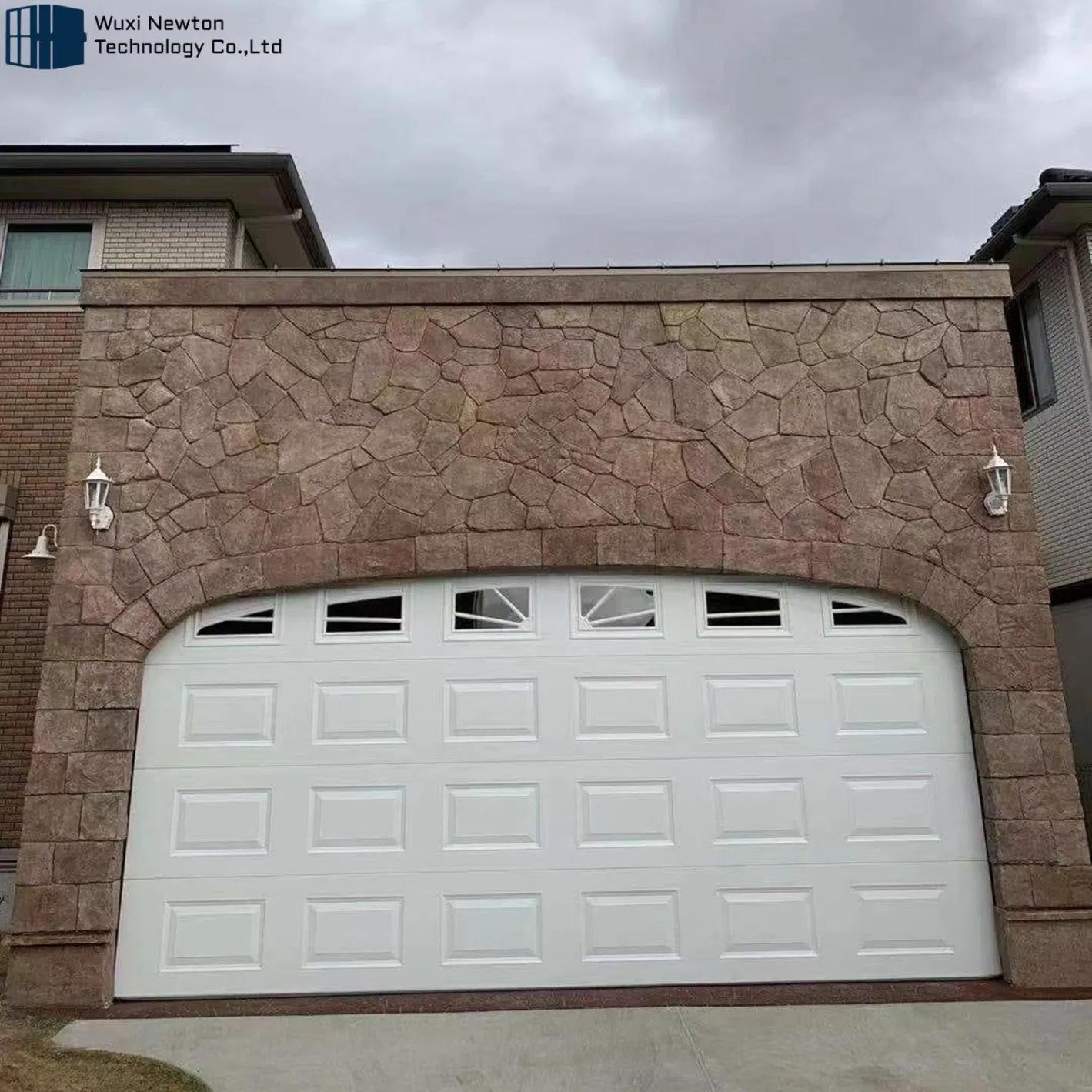

Factory Direct Modern Design Automatic Metal Sectional Aluminum Industrial Steel Garage Door

i

Basic Specifications

Model NO.

NTGD

Material

Steel

Thickness

40mm, 43mm, 50mm, 75mm Polyurethane Foam

Opening Style

Overhead

Opening Type

Remote Control / Wall Switch / Manual

Output Torque

600n/ 800n/ 1000n/ 1200n

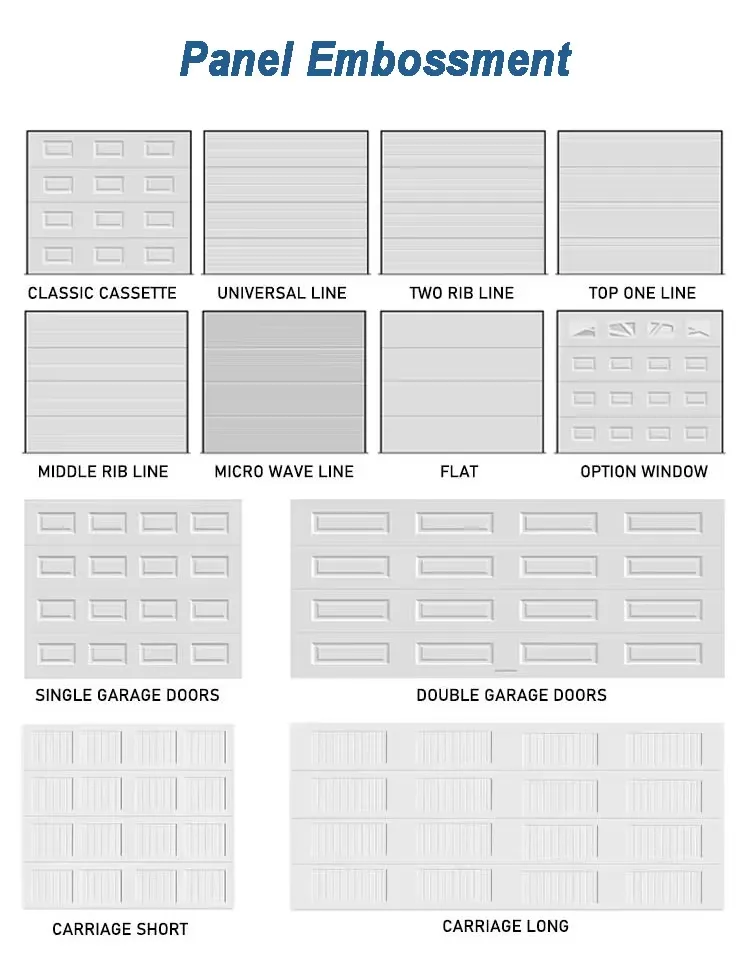

Door Panel Pattern

Square, Linear, Stucco, Wavy

Color

White, Silver Grey, Golden Oak, Black Walnut etc

Panel Density

40kg/M³

Internal Steel Plate

1.0mm Thickness / 16mm Width

Panel Model

Finger Safe / Non Finger Safe

Applicable Temp

-60 ~ +100 Degree

External Material

Hot-Dipped Galvanized Steel

Hardware Quality

Meet Latest EN13241 Standard

Production Capacity

50,000 SQM Per Month

HS Code

73083000

✓

Product Description

Panel Material	1. Aluminum door panel with polyurethane foam filled 2. Galvanized steel plate with polyurethane foam filled (Steel: 0.326mm-0.5mm)

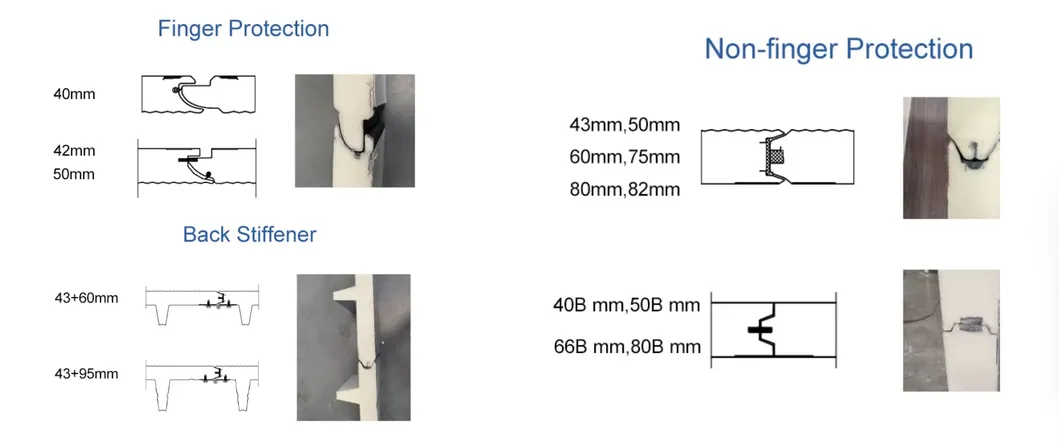

Panel Thickness	Anti-pinch finger: 40mm; Ordinary board: 43/50/75mm
Track System	Single track: lintel > 35cm; Double track: lintel available

★

Product Selling Points

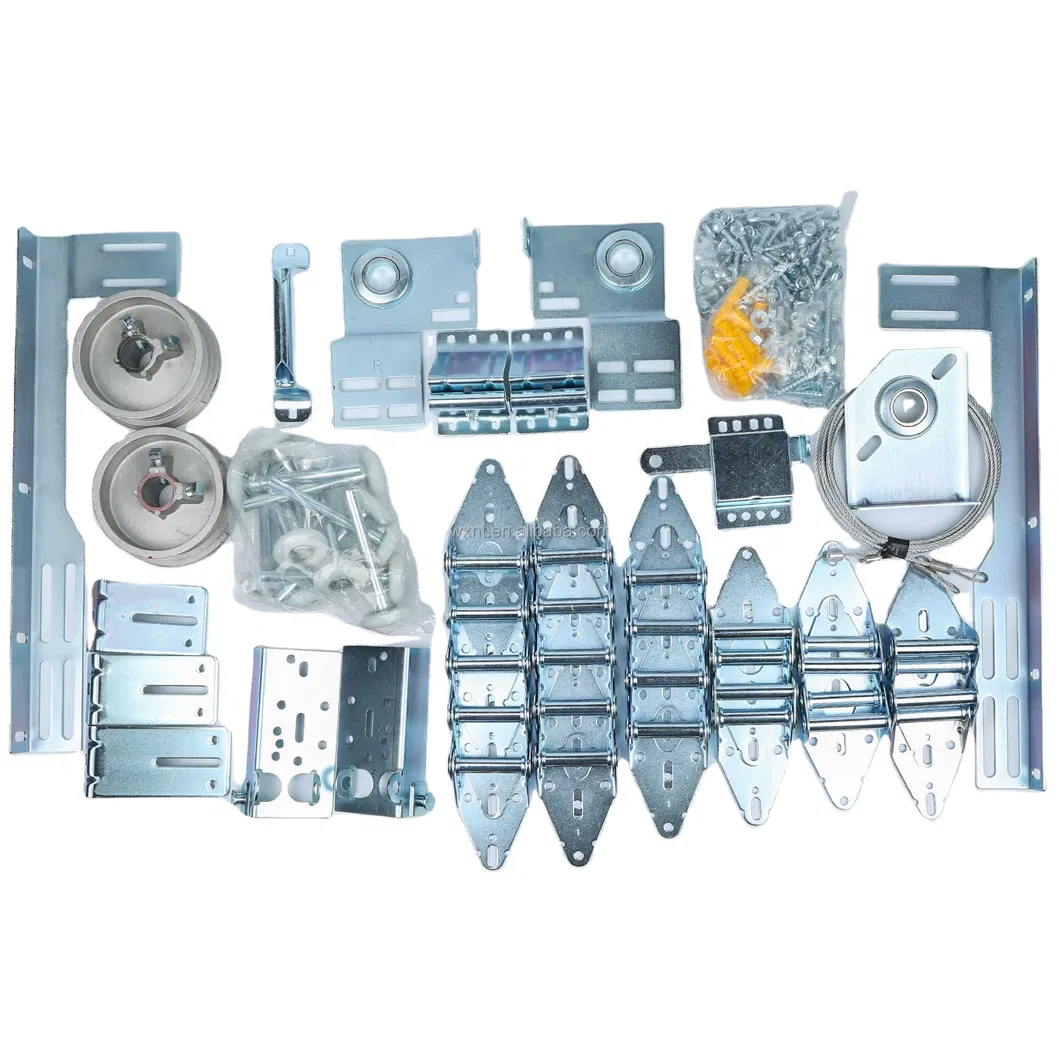

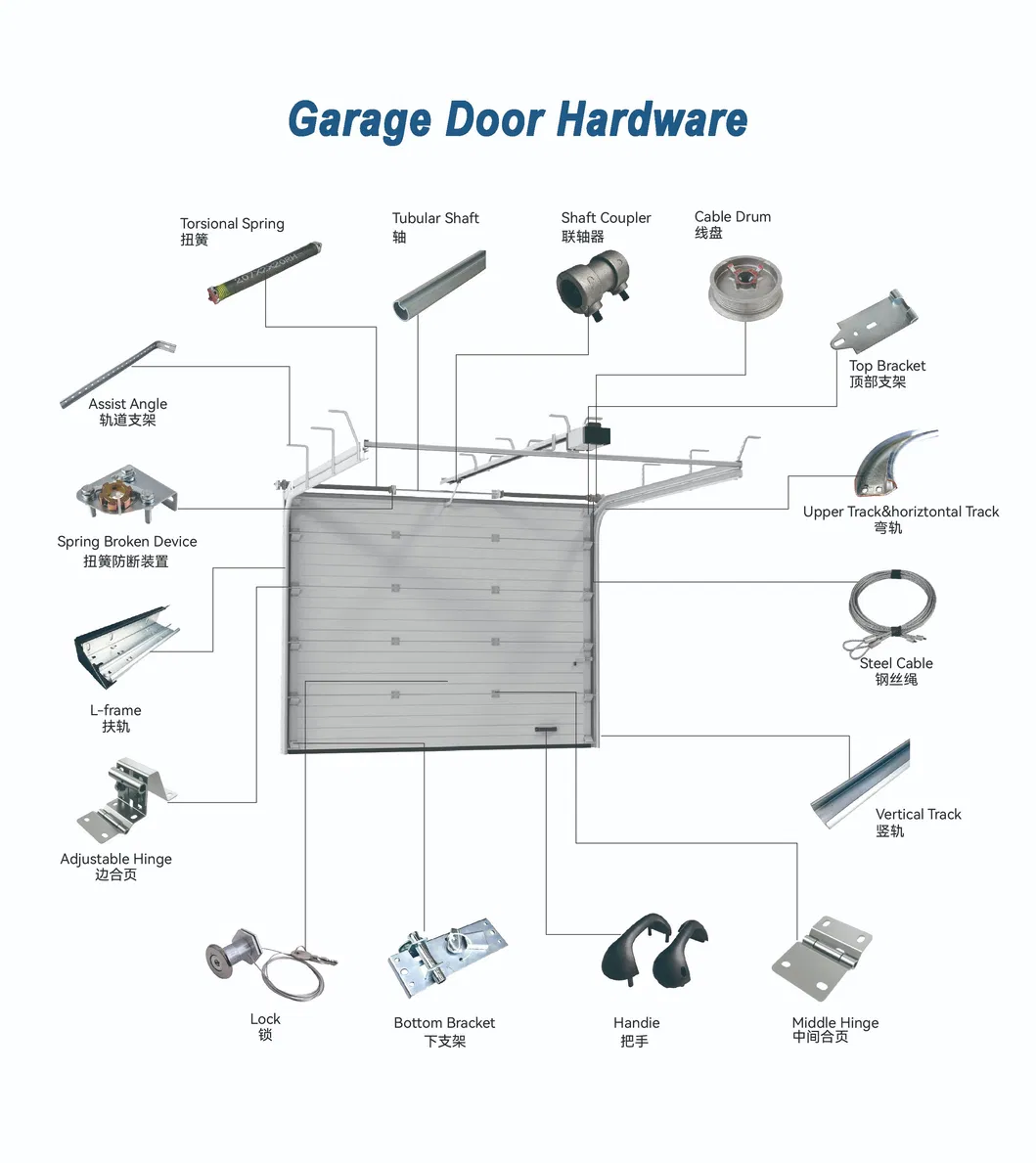

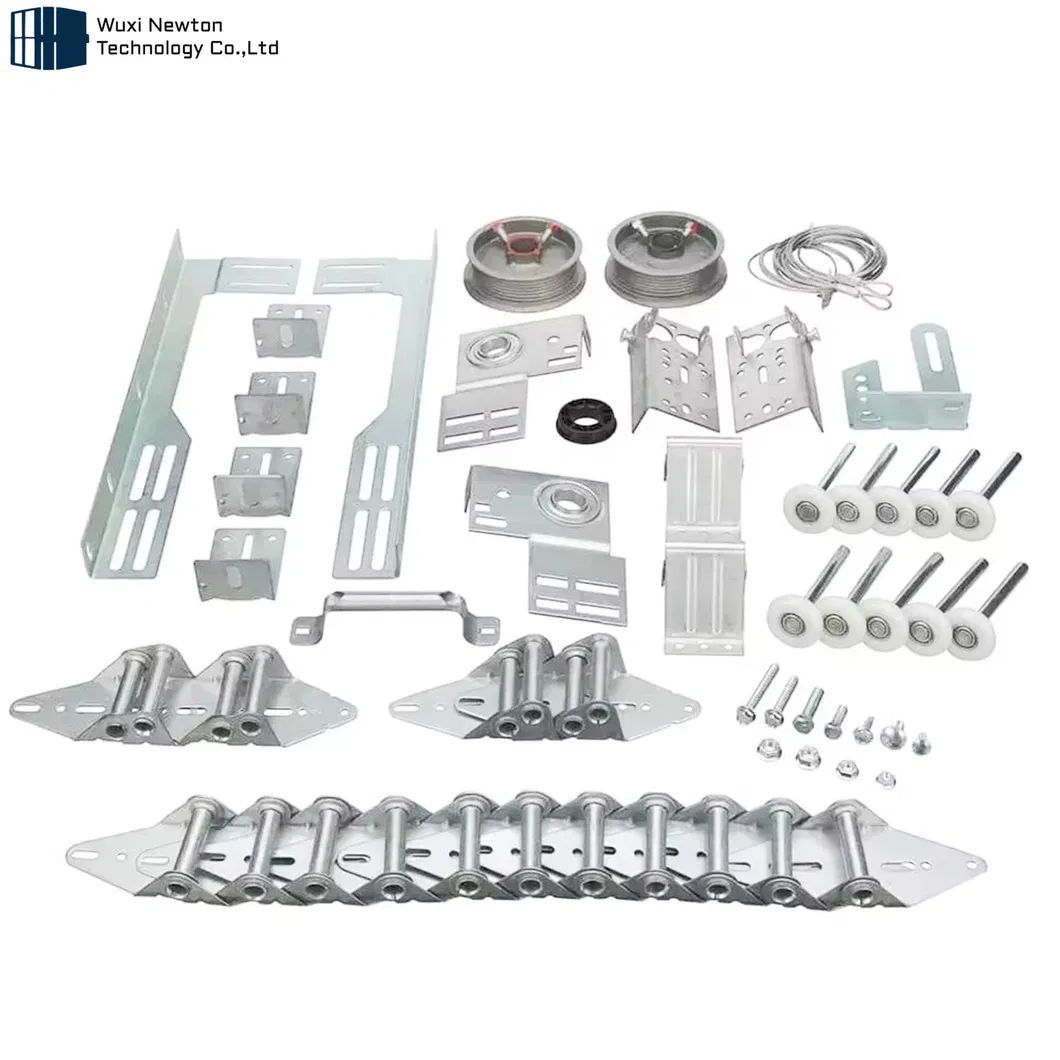

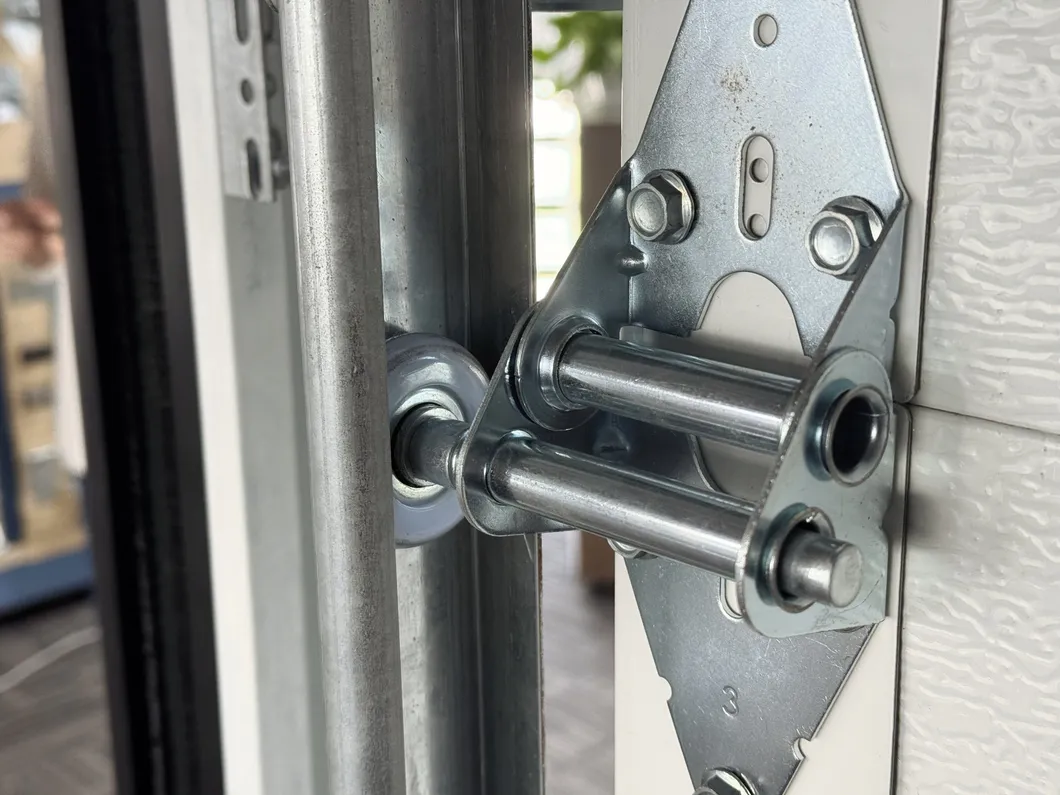

Scroll Wheel and Tracks

High load smooth bearings, silent nylon wheels, and high quality solid metal rods for quiet operation.

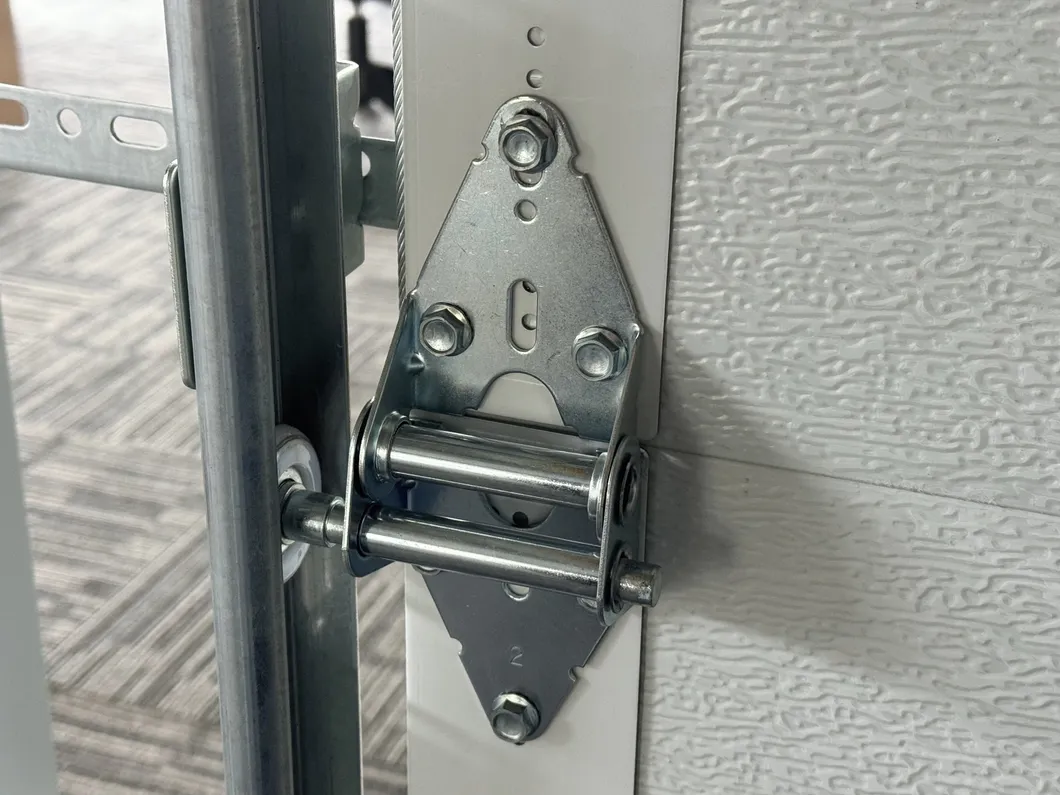

Garage Door Hinges

High-quality stainless steel hinges, flexible rotation, strong load-bearing capacity and long-term durability.

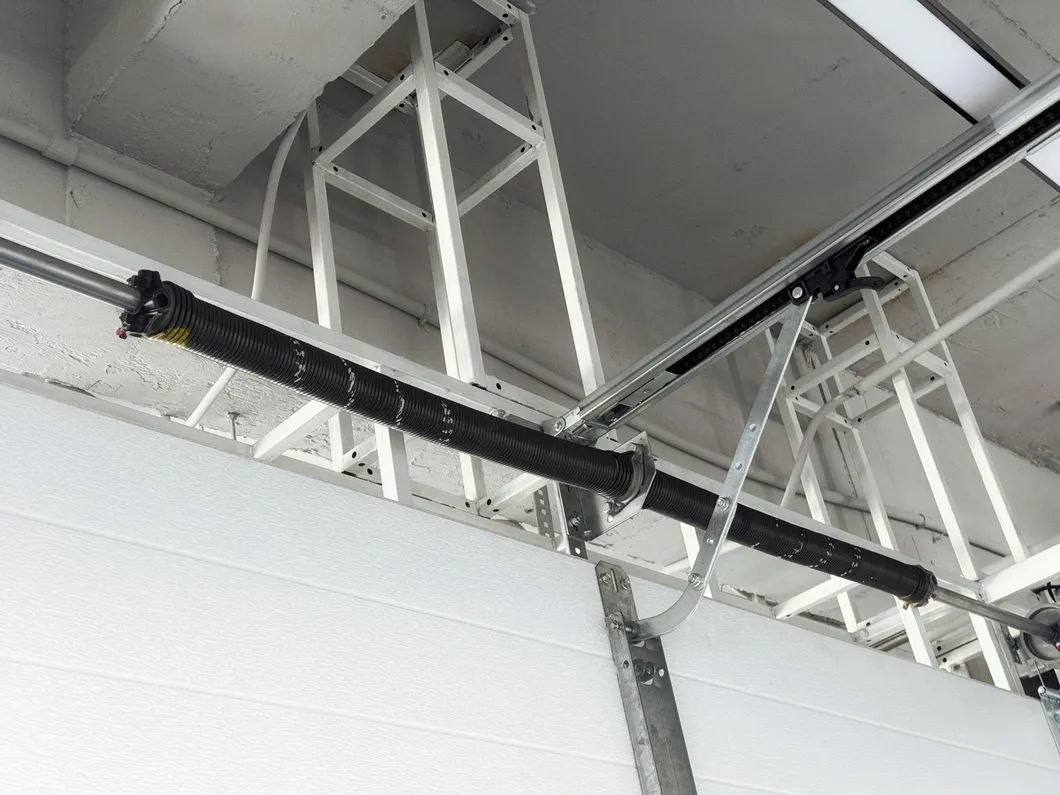

Torsional Spring

High-strength balanced weight torsion spring designed to extend the service life of the motor and ensure smooth lifting.

⚙

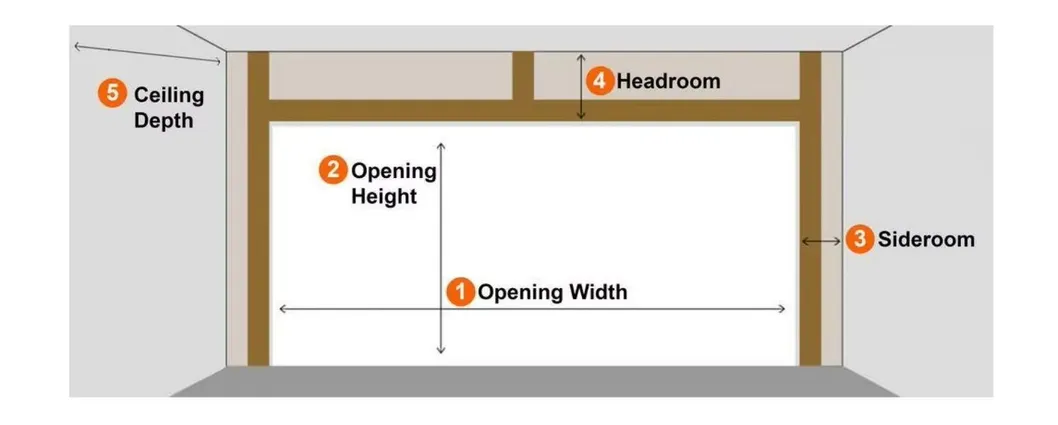

Customization & Measurements

1. Opening Width: Distance between each side of the opening.

2. Opening Height: Distance from floor to top of the opening.

3. Sideroom Width: Area from opening to the corner of the wall.

4. Headroom Height: Space from top of opening to the ceiling.

5. Ceiling Depth: Distance from the opening to the back of the garage.

M

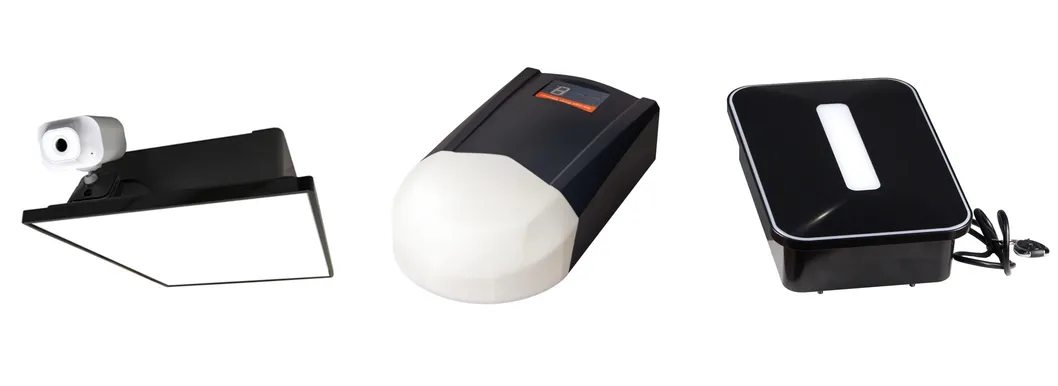

Garage Door Motor Specs

Model	NT600	NT800	NT1000	NT1200
Input Voltage	230-240VAC 50/60Hz
Power Input	200W	235W	245W	260W
Max Pulling Force	600N	800N	1000N	1200N
Door Area	10m²	12m²	14m²	16m²

?

Frequently Asked Questions

Q1: Are you a professional manufacturer? A: Yes, we have been a manufacturer in this industry for more than 20 years, serving customers globally with high-quality door solutions.

Q2: What types of doors do you specialize in? A: Our range includes automatic/manual industrial folding doors, sectional garage doors, high-speed PVC doors, thermal insulated doors, and hydraulic dock levelers.

Q3: Is customization available for specific dimensions? A: Yes, we provide full customization services to meet your specific size, color, and material requirements.

Q4: Can I request a product sample? A: Yes, we can provide free samples. Please note that shipping costs are typically covered by the requester.

Q5: What is the typical lead time for orders? A: Generally, our lead time is 15-20 days once the deposit is received and specifications are confirmed.

Q6: What are your standard payment terms? A: We typically accept TT (Telegraphic Transfer), with a 30% deposit and the 70% balance paid against the Bill of Lading.
