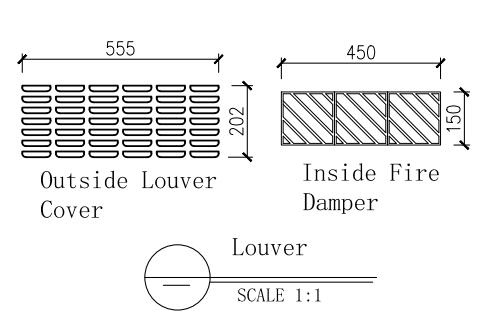

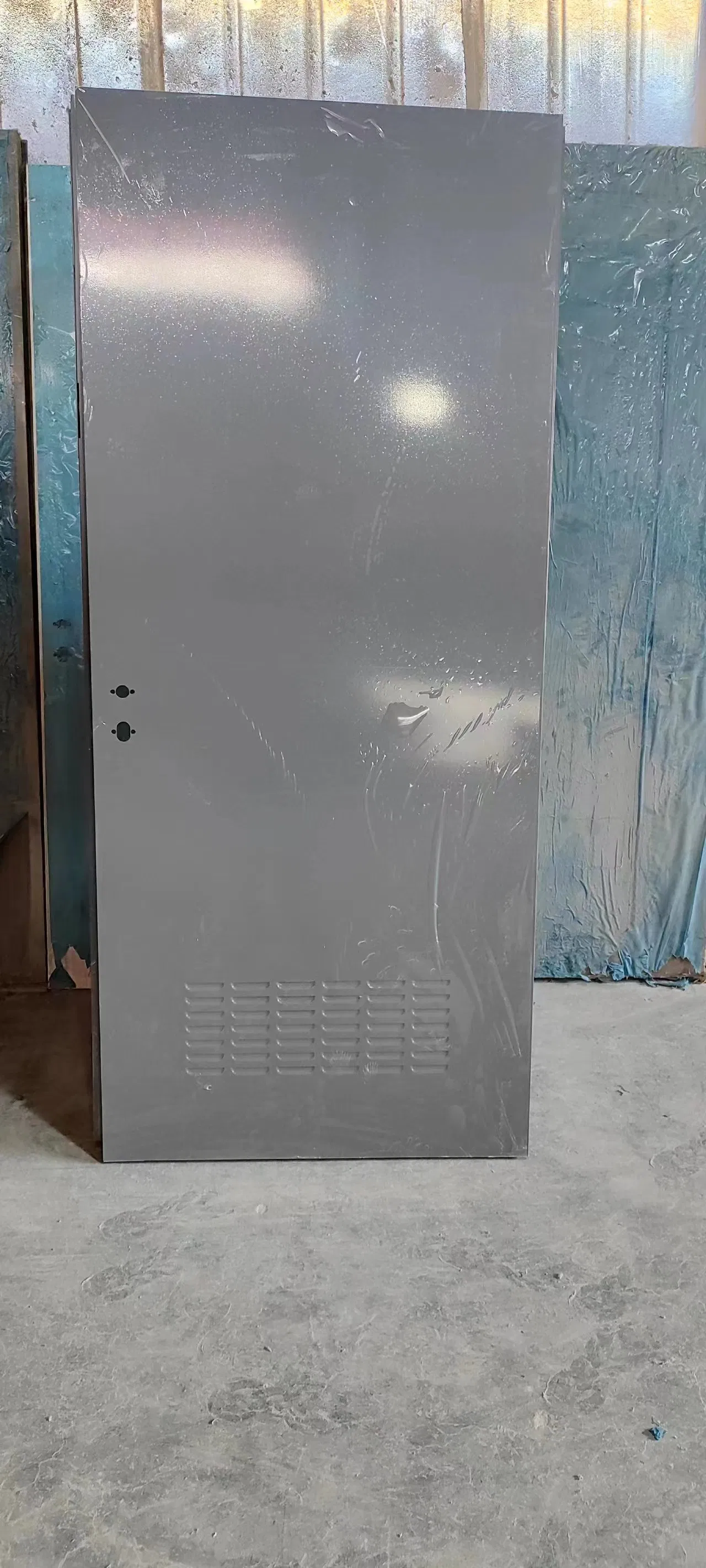

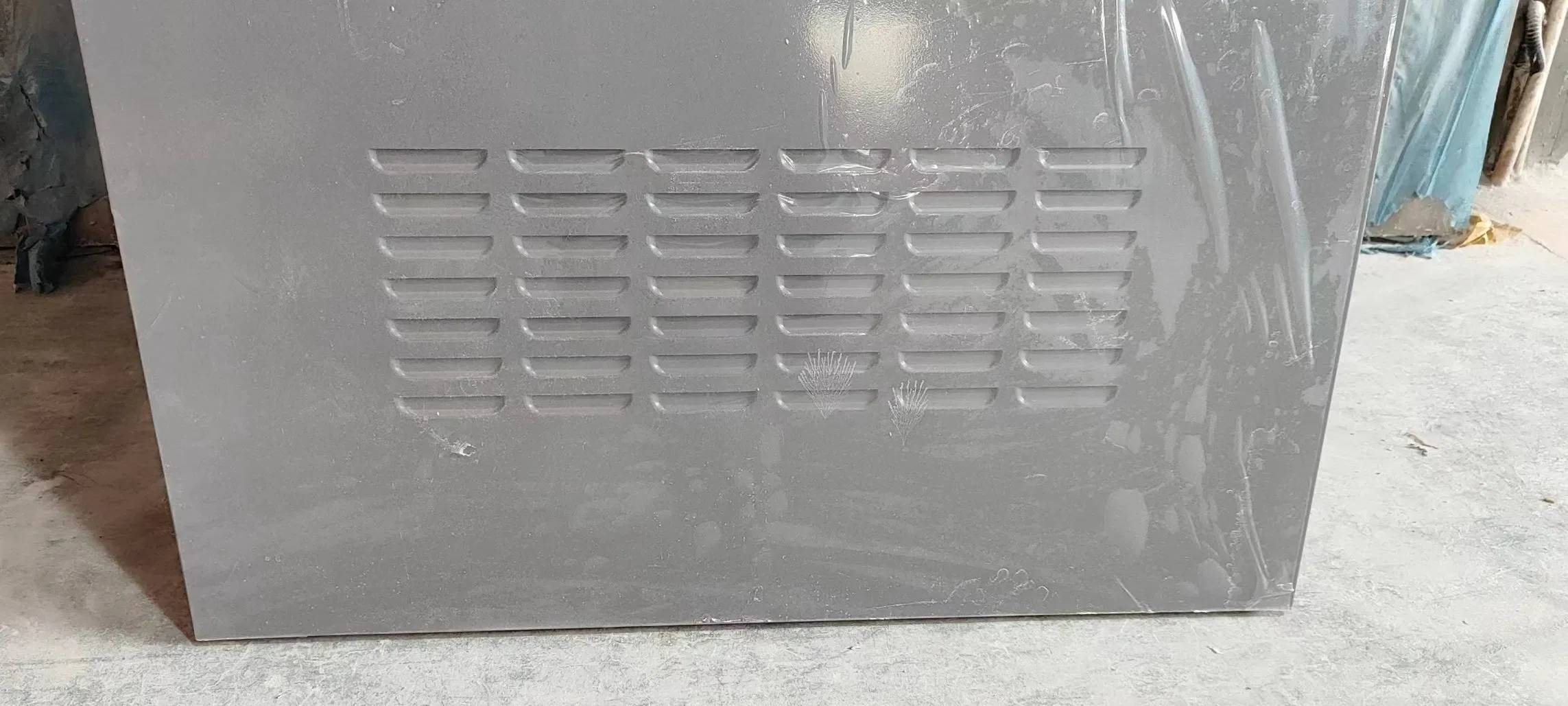

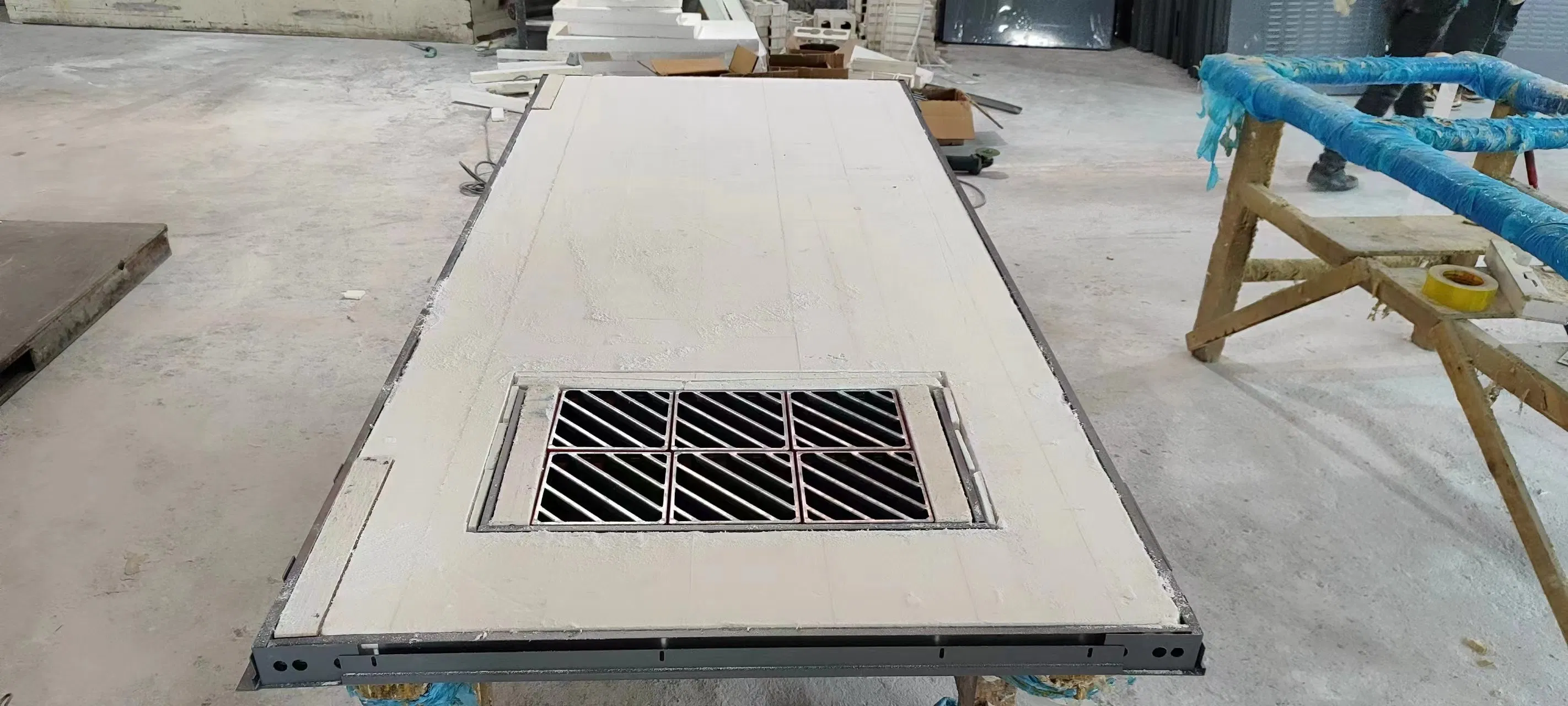

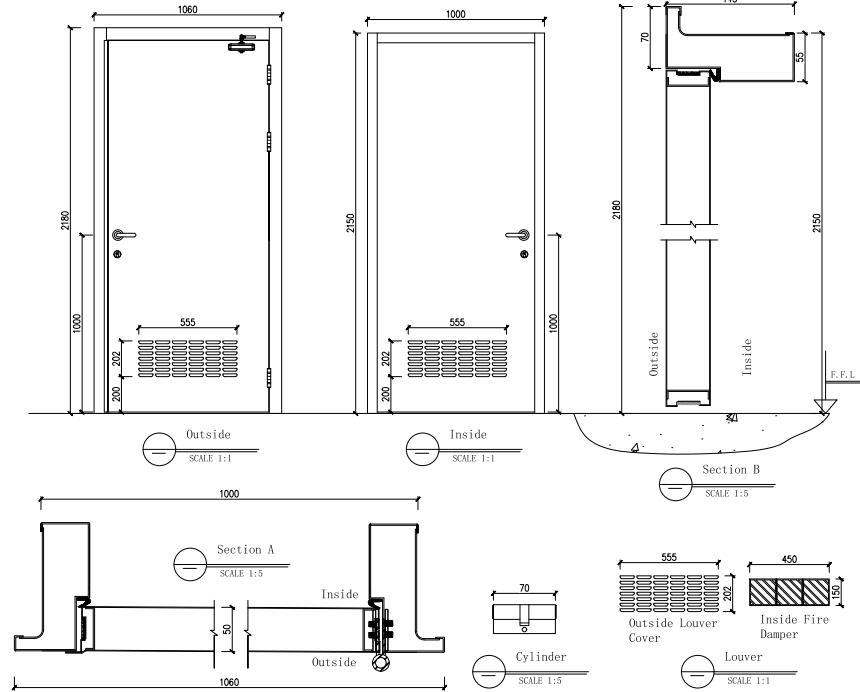

UL Certificated Louver Door Customized Fire Rated Steel Louvered Door

Customization: Available
After-sales Service: Online Technical Support
Application: Cable Well, Discharge Flue, Elevator Room, Stairway

Product Description

📋

Overview & Basic Info

Model NO.
FD-2023036
Material
Steel
Thermal Insulation
Fully Insulated Doorsets
Fire Rated Time
120 Minutes
Special Door Type
Fire Doors
Certificated
UL Listed
Warranty
2 Years
Open Style
Swing
Surface Finishing
Finished
Security Rating
C
🛡️

Product Description

Our UL Listed Fire Rated Steel Doors are designed and manufactured to provide the highest level of safety and protection for commercial, industrial, and institutional buildings. These doors are constructed with high-quality materials and are engineered to withstand the most severe fire conditions. In addition, the doors are equipped with a panic bar and trim, ensuring easy and quick egress during emergency situations.

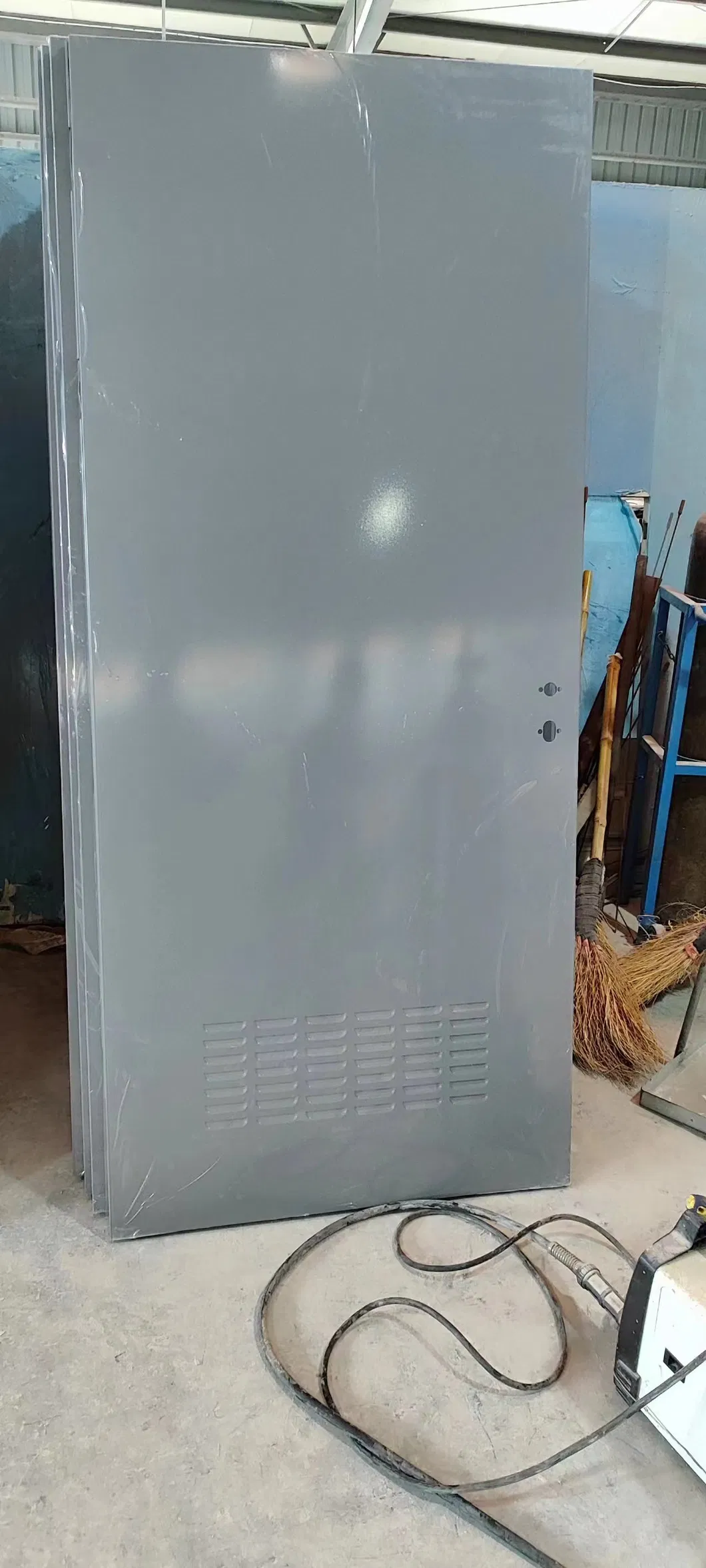

UL Certificated Fire Rated Steel Door
UL Listed and Fire Rated: The steel doors have been rigorously tested and certified by Underwriters Laboratories (UL) to meet specific fire resistance standards. Available in various ratings: 20, 45, 60, 90, and 180-minute.

Robust Construction: Made from heavy-duty, galvanized steel. The door core is filled with fire-resistant insulation material (Perlite or Rockwool) for superior thermal protection.

High-Quality Finish: Finished with factory-applied powder-coated paint, resistant to scratches, corrosion, and fading.
📸

Detailed Photos

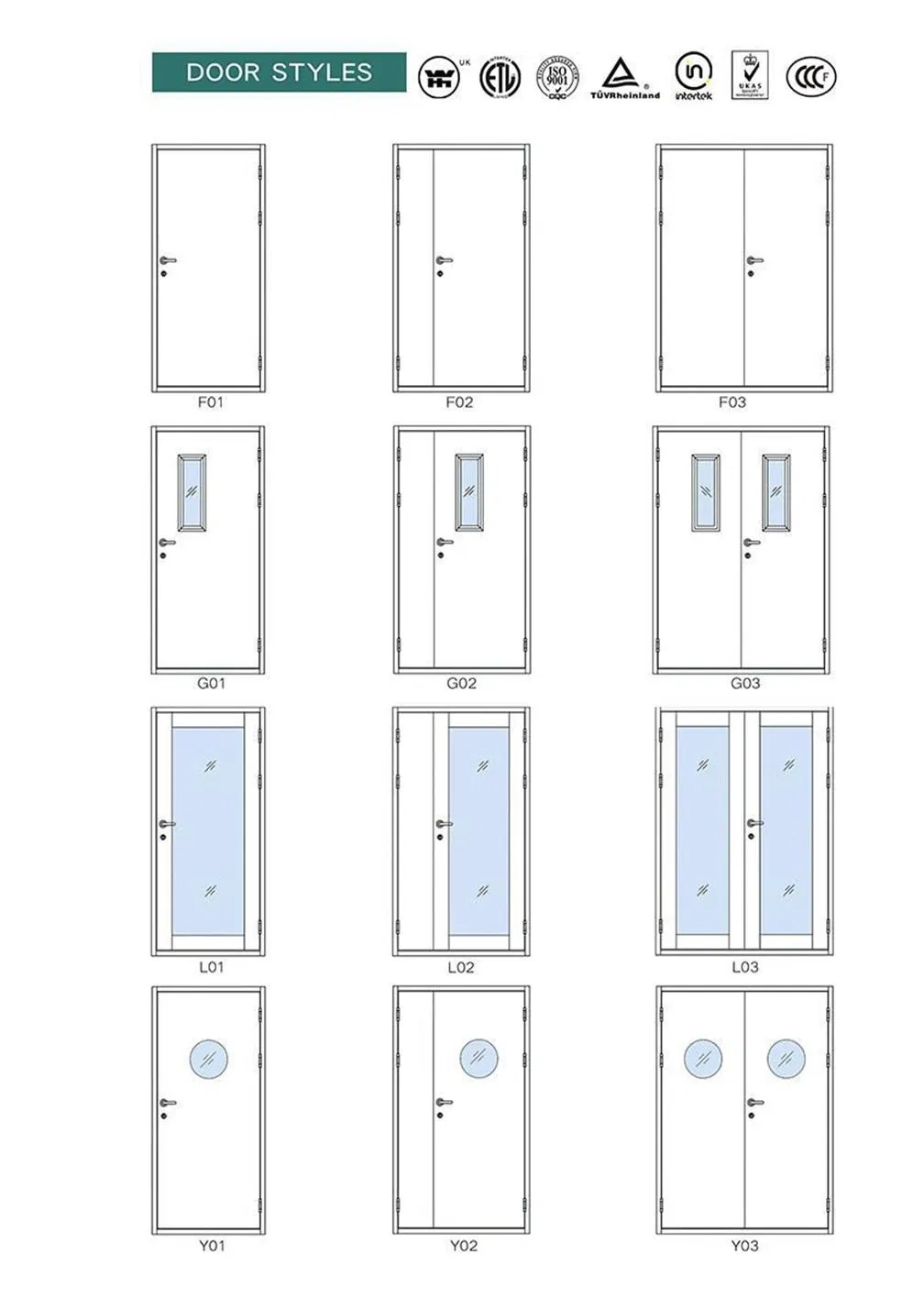

Door Detail 1

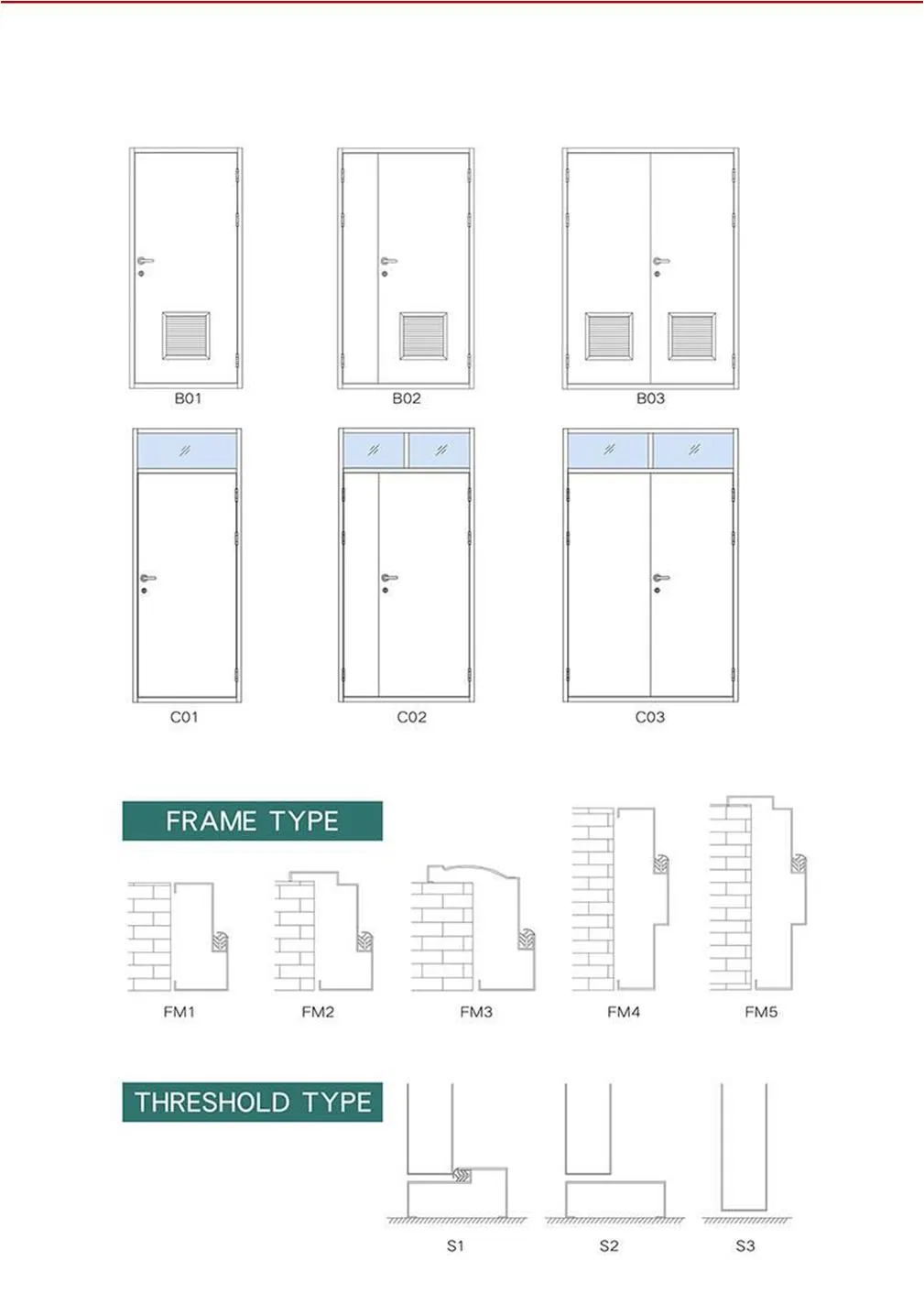

Door Detail 2

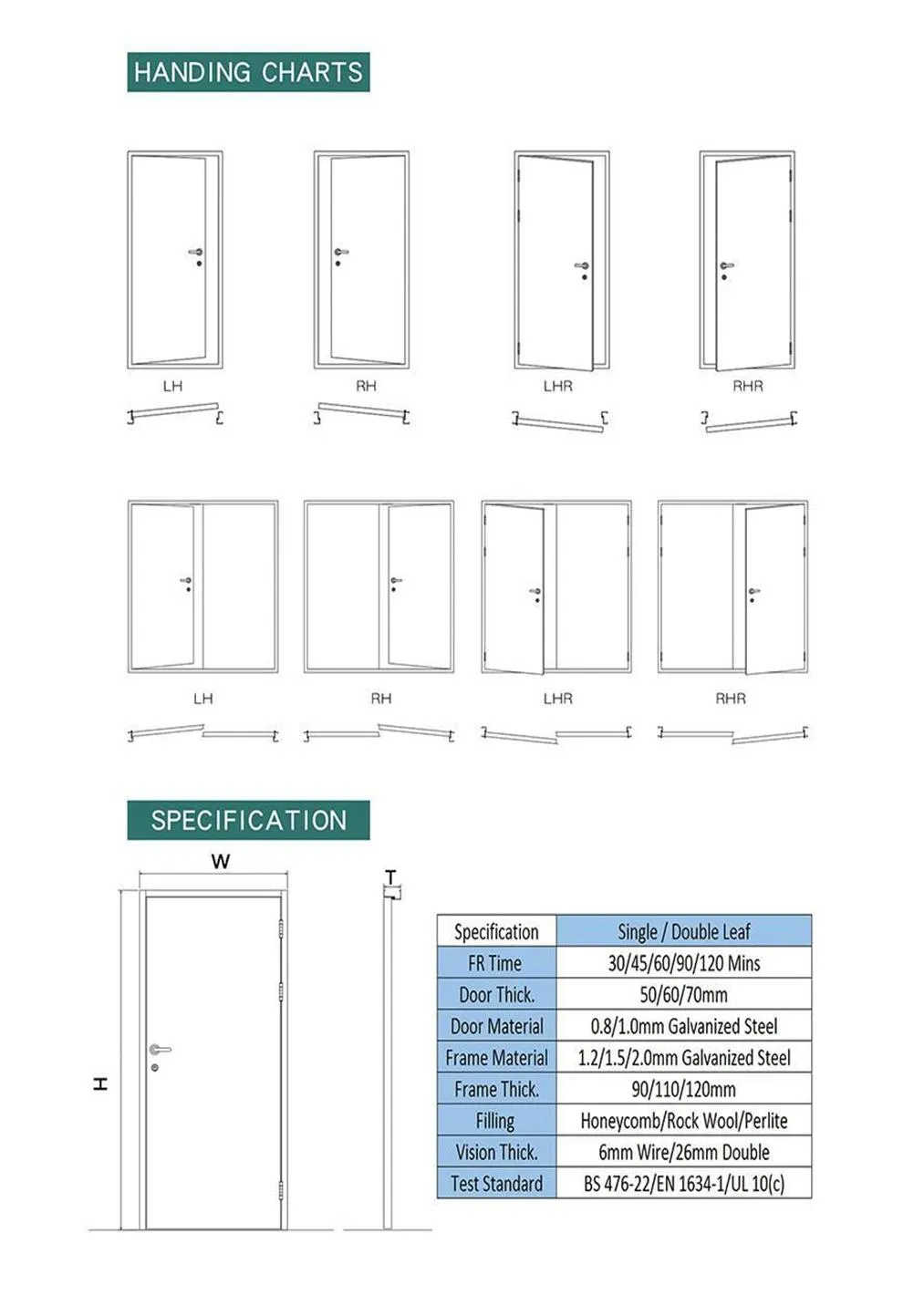

Door Detail 3
Door Detail 4

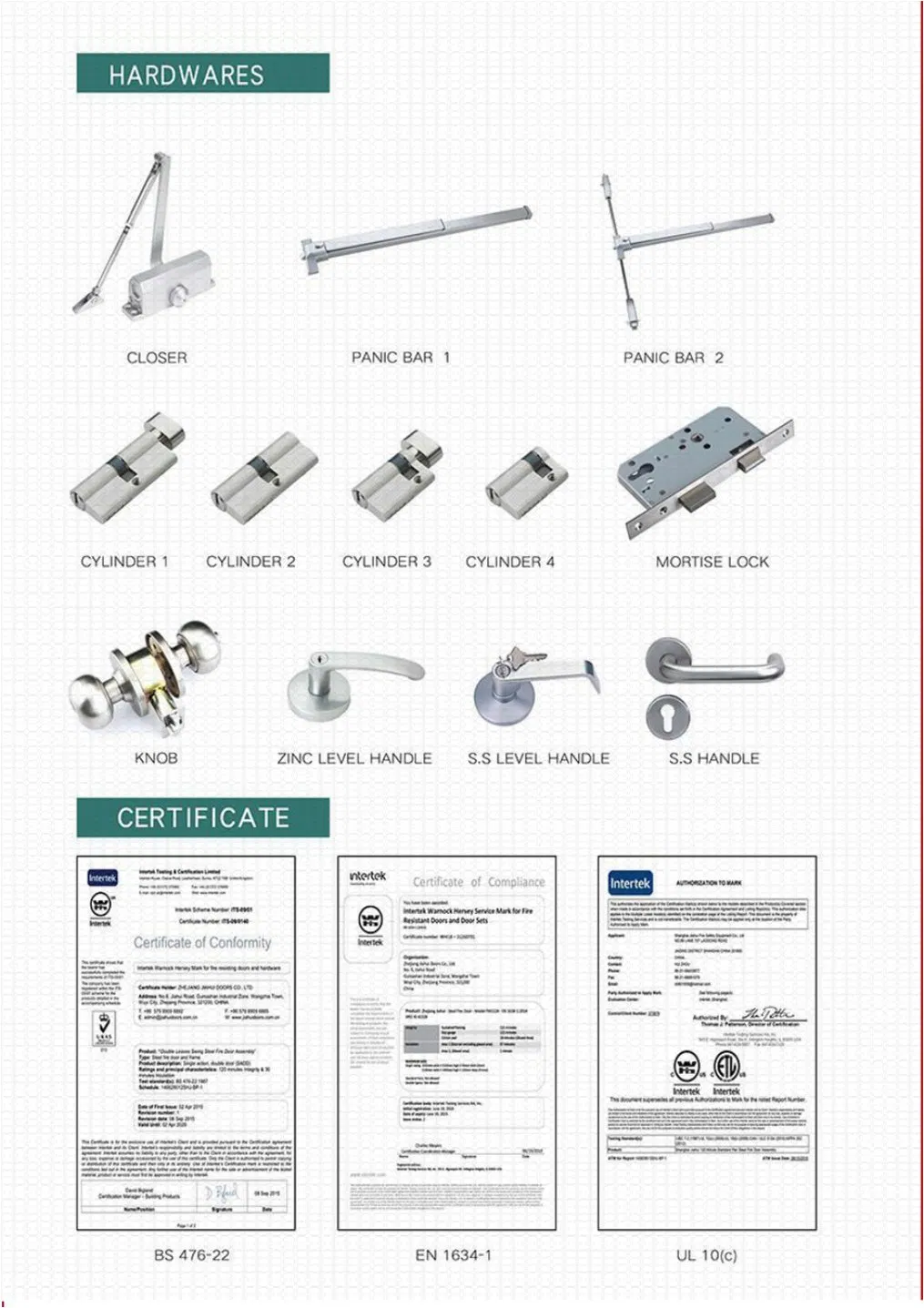

Door Detail 5

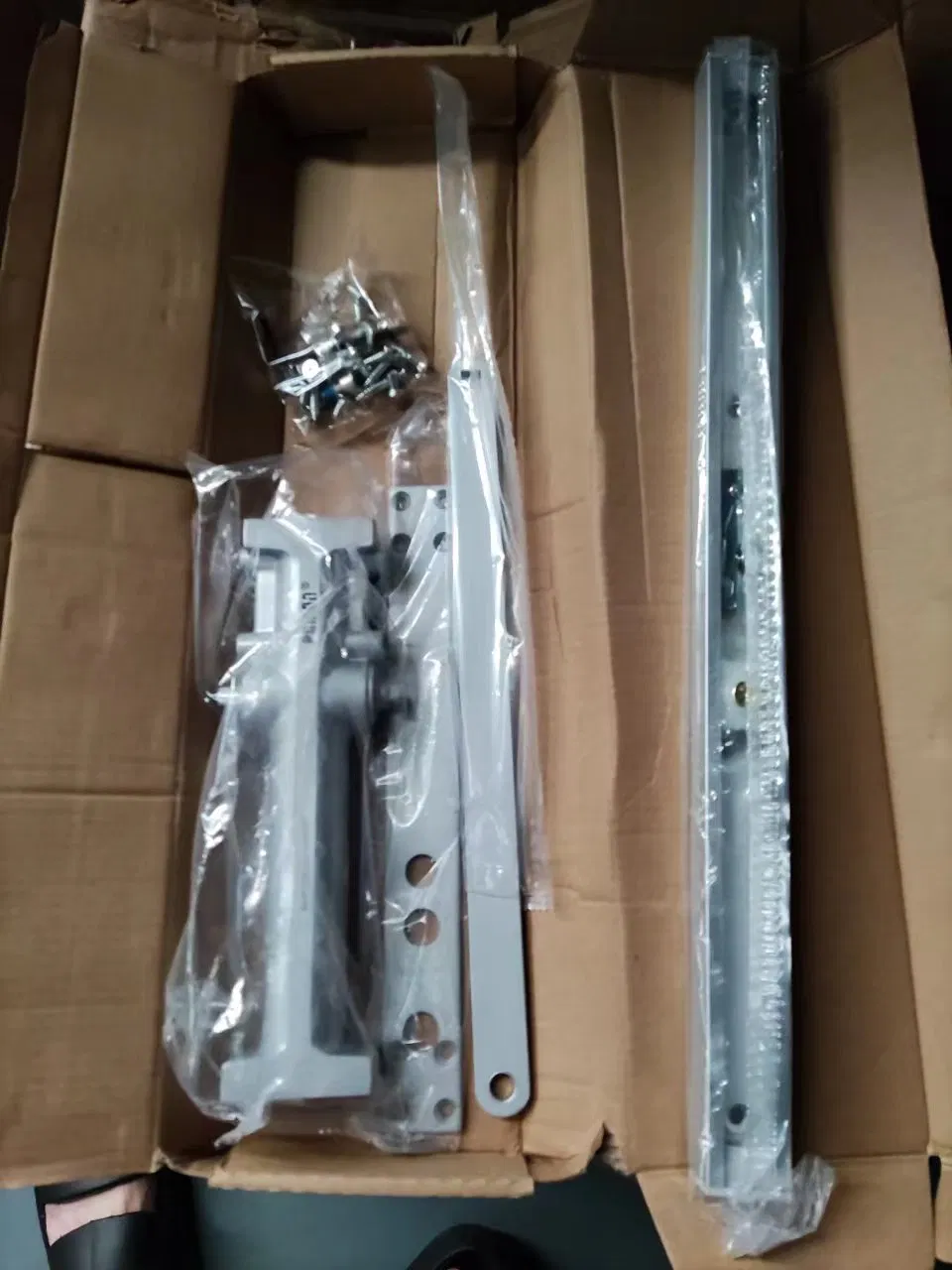

Door Detail 6

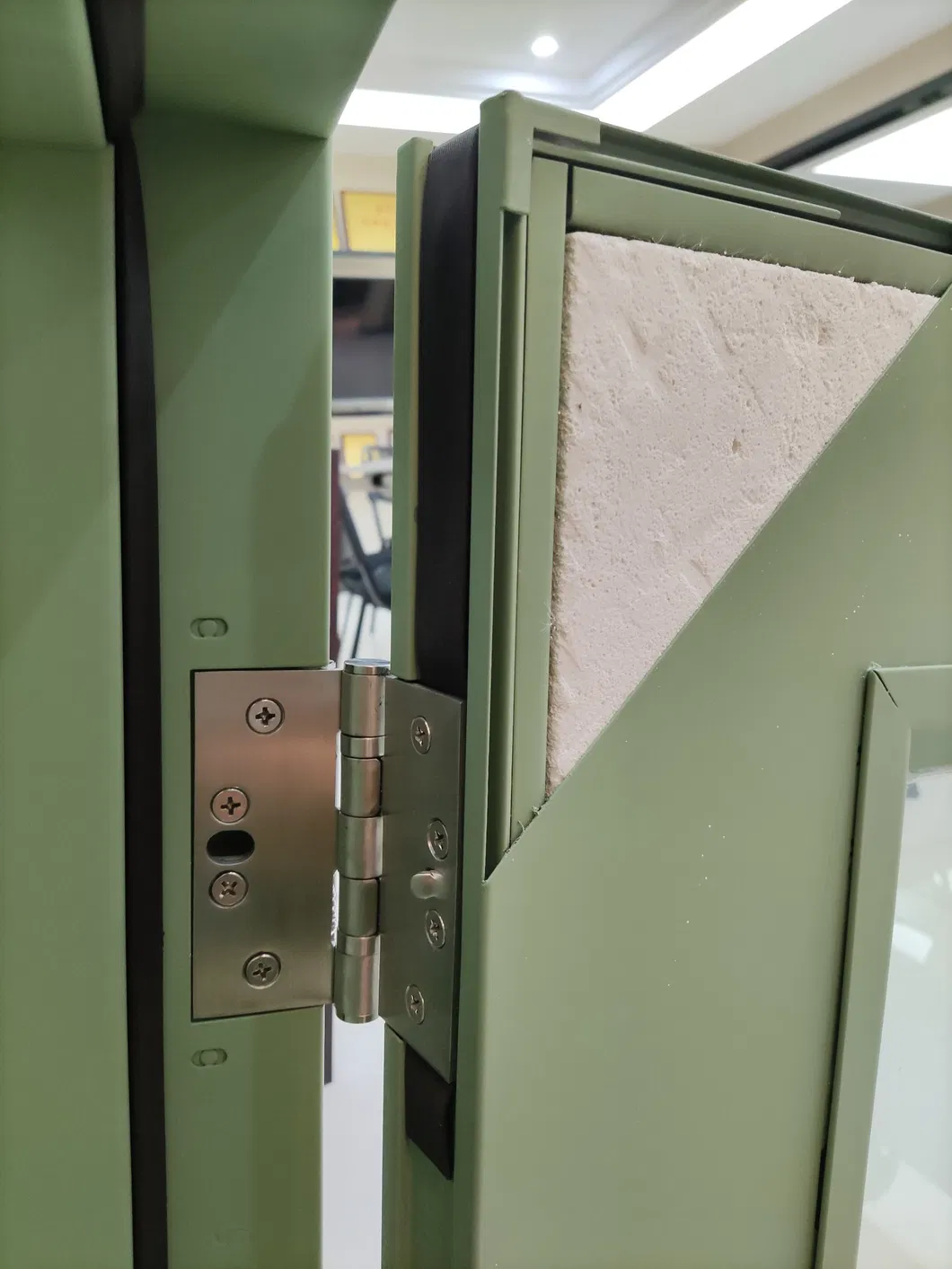

Hardware Detail 1

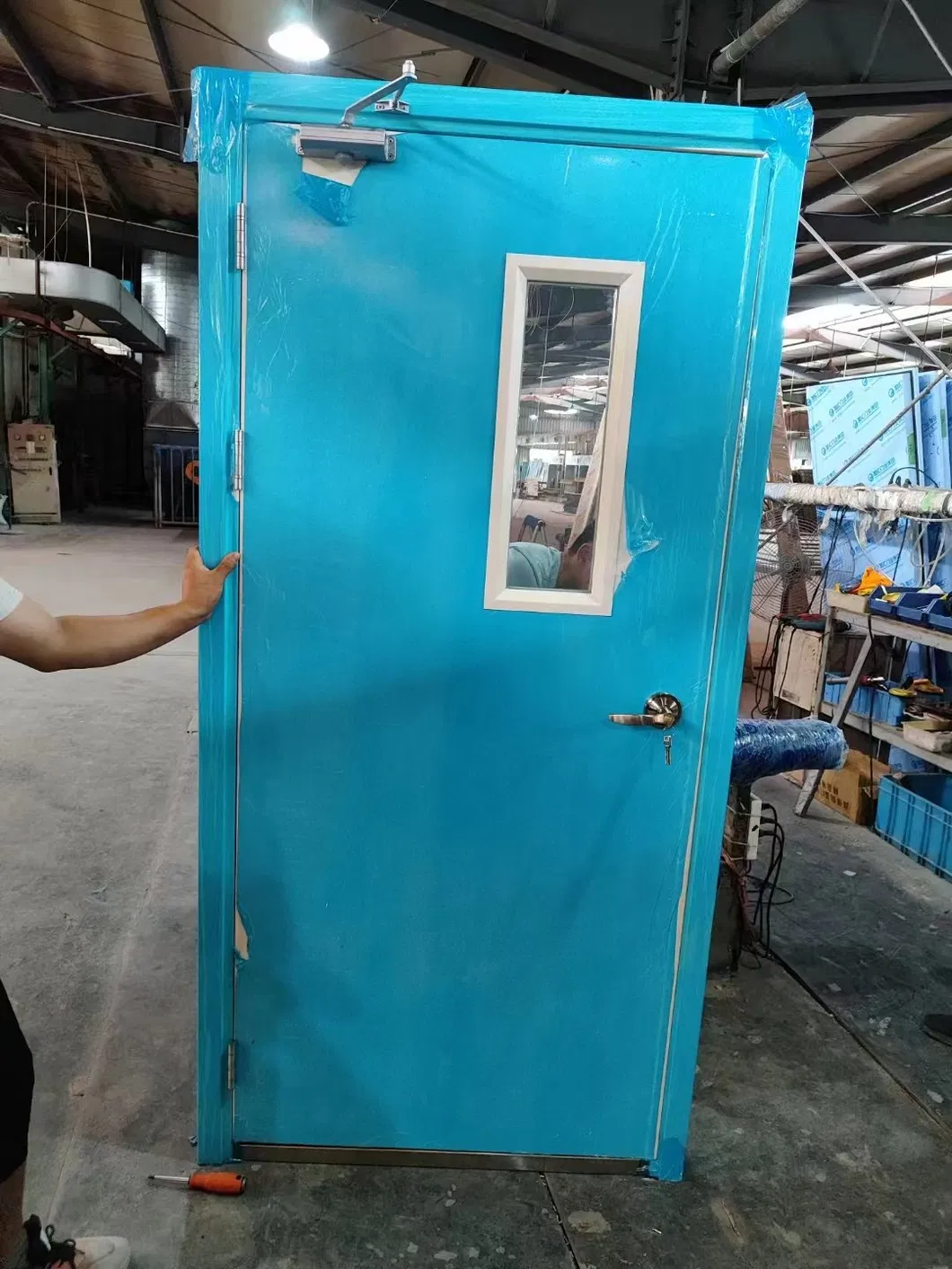

Hardware Detail 2

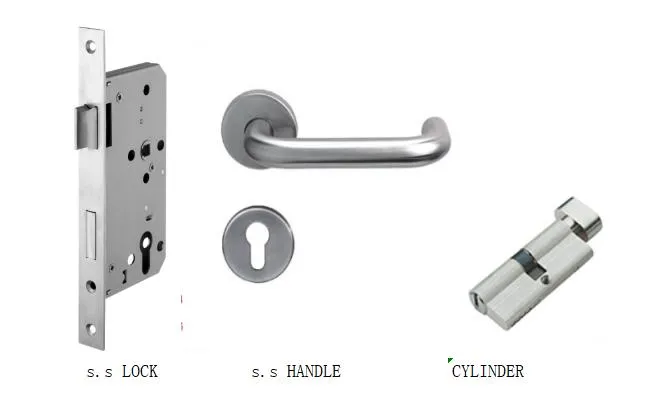

Factory Detail 1
📏

Product Parameters

Feature Specification
Door MaterialGalvanized Steel
SizeCustomized per drawing
Door Panel Thickness50mm or 2" inches
Frame DepthStandard 110mm or 4 1/4" inches
Door Leaf Sheet22 Ga.-18 Ga. (1.0/1.2 mm)
Door Frame Sheet16 Ga.-14 Ga. (1.5mm-2.0mm)
AccessoriesLock, handle, hinges, door closer, panic bar
Inner FillingPerlite or Insulated rockwool
Surface TreatmentPowder coated or heat transfer printing
CertificatesUL 10C, UL 10B, NFPA 252, CAN/ULC S104
📦

Packaging & Shipping

Packaging 1
Packaging 2
Shipping 1

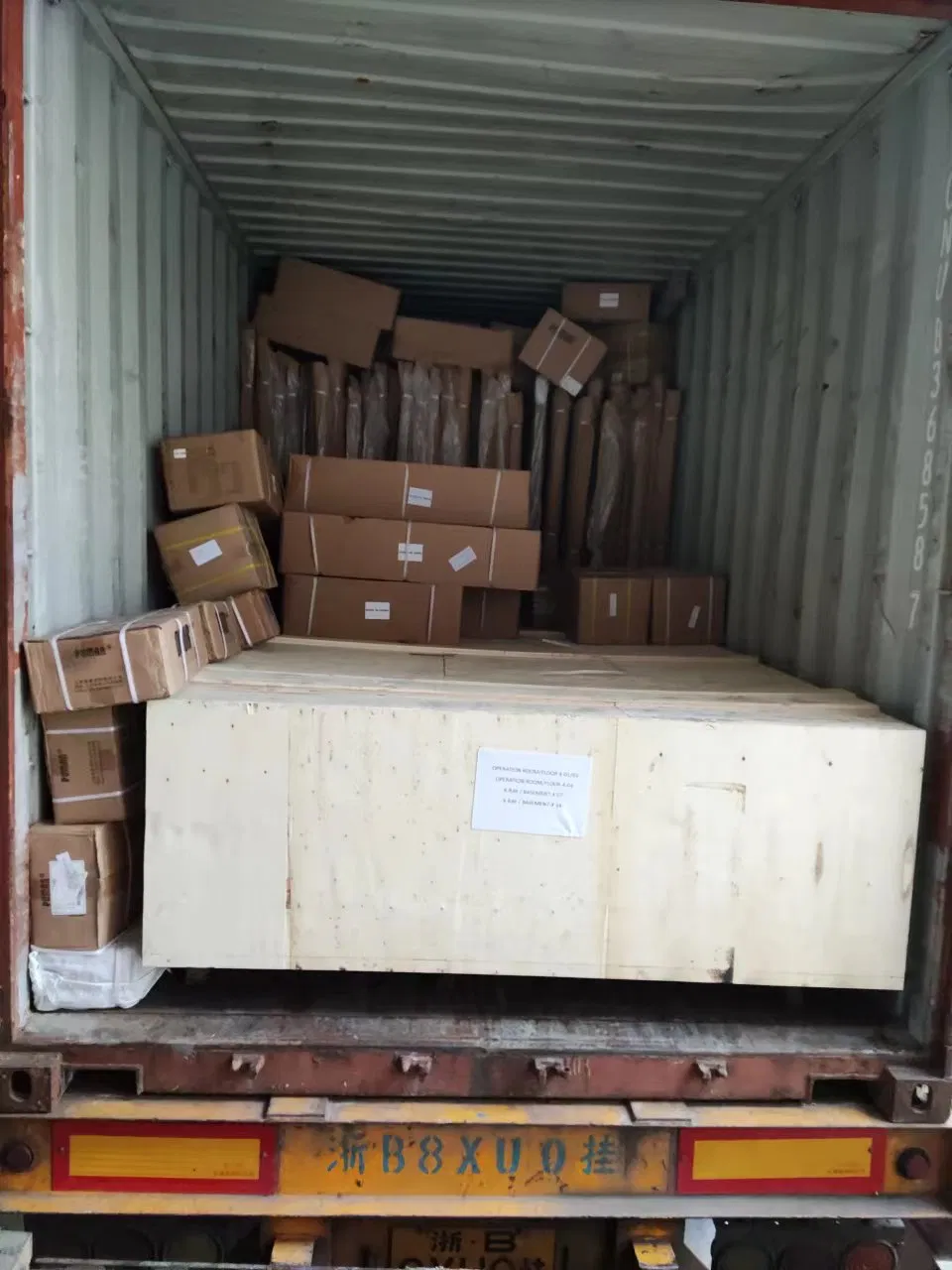

Shipping 2
🏭

Manufacturing Excellence

We utilize advanced manufacturing techniques and the highest quality materials to produce top-notch doors. Before production begins, we provide customers with CAD drawings to ensure every detail meets exact specifications. Our fire-rated steel doors are UL listed, rigorously tested to ensure performance, durability, and safety.

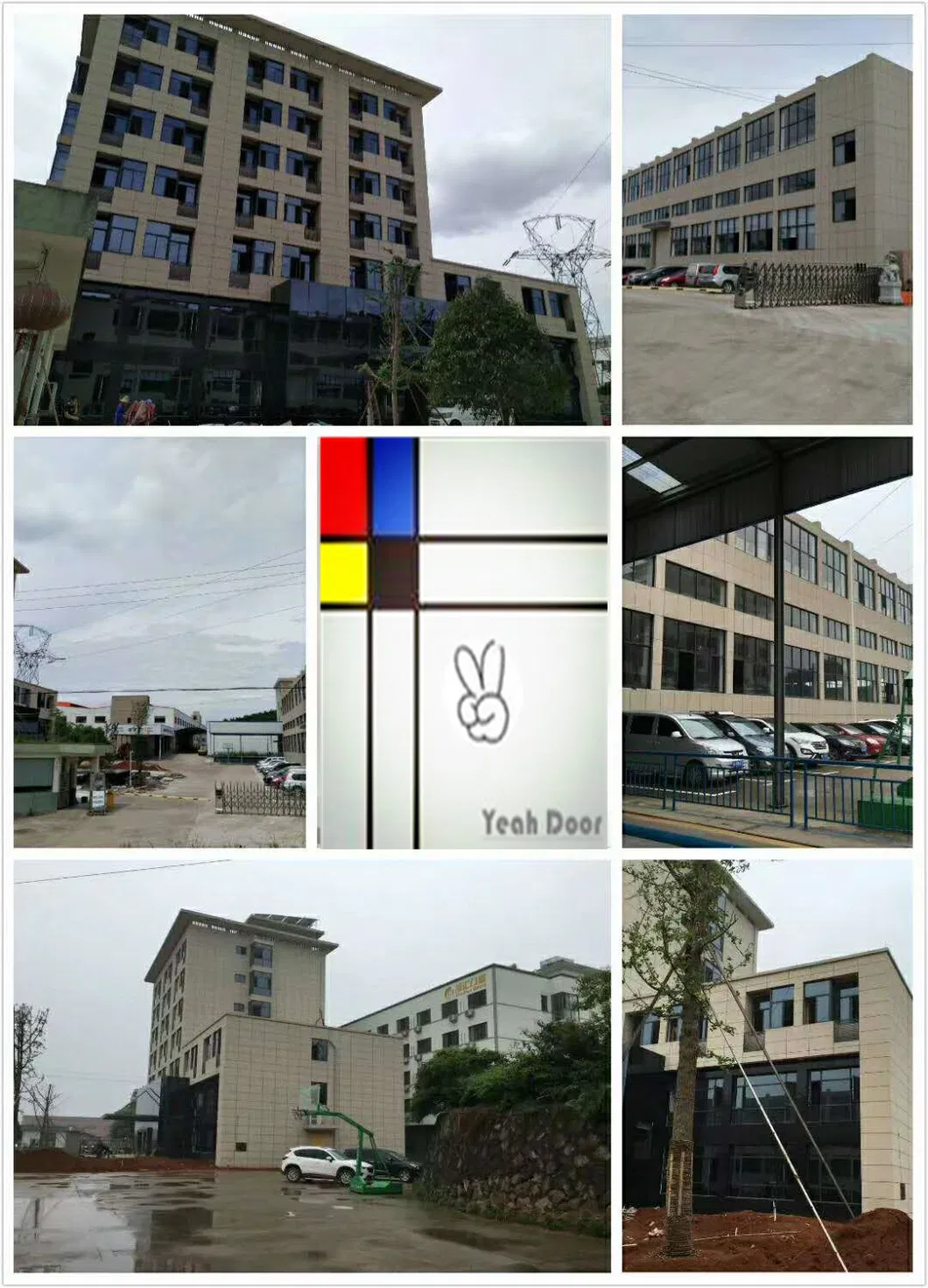

Production Facility

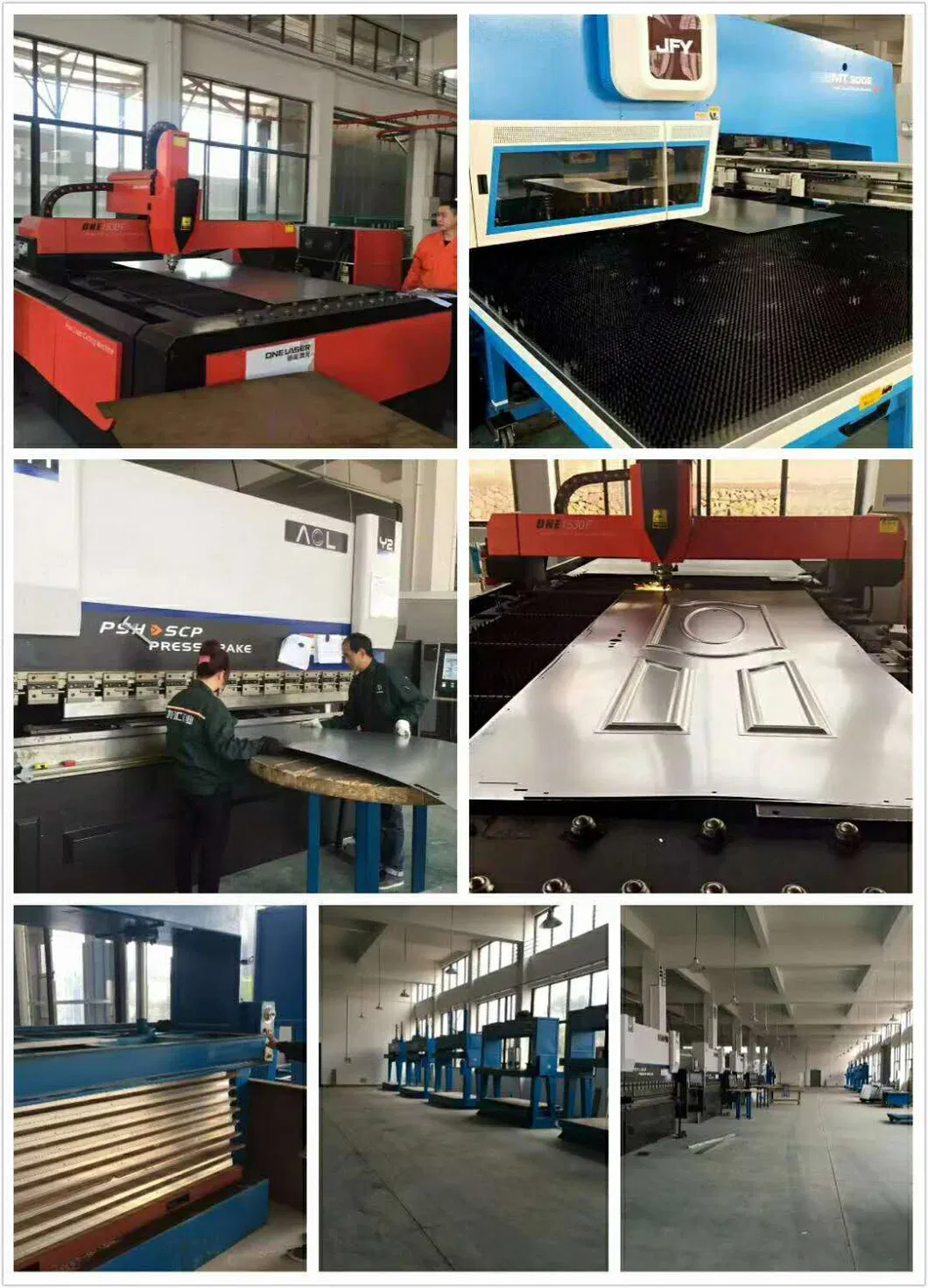

Quality Control

Frequently Asked Questions

1. What fire ratings are available for your steel doors?
Our fire-rated steel doors are available in 20, 45, 60, 90, and 180-minute ratings to comply with various building codes and safety requirements.
2. Are the doors UL certified?
Yes, our doors are UL Listed and have been tested according to standards such as UL 10C, UL 10B, and NFPA 252.
3. What kind of core material is used for insulation?
We use high-quality fire-resistant insulation materials, typically Perlite or insulated Rockwool, to prevent the spread of fire and smoke.
4. Can I customize the size and finish of the door?
Absolutely. Doors are customized per CAD drawings. We offer a variety of powder-coated colors and heat transfer printing options including rich wooden textures.
5. What accessories come with the fire door?
Standard accessories include high-quality hinges, handles, and locks. We also provide panic bars and door closers as requested for emergency exit compliance.
6. What is the standard warranty period?
We provide a 2-year warranty on our fire-rated steel doors, ensuring long-term reliability and performance.
