UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
1 / 5
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate
UL Fire Rated Steel Door with Wooden Color and S. S Plate

UL Fire Rated Steel Door with Wooden Color and S. S Plate

Customization: Available
After-sales Service: Online Technical Support
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
FD-2023022
Material
Steel
Style
Classic
Open Style
Swing
Fire Rated Time
120 Minutes
Function
Security, UL 2 Hours Fire Rated
Certificated
UL Listed
Surface Finishing
Finished

Product Description

UL (Underwriters Laboratories) Listed fire rated steel doors are doors that have been tested and certified by UL to meet specific standards for fire resistance and safety. These doors are designed to prevent the spread of fire and smoke for a specified amount of time, usually ranging from 20 minutes to 3 hours.

Key Features:
  • Steel Construction: Durable material providing protection against heat and smoke.
  • Fire-Resistant Materials: Cores made of mineral wool or gypsum for insulation.
  • Intumescent Seals: Expand when exposed to heat to form a smoke barrier.
  • Self-Closing Mechanism: Automatically closes upon sensing heat or smoke.
  • Secure Latching: Positive latching systems keep doors closed under pressure.
Fire Rated Steel Door

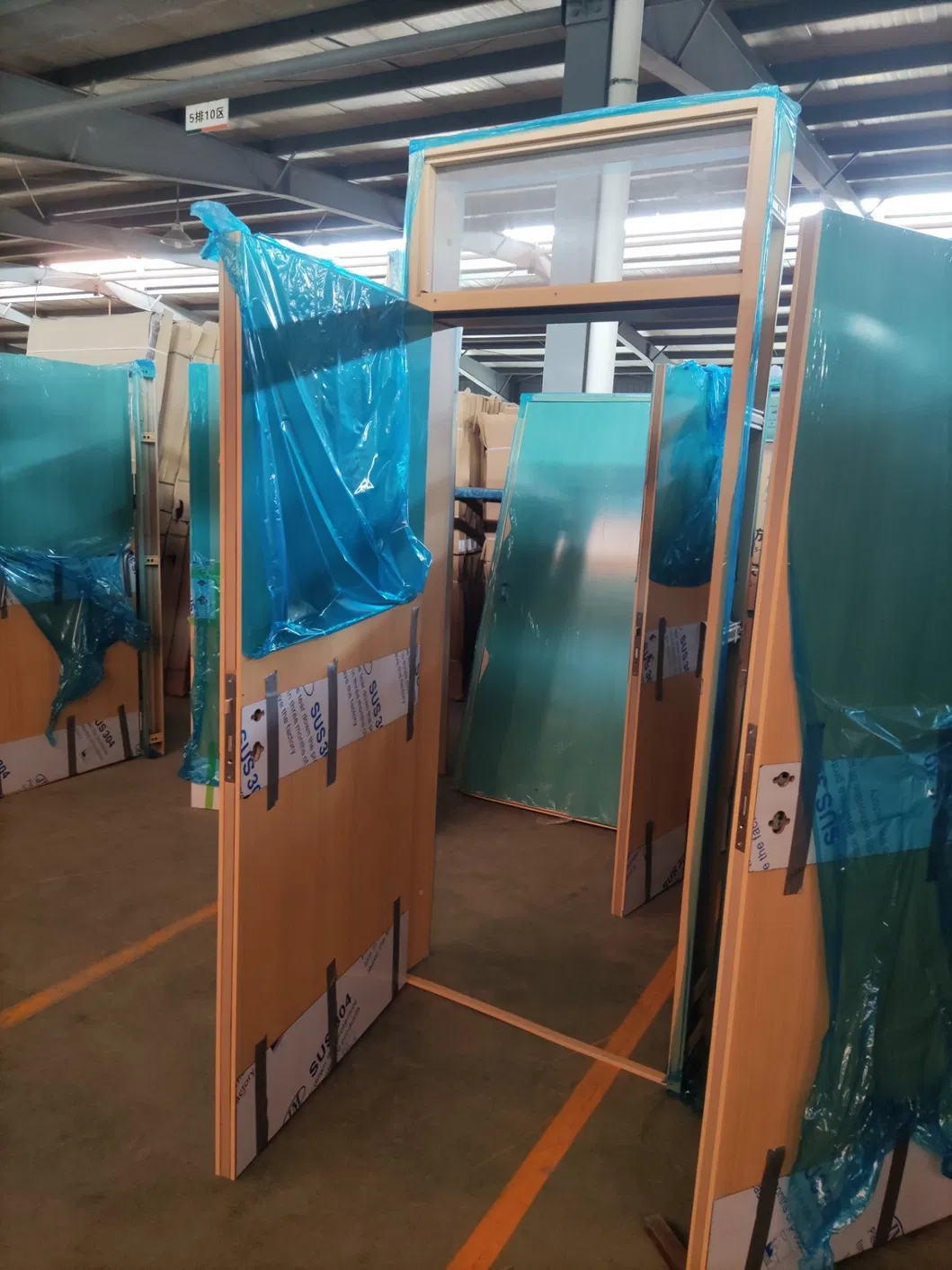

Fire Rated Steel Door Wood Color

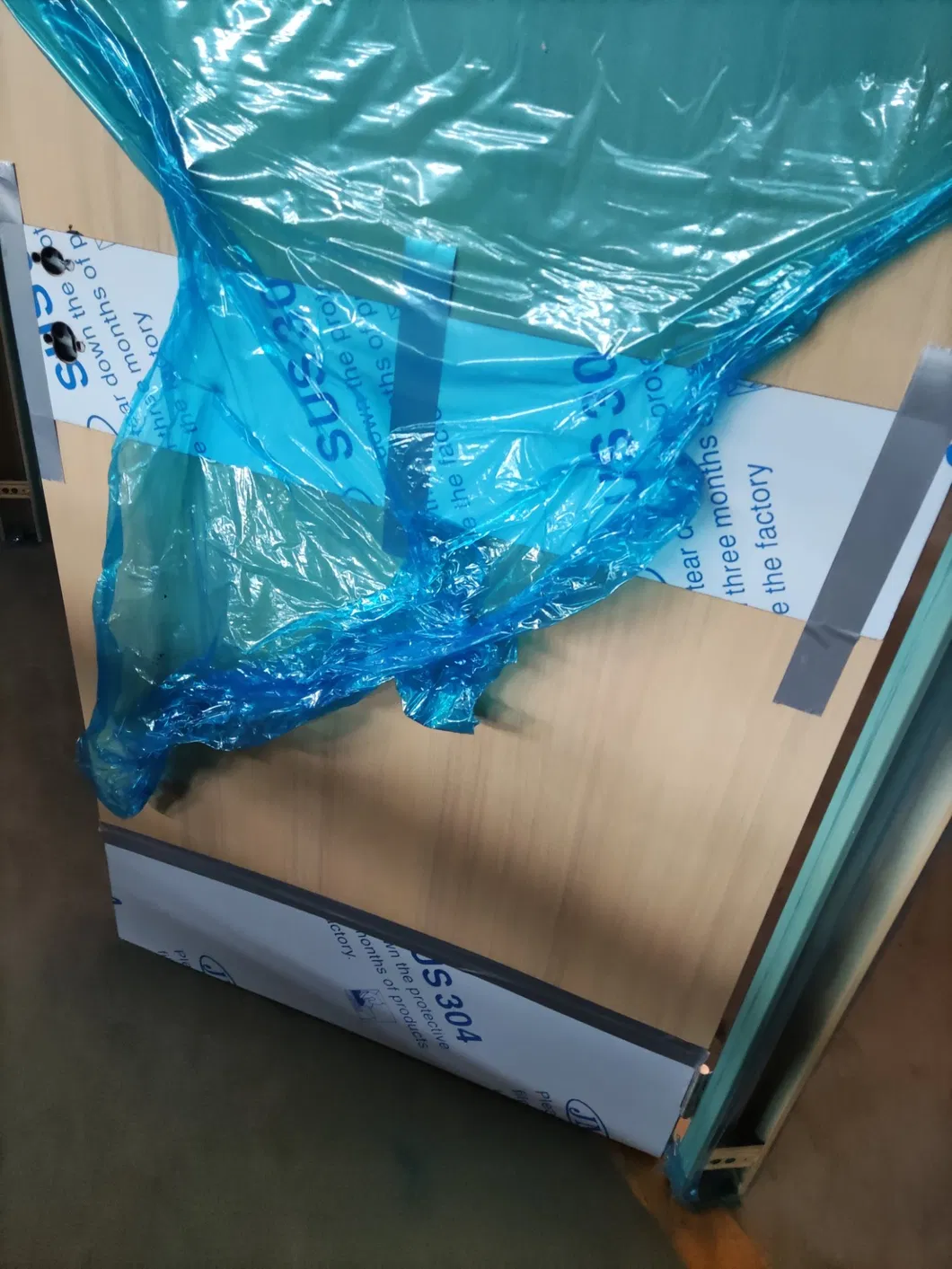

UL Fire Rated Door Details

Detailed Photos

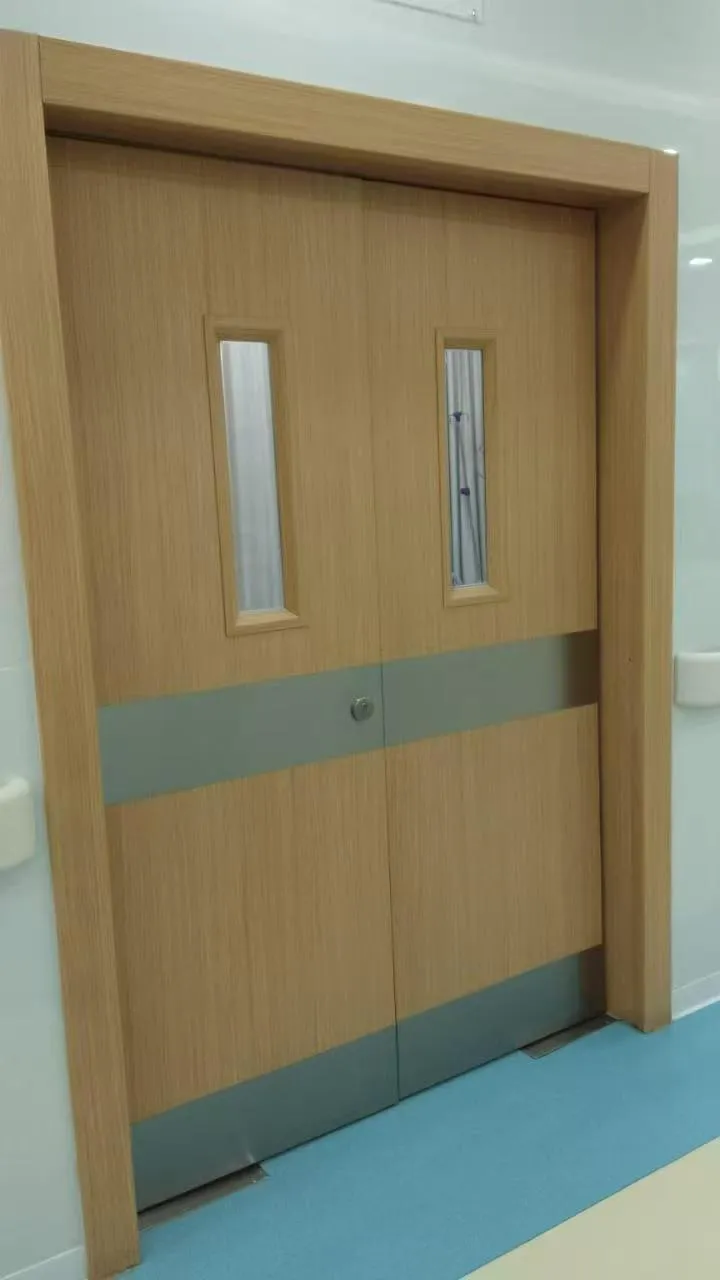

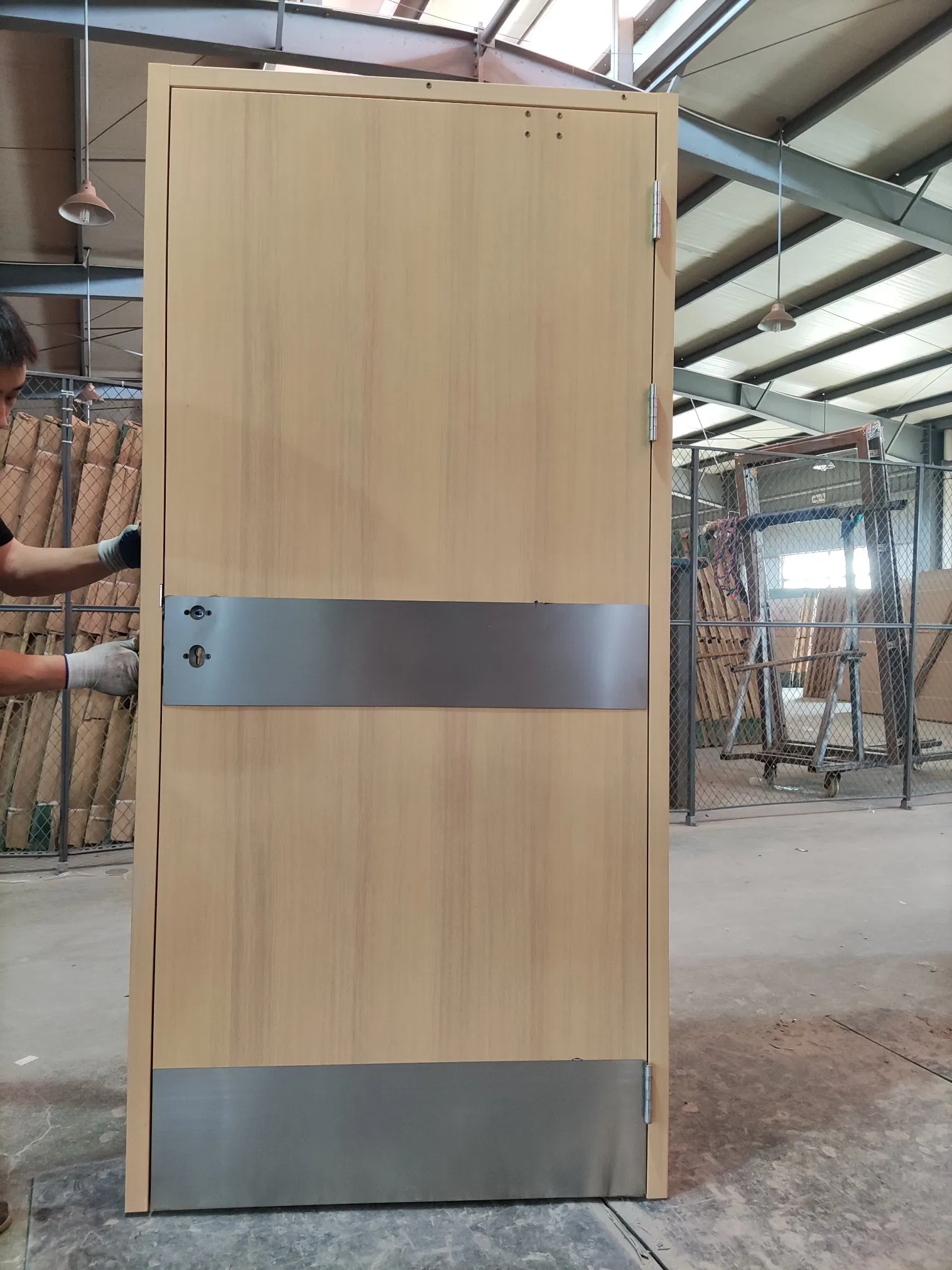

Detailed Door View

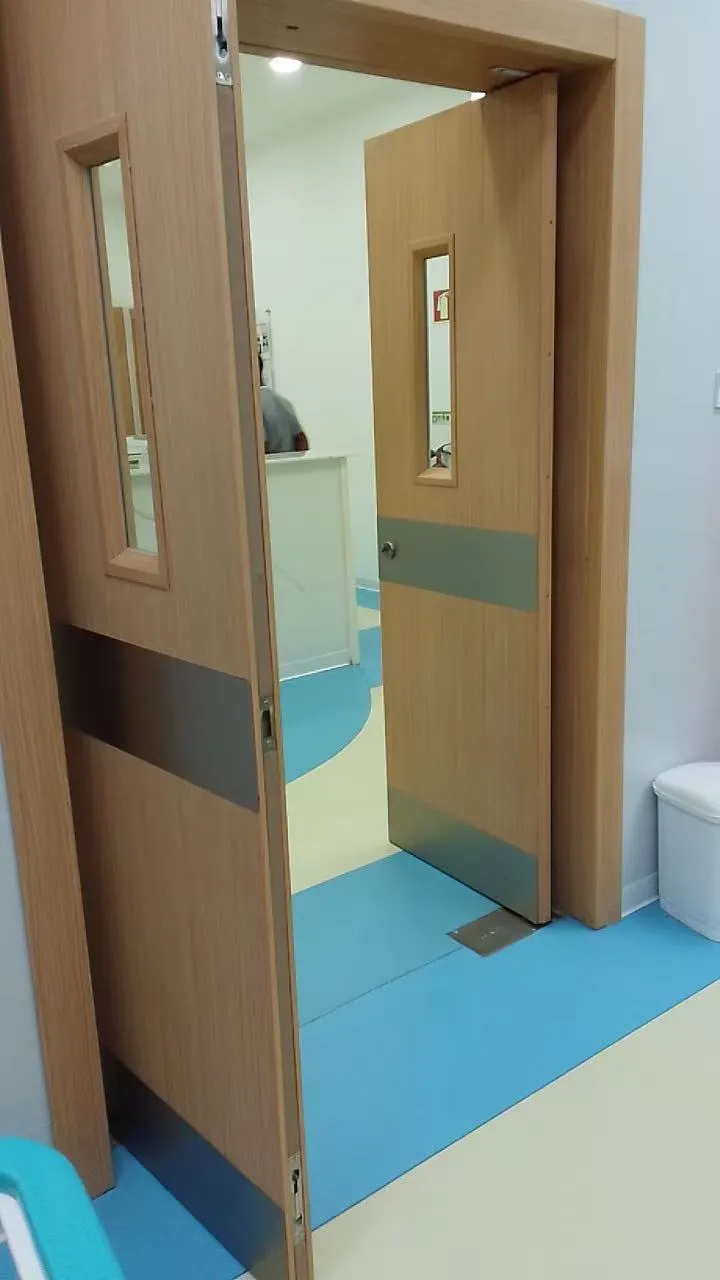

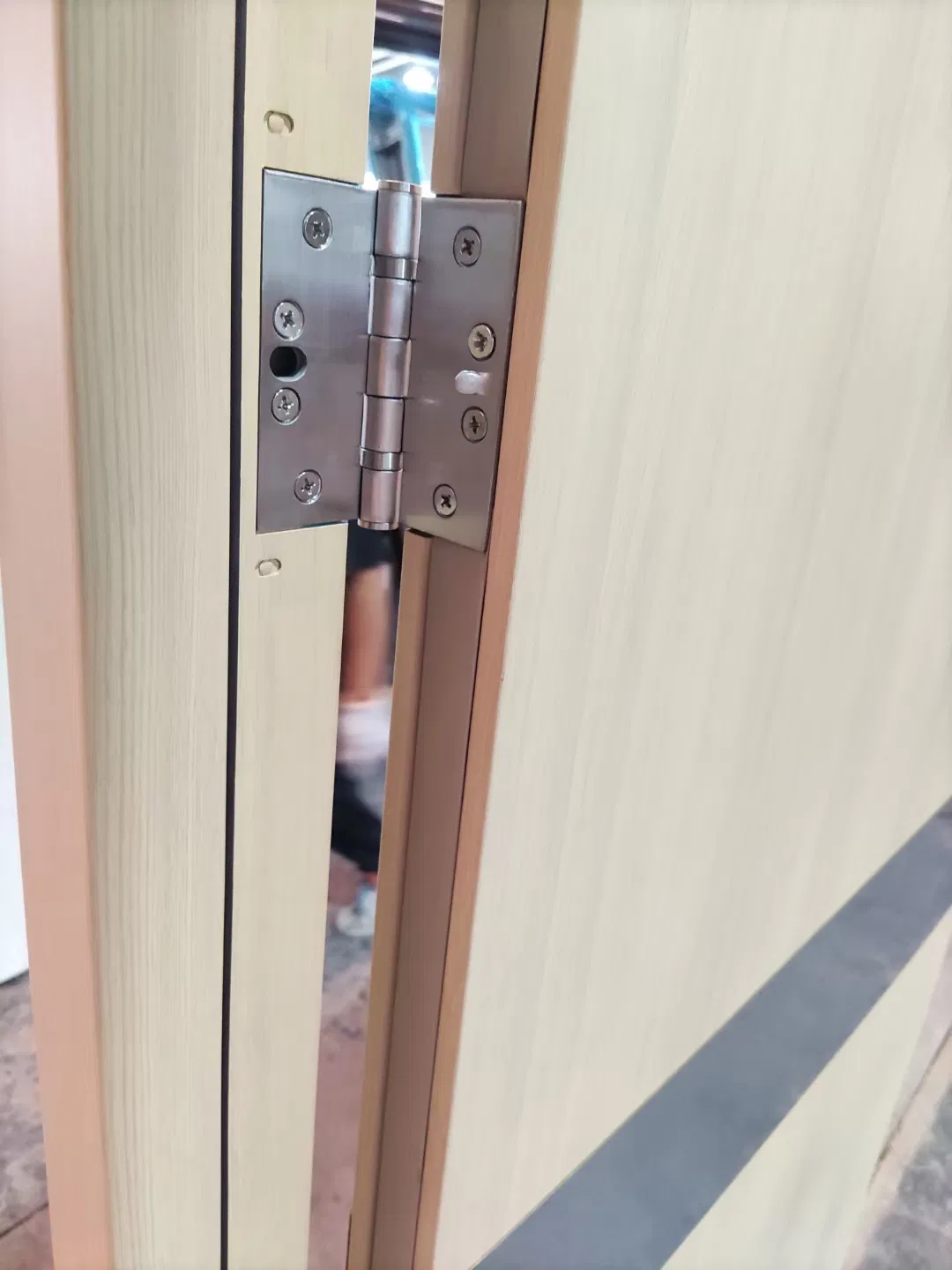

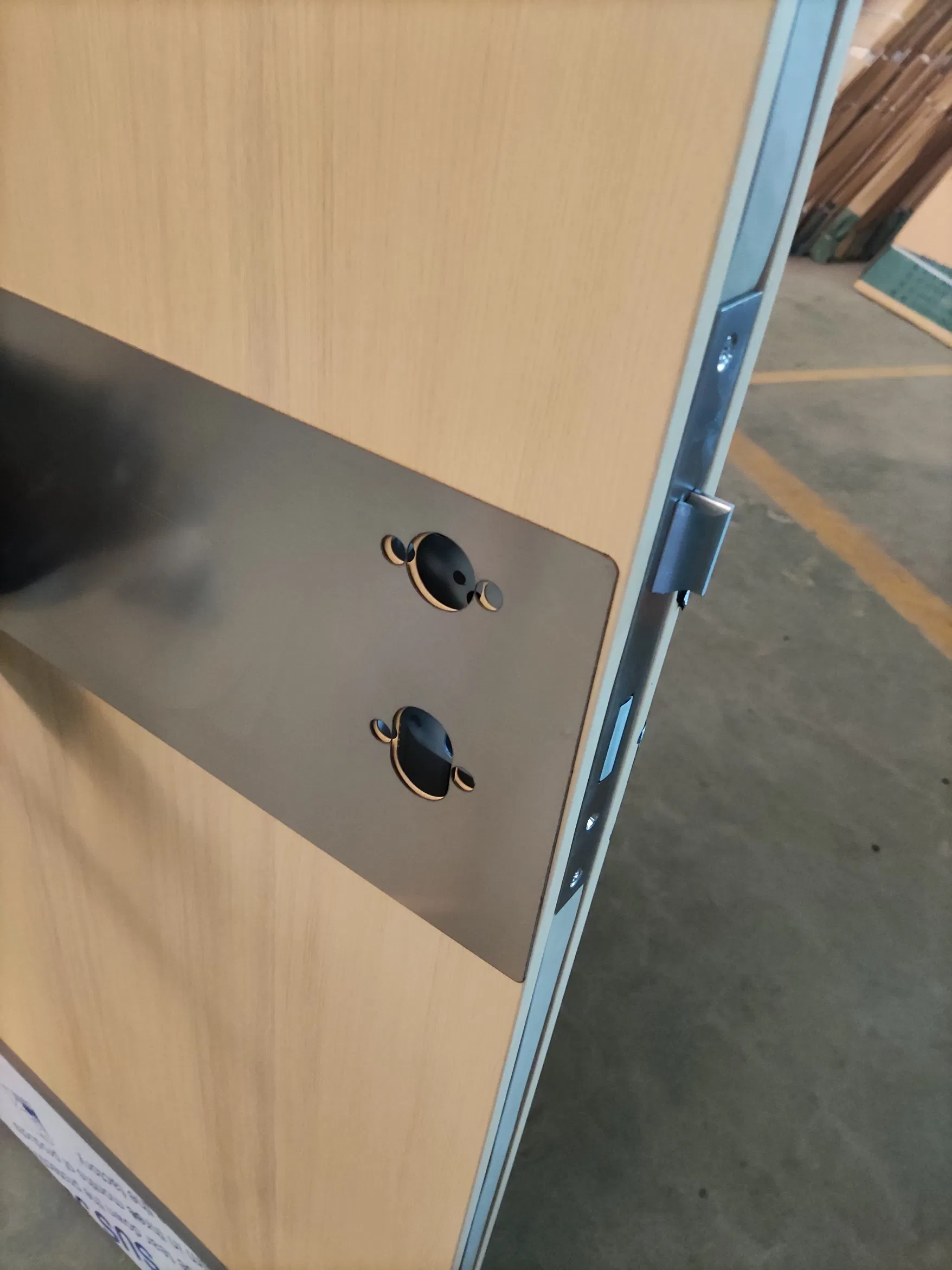

Door Hardware View

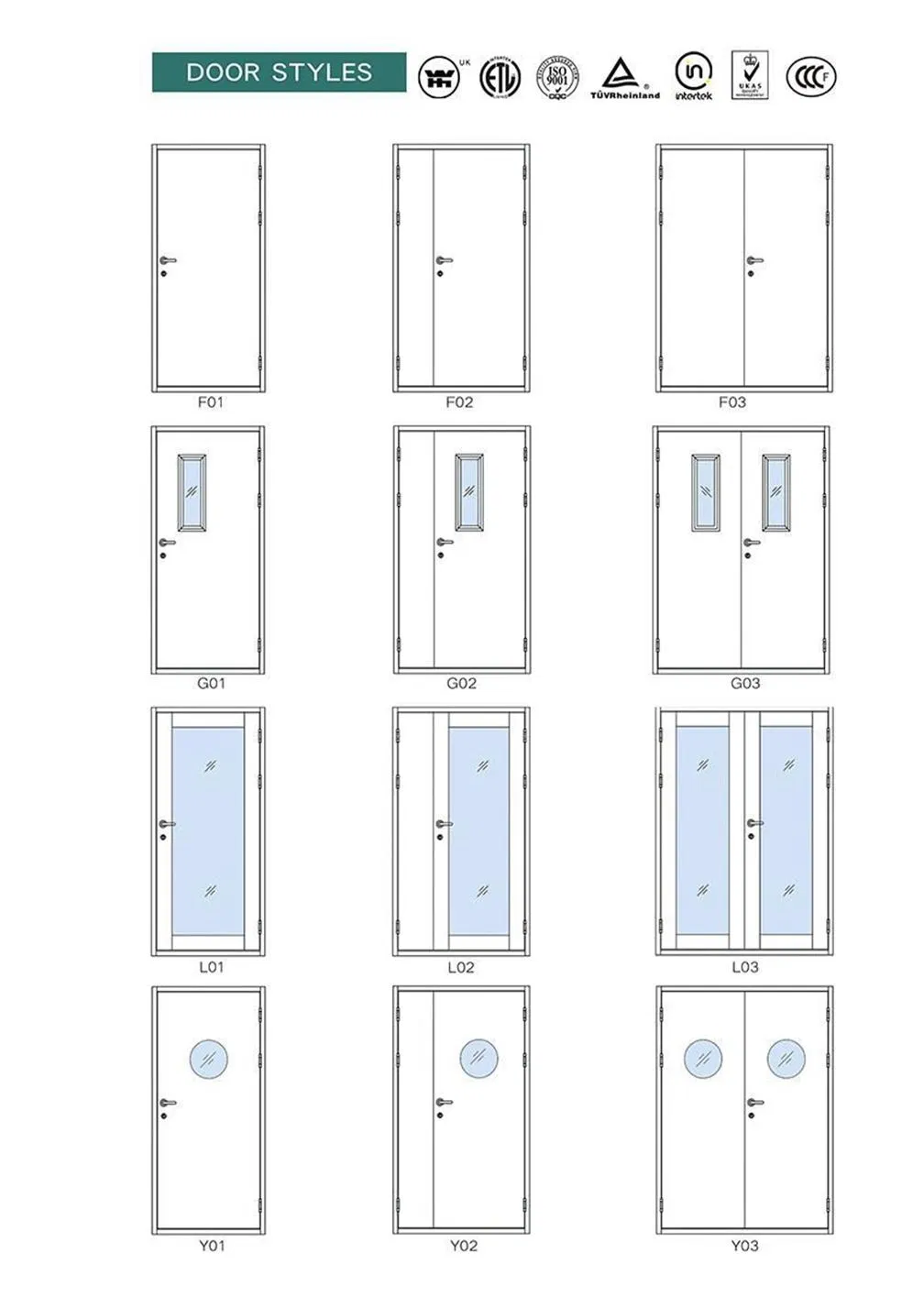

Installation Detail

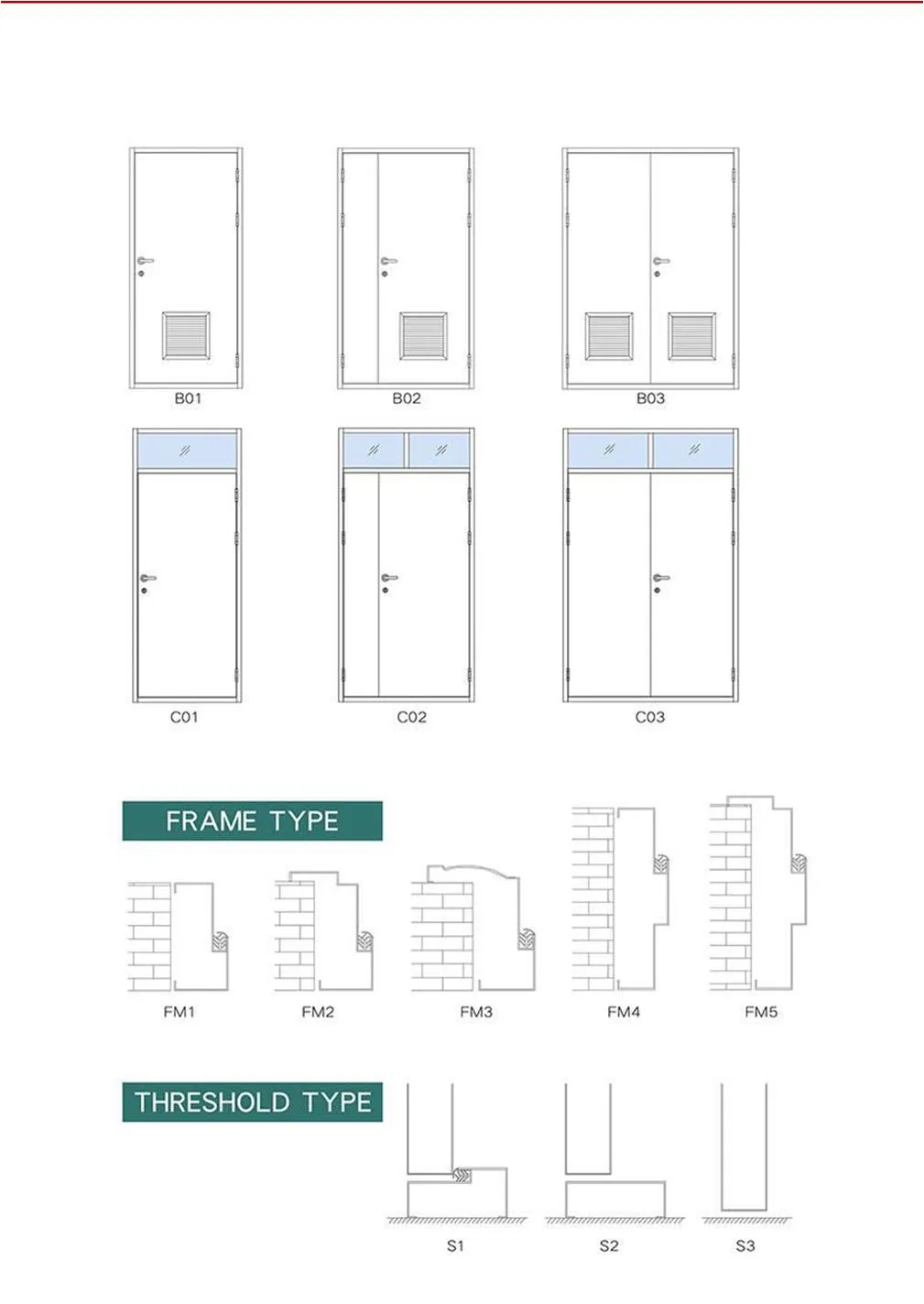

Steel Frame Detail

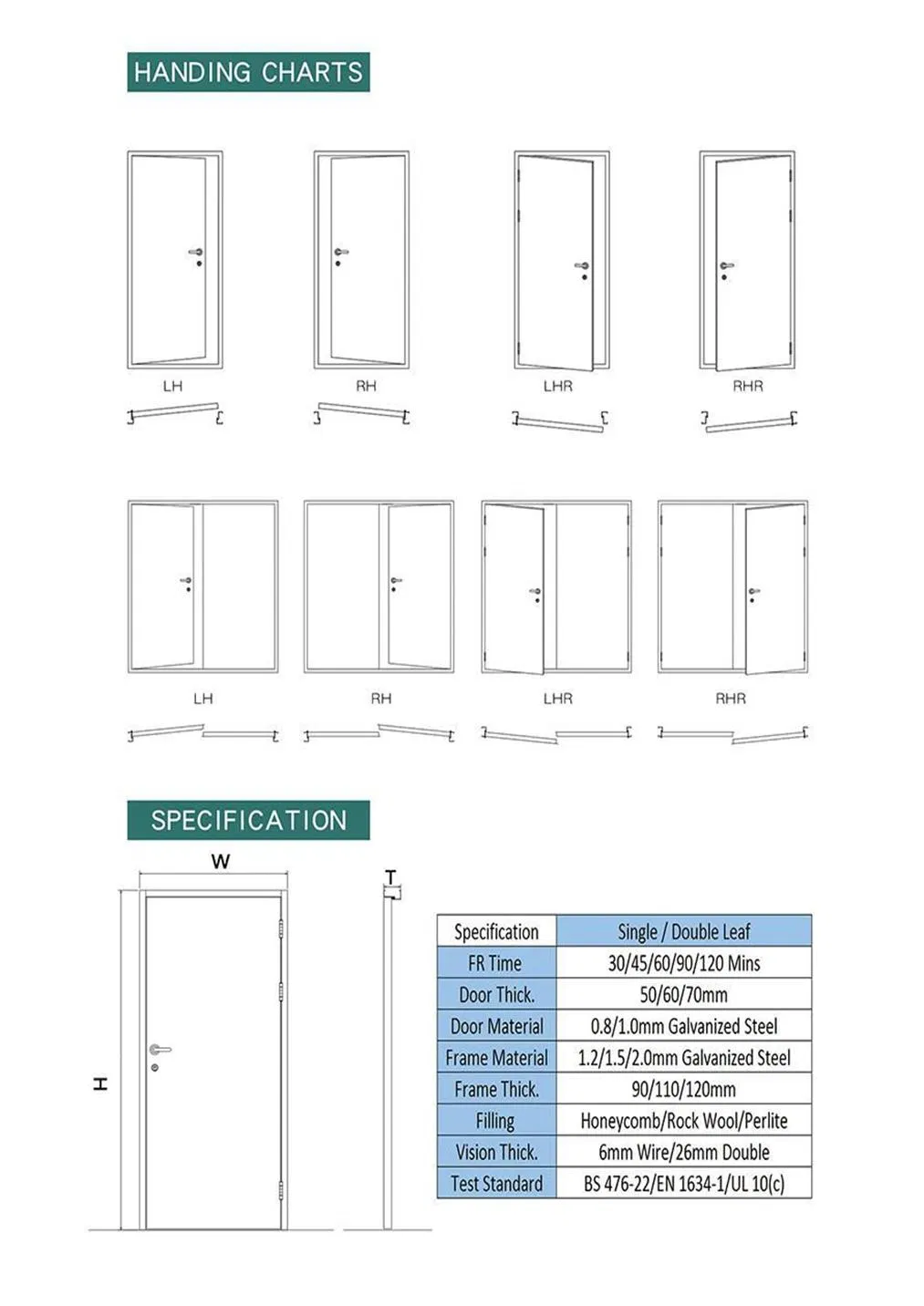

Fire Door Seal

Technical Parameters

Door MaterialGalvanized Steel
Door Panel Thickness50mm or 2" inches
Frame DepthStandard 110mm or 4 1/4" inches, or customized
Door Leaf Sheet22 Ga.-18 Ga. (1.0/1.2 mm)
Door Frame Sheet16 Ga.-14 Ga. (1.5mm-2.0mm)
Inner FillingPerlite or Insulated rockwool
Surface TreatmentPowder coated or heat transfer printing
CertificatesUL 10C, UL 10B, NFPA 252, CAN/ULC S104

Packaging & Shipping

Packaging Process
Shipping Preparation

Manufacturing Excellence

As a leading supplier of various industrial doors, the production facility utilizes the latest machinery and technology to produce high-end doors. Every project begins with detailed CAD drawings to ensure precision. Skilled craftsmen handle each stage of production, adhering to strict quality control procedures to meet international safety performance standards.

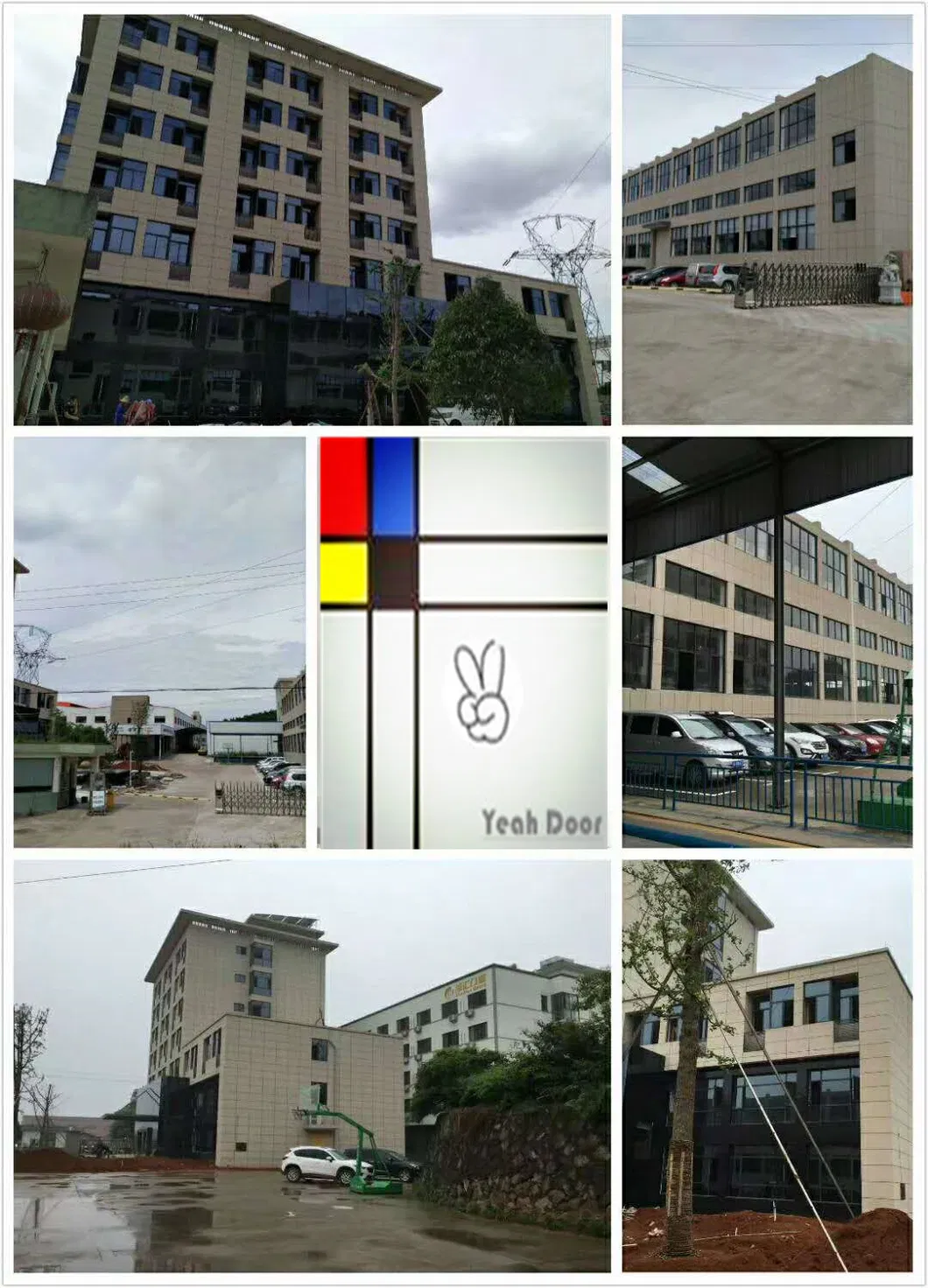

Factory Overview

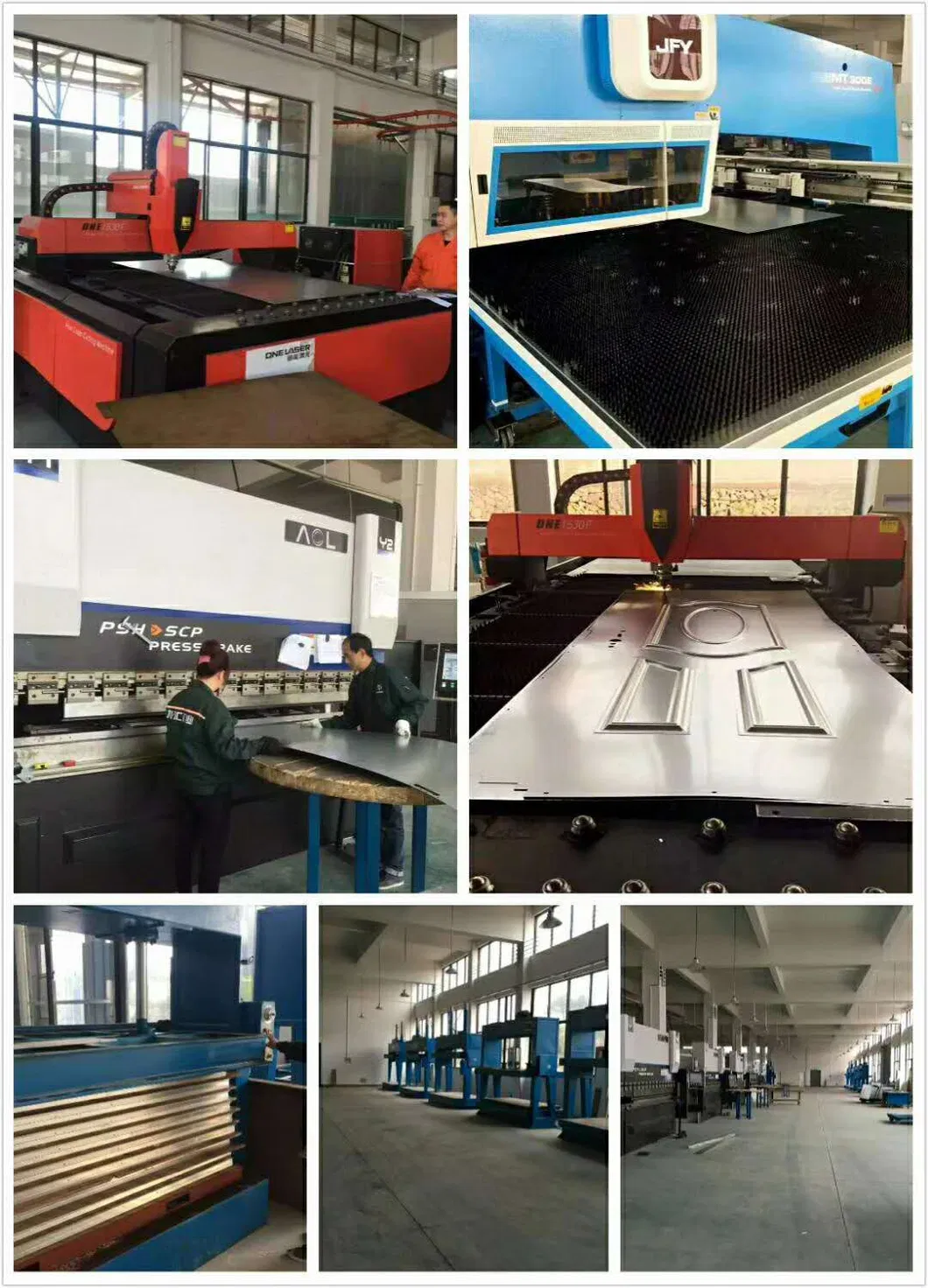

Production Line

Frequently Asked Questions

Q: What is the primary benefit of a UL Listed fire door?
A: UL Listed doors are rigorously tested to ensure they can withstand fire and smoke for a specific duration (up to 3 hours), providing critical safety time for evacuation and building protection.
Q: Can these doors be customized for specific project sizes?
A: Yes, we provide full customization based on your specific CAD drawings and project requirements, including frame depth and panel dimensions.
Q: What kind of filling material is used inside the steel doors?
A: We typically use high-grade Perlite or insulated Rockwool to provide superior fire resistance and thermal insulation.
Q: Do the doors come with a self-closing feature?
A: Yes, our fire-rated doors are designed to be self-closing and include positive latching mechanisms to ensure they remain securely closed during a fire event.
Q: Are there different finishes available for these steel doors?
A: We offer several surface treatments, including durable powder coatings and heat transfer printing that can mimic rich wooden textures.
Q: What hardware can be included with the fire doors?
A: We provide a full range of accessories including locks, handles, hinges, door closers, and panic bars as per your project specifications.
